Front Seatback Heater (w/ Seat Heater System)

SEAT: FRONT SEATBACK HEATER (w/ Seat Heater System): INSPECTION

1. INSPECT FRONT SEATBACK HEATER ASSEMBLY LH





(a) Check the seatback heater.

(1) Measure the resistance according to the value(s) in the table below.

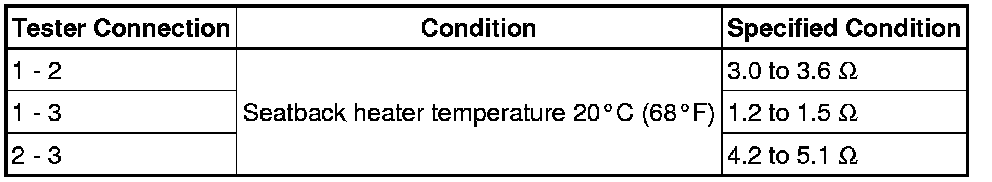

Standard Resistance:





If the result is not as specified, replace the front seatback heater assembly.

Text in Illustration





2. INSPECT FRONT SEATBACK HEATER ASSEMBLY RH





(a) Check the seatback heater.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the front seatback heater assembly.

Text in Illustration
