Front Seat Cushion Heater (w/ Seat Heater System)

SEAT: FRONT SEAT CUSHION HEATER (w/ Seat Heater System): INSPECTION

1. INSPECT FRONT SEAT CUSHION HEATER ASSEMBLY LH





(a) Check the seat cushion heater.

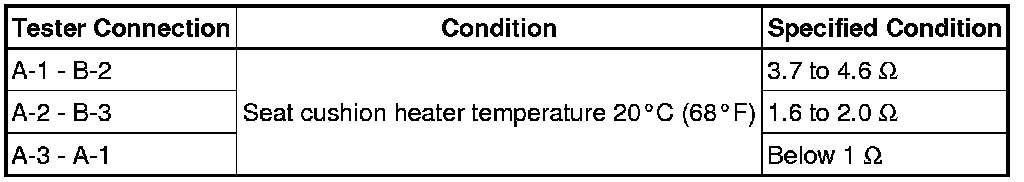

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the front seat cushion heater assembly.

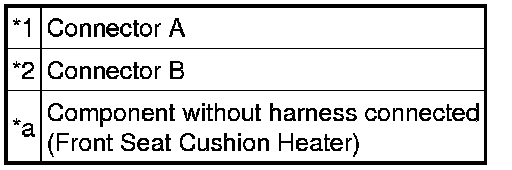

Text in Illustration

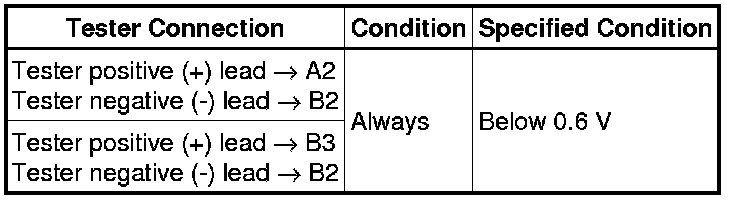

(2) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





If the result is not as specified, replace the front seat cushion heater assembly.

HINT
As the circuit has a diode, perform the measurement with the tester in diode mode.

2. INSPECT FRONT SEAT CUSHION HEATER ASSEMBLY RH





(a) Check the seat cushion heater.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the front seat cushion heater assembly.

Text in Illustration





(2) Measure the voltage according to the value(s) in the table below.

Standard Voltage:





If the result is not as specified, replace the front seat cushion heater assembly.

HINT
As the circuit has a diode, perform the measurement with the tester in diode mode.
