SEAT: FRONT SEAT CUSHION HEATER (w/ Seat Heater System): INSTALLATION

CAUTION:
Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT
* Use the same procedure for the RH and LH sides.
* The procedure listed below is for the LH side.

1. INSTALL FRONT SEAT CUSHION HEATER ASSEMBLY LH





(a) Set the seat cushion heater in place with the name stamp side facing the seat cushion cover.

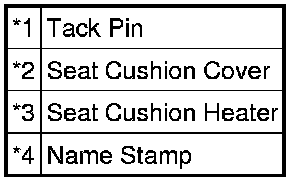

Text in Illustration





(b) Install the seat cushion heater with new tack pins.

2. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER Reassembly

3. INSTALL FRONT SEAT CUSHION COVER WITH PAD Reassembly

4. INSTALL FRONT SEAT INNER BELT ASSEMBLY LH

(a) for Driver Side:

Installation

(b) for Front Passenger Side:

Installation

5. INSTALL FRONT SEAT INNER CUSHION SHIELD LH Reassembly

6. INSTALL FRONT SEAT INNER CUSHION SHIELD RH (for Front Passenger Side) Reassembly

7. INSTALL FRONT SEAT CUSHION SHIELD LH Reassembly

8. INSTALL FRONT SEAT CUSHION SHIELD RH (for Front Passenger Side) Reassembly

9. INSTALL VERTICAL ADJUSTING HANDLE LH (for Driver Side) Reassembly

10. INSTALL RECLINING ADJUSTER RELEASE HANDLE LH Reassembly

11. INSTALL FRONT SEAT ASSEMBLY

Installation
