Seat Temperature Element: Description and Operation

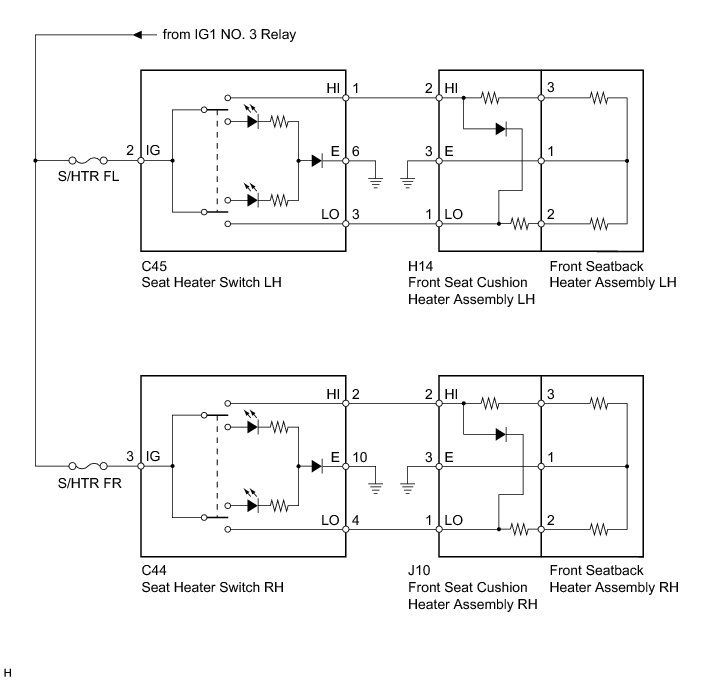

SEAT: SEAT HEATER SYSTEM: SYSTEM DIAGRAM










SYSTEM DESCRIPTION

1. GENERAL

(a) By operating the seat heater switch, which is located in the console, the seat heater temperature can be controlled within the range of 30 to 40°C (86 to 104°F).

(b) Whether the seat heater is on or off can be determined by checking if the seat heater switch indicator light is on or off.

HINT
* When HI is turned on, both the seatback heater and seat cushion heater become warm.
* When LO is turned on, only the seatback heater becomes warm.
