Component Tests and General Diagnostics

SLIDING ROOF / CONVERTIBLE: SLIDING ROOF SYSTEM: Sliding Roof ECU Power Source Circuit
- Sliding Roof ECU Power Source Circuit

DESCRIPTION

If the sliding function and tilt function do not operate, there may be a malfunction in the sliding roof drive gear sub-assembly (sliding roof ECU) power source circuit.

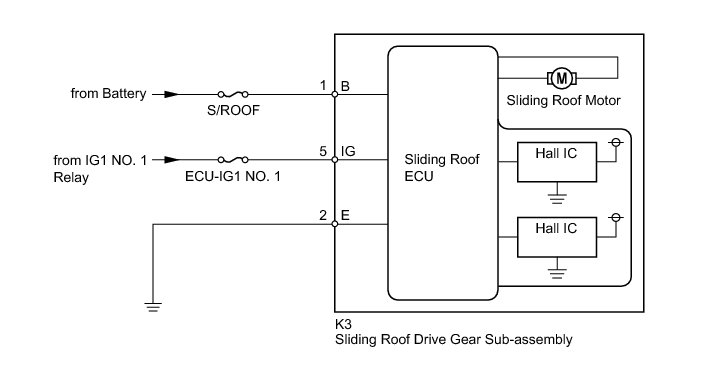

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
* When the sliding roof drive gear sub-assembly (sliding roof ECU) is removed and reinstalled or replaced, the sliding roof drive gear sub-assembly (sliding roof ECU) must be initialized Programming and Relearning.
* Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (SLIDING ROOF ECU - BATTERY AND BODY GROUND)

(a) Disconnect the K3 ECU connector.





(b) Measure the resistance and voltage according to the value(s) in the table below.

Standard Resistance:

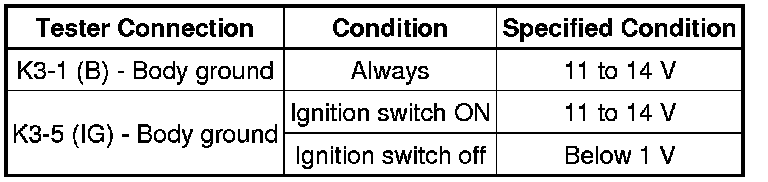

Standard Voltage










Text in Illustration





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table
