Removal

MIRROR (INT): INNER REAR VIEW MIRROR: REMOVAL

1. REMOVE INNER REAR VIEW MIRROR ASSEMBLY





(a) Detach the 2 claws and disconnect the inner rear view mirror cover.

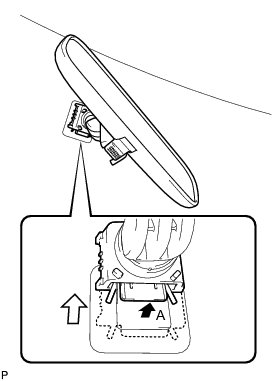

(b) While holding the claw in the direction of the black arrow labeled A, slide the mirror in the direction of the white arrow and remove it.
