Power Door Lock Actuator: Testing and Inspection

DOOR LOCK: FRONT DOOR LOCK: INSPECTION

1. INSPECT FRONT DOOR LOCK ASSEMBLY LH





Text in Illustration





(a) Check the door lock motor operation.

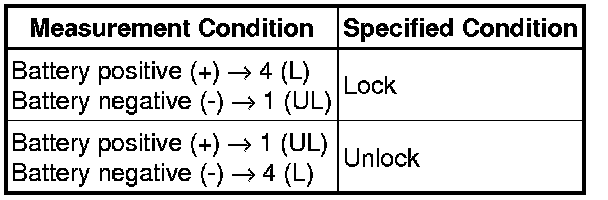

(1) Apply battery voltage to the motor connector and check the operation of the front door lock motor.

OK:





* If the result is not as specified, replace the front door lock assembly.

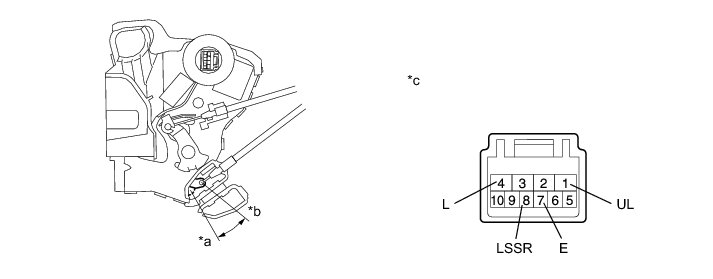

(b) Check the detection switch.

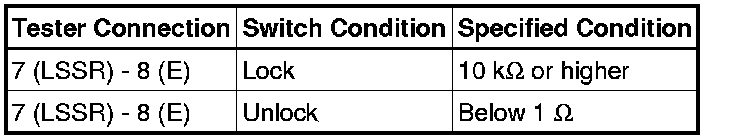

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





* If the result is not as specified, replace the front door lock assembly.

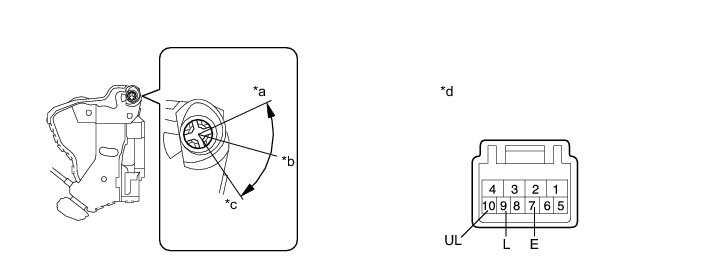

(c) Check the door lock and unlock switch.

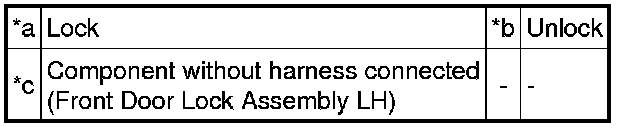

Text in Illustration

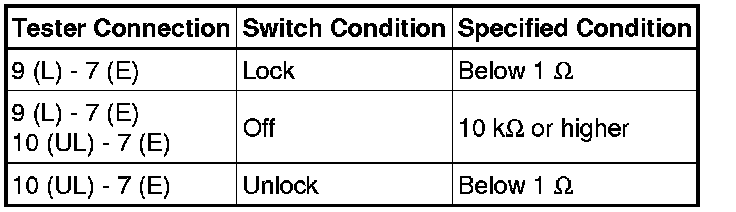

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





* If the result is not as specified, replace the front door lock assembly.

2. INSPECT FRONT DOOR LOCK ASSEMBLY RH

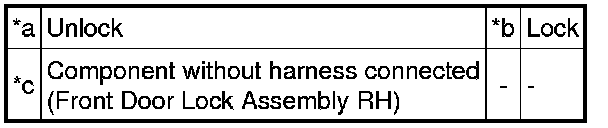

Text in Illustration





(a) Check the door lock motor operation.

(1) Apply battery voltage to the door lock motor connector and check the operation of the door lock motor.

OK:





* If the result is not as specified, replace the front door lock assembly.

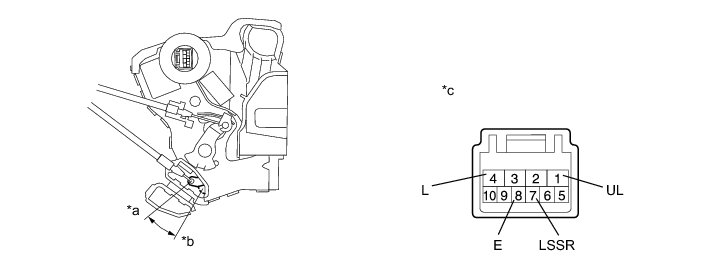

(b) Check the detection switch.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





* If the result is not as specified, replace the front door lock assembly.
