Wireless Door Lock Control System (w/ Smart Key System)
Wireless Door Lock Control System (w/ Smart Key System)

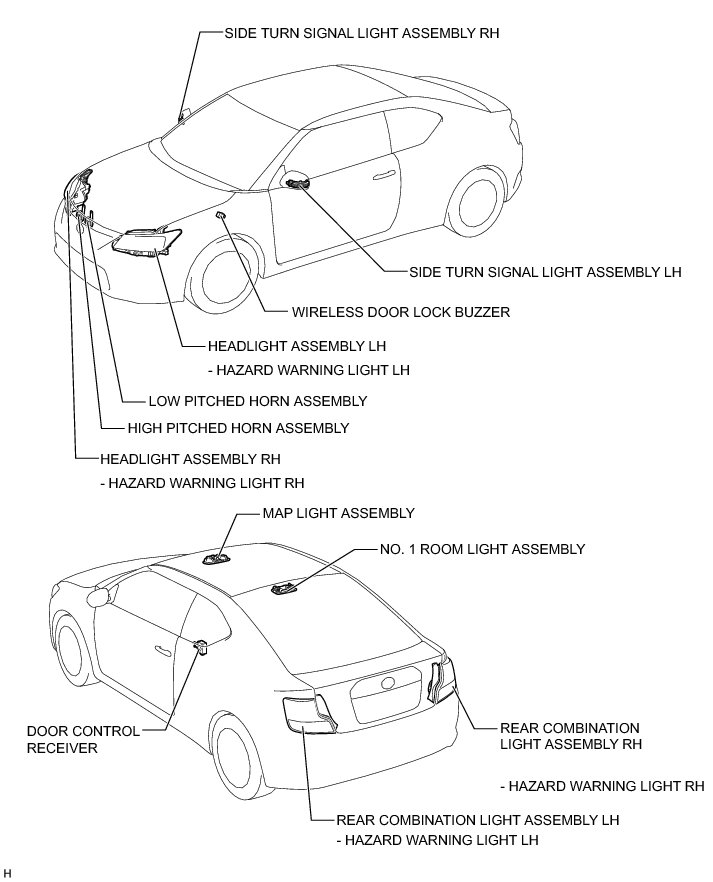

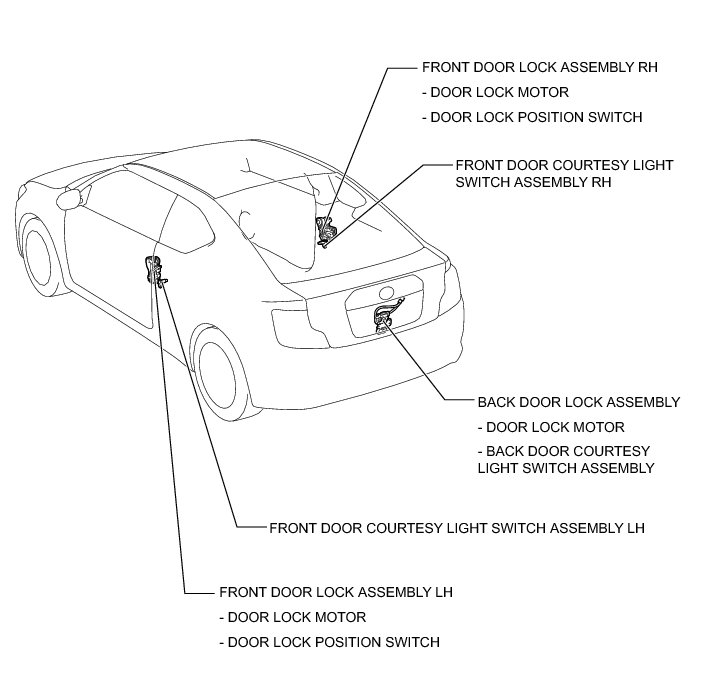

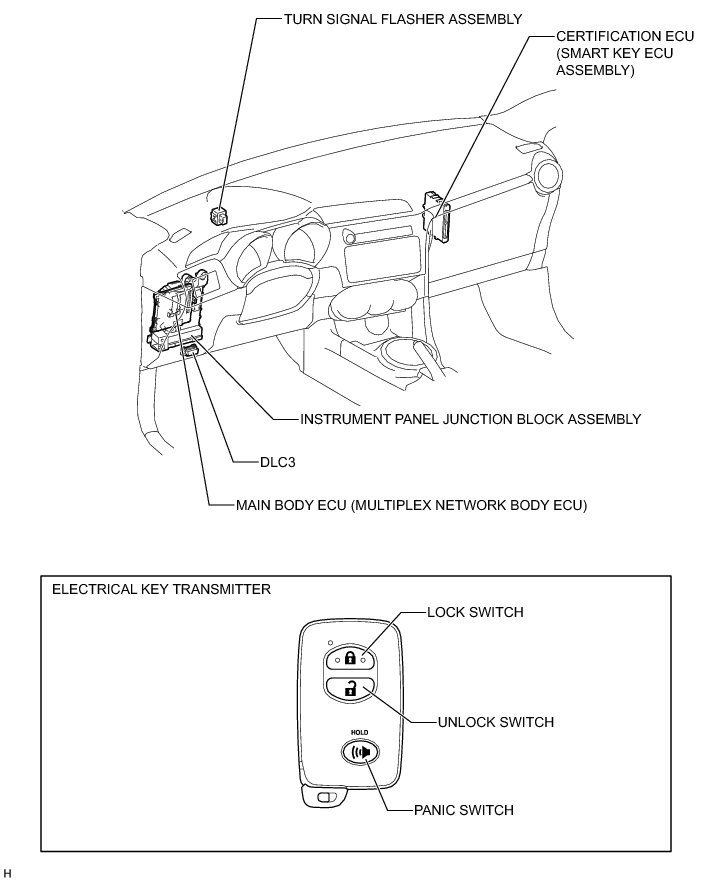

DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM (w/ Smart Key System): PARTS LOCATION
