Disassembly

INTERIOR PANELS / TRIM: ROOF HEADLINING: DISASSEMBLY

1. REMOVE NO. 4 ROOF SILENCER PAD (w/o Sliding Roof)





(a) Remove the 2 No. 4 roof silencer pads.

2. REMOVE REAR ROOF SILENCER PAD (w/o Sliding Roof)





(a) Remove the rear roof silencer pad.

3. REMOVE NO. 1 ROOF PANEL PAD (w/o Sliding Roof)





HINT
Use the same procedure for the other No. 1 roof panel pad.

(a) Remove the No. 1 roof panel pad.

4. REMOVE ROOF HEADLINING PAD LH (w/o Sliding Roof)





(a) Remove the roof headlining pad.

5. REMOVE ROOF HEADLINING PAD RH (w/o Sliding Roof)

HINT
Use the same procedure described for the LH side.

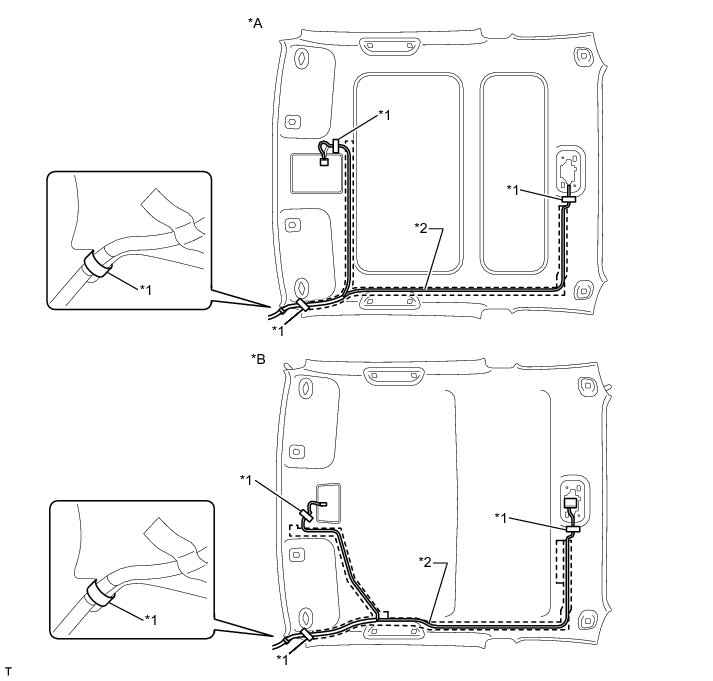

6. REMOVE NO. 1 ROOF WIRE

(a) Remove each piece of tape and the No. 1 roof wire from the roof headlining.

(b) Remove the butyl tape remaining on the roof headlining.





Text in Illustration





7. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY Removal
