Removal

EXTERIOR PANELS / TRIM: NAME PLATE: REMOVAL

1. REMOVE SYMBOL EMBLEM

HINT
When removing the symbol emblem, heat the vehicle body and symbol emblem using a heat light.

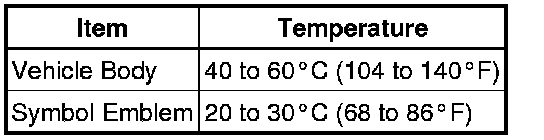

Standard:





NOTICE:
Do not heat the vehicle body or symbol emblem excessively.





(a) Put protective tape around the symbol emblem.

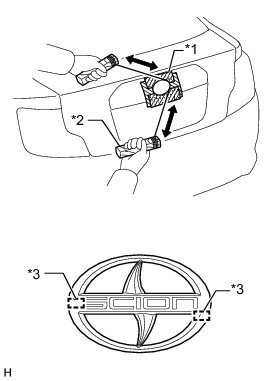

(b) Insert piano wire between the vehicle body and symbol emblem.

HINT
Be careful of the boss positions.

(c) Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.

(d) Pull the piano wire and scrape off the double-sided tape that holds the symbol emblem to the vehicle body.

NOTICE:
Be careful not to damage the vehicle body.

(e) Remove the symbol emblem.

Text in Illustration





2. REMOVE NO. 5 BACK DOOR NAME PLATE

HINT
When removing the No. 5 back door name plate, heat the vehicle body and No. 5 back door name plate using a heat light.

Standard:





NOTICE:
Do not heat the vehicle body or No. 5 back door name plate excessively.





(a) Put protective tape around the No. 5 back door name plate.

(b) Insert piano wire between the vehicle body and No. 5 back door name plate.

(c) Tie objects that can serve as handles (for example, wooden blocks) to the piano wire ends.

(d) Pull the piano wire and scrape off the double-sided tape that holds the No. 5 back door name plate to the vehicle body.

NOTICE:
Be careful not to damage the vehicle body.

(e) Remove the No. 5 back door name plate.

Text in Illustration
