Installation

EXTERIOR PANELS / TRIM: NAME PLATE: INSTALLATION

1. INSTALL SYMBOL EMBLEM

HINT
When installing the symbol emblem, heat the vehicle body and symbol emblem using a heat light.

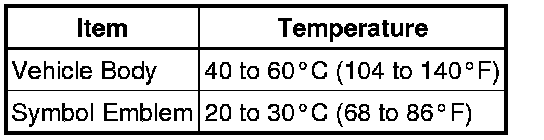

Standard:





NOTICE:
Do not heat the vehicle body or symbol emblem excessively.





(a) Clean the vehicle body surface.

(1) Using a heat light, heat the vehicle body surface.

(2) Remove the double-sided tape from the vehicle body.

(3) Wipe off any tape adhesive residue with cleaner.

(b) Install a new symbol emblem.

(1) Using a heat light, heat the vehicle body and a new symbol emblem.

(2) Remove the peeling paper from the face of the symbol emblem.

HINT
After removing the peeling paper, keep the exposed adhesive free from foreign matter.

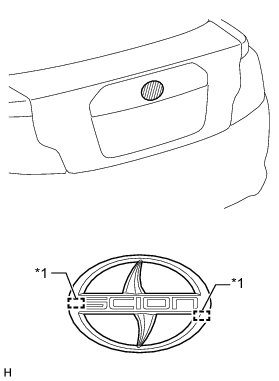

(3) Align the boss positions and install the symbol emblem.

HINT
Press the symbol emblem firmly to install it.

Text in Illustration





2. INSTALL NO. 5 BACK DOOR NAME PLATE

HINT
When installing the No. 5 back door name plate, heat the vehicle body and No. 5 back door name plate using a heat light.

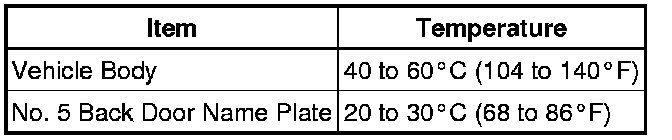

Standard:





NOTICE:
Do not heat the vehicle body or No. 5 back door name plate excessively.





(a) Clean the vehicle body surface.

(1) Using a heat light, heat the vehicle body surface.

(2) Remove the double-sided tape from the vehicle body.

(3) Wipe off any tape adhesive residue with cleaner.

(b) Install a new No. 5 back door name plate.

(1) Using a heat light, heat the vehicle body and a new No. 5 back door name plate.

(2) Remove the peeling paper from the face of the No. 5 back door name plate.

HINT
After removing the peeling paper, keep the exposed adhesive free from foreign matter.

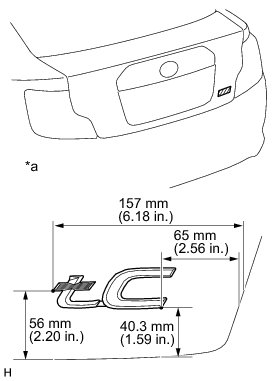

(3) Install the No. 5 back door name plate in the position shown in the illustration.

HINT
Press the No. 5 back door name plate firmly to install it.
