Engine Immobilizer System (w/o Smart Key System)

THEFT DETERRENT / KEYLESS ENTRY: ENGINE IMMOBILISER SYSTEM (w/o Smart Key System): DATA LIST / ACTIVE TEST

1. DATA LIST

HINT
* Using the Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.
* If the ignition switch cannot be turned to ON, communication with the Techstream can be performed by connecting the Techstream to the vehicle and turning a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the Techstream and vehicle begins.

NOTICE:
In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / Immobiliser / Data List.

(e) According to the display on the Techstream, read the Data List.

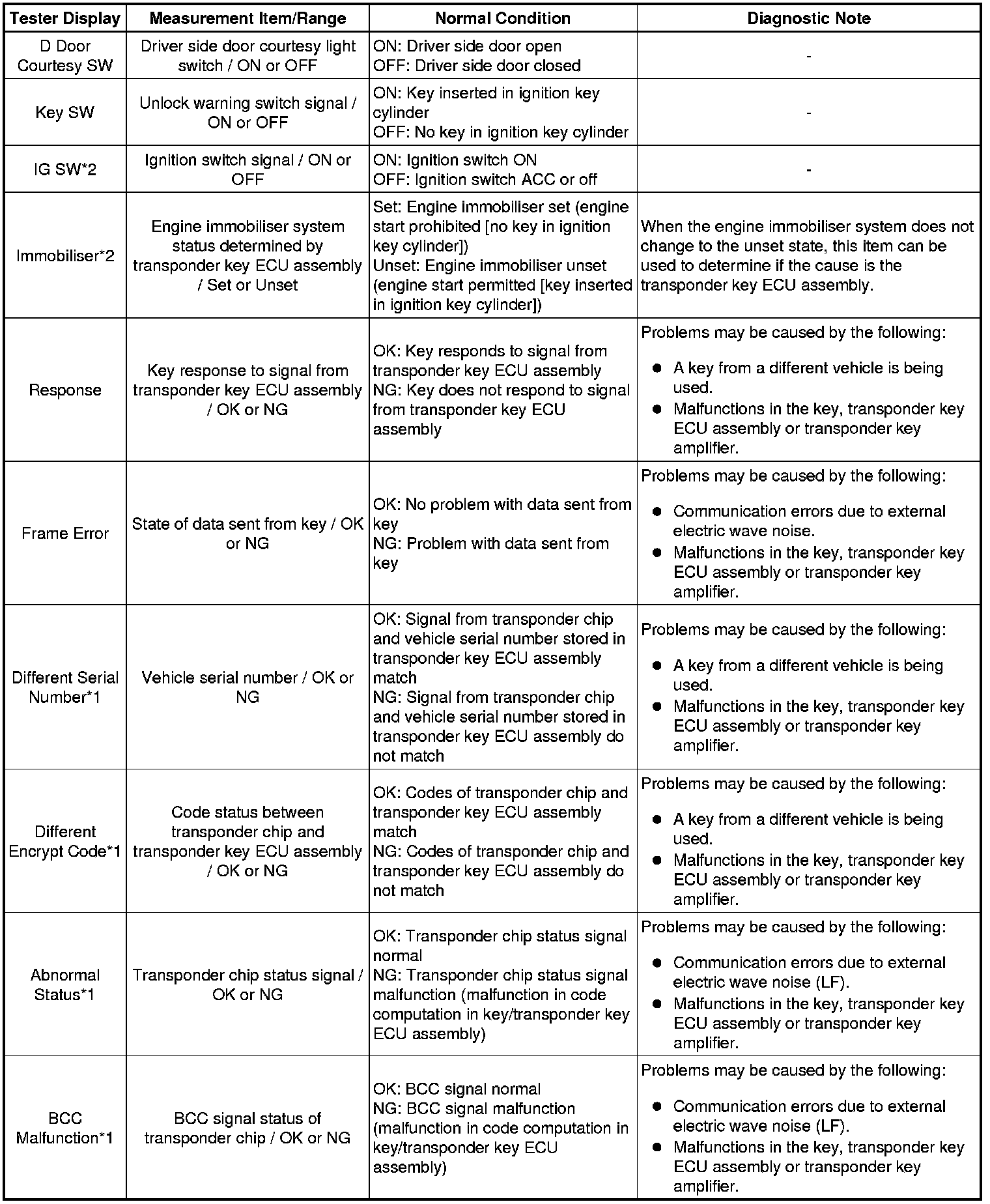

Immobiliser









HINT
* *1: This indicates that there is a problem with the communication format between the key and transponder key ECU assembly. Electric wave interference, key or transponder key ECU assembly malfunctions, the key of another vehicle being used, etc. are possible causes.

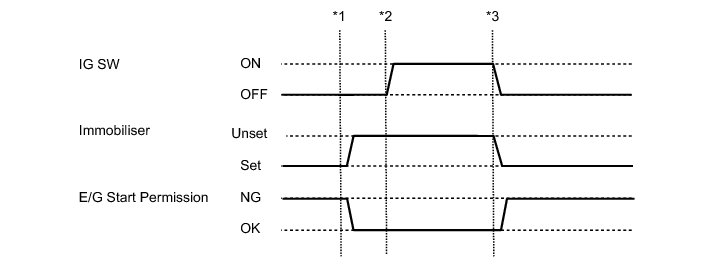

* *2: Refer to the following Data List items of an actual vehicle.






* *1: Without depressing the brake pedal (for Automatic Transaxle) or clutch pedal (for Manual Transaxle), insert the key into the ignition key cylinder and turn the ignition switch to ACC.

* *2: Without depressing the brake pedal (for Automatic Transaxle) or clutch pedal (for Manual Transaxle), turn the ignition switch to IG.

* *3: Turn the ignition switch off and remove the key from the ignition key cylinder.

2. PERFORM ACTIVE TEST

HINT
* Using the Techstream to perform Active Tests allows relays, VSVs, actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Tests early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.
* If the ignition switch cannot be turned to ON, communication with the Techstream can be performed by connecting the Techstream to the vehicle and turning a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the Techstream and vehicle begins.

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / Immobiliser / Active Test.

(e) According to the display on the Techstream, perform the Active Test.

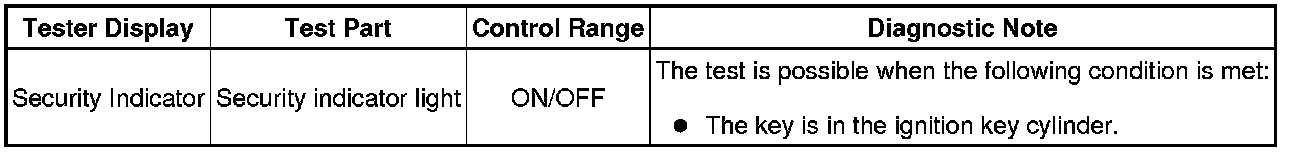

Immobiliser
