Operation Check

THEFT DETERRENT / KEYLESS ENTRY: SMART KEY SYSTEM (for Entry Function): OPERATION CHECK

1. CHECK SMART KEY SYSTEM (for Entry Function) OPERATION

NOTICE:
Make sure that the smart key system (for Entry Function) has not been canceled before performing this inspection.

(a) Check the entry unlock function (driver side door, front passenger side door).

(1) Perform a wireless lock operation to lock all the doors, touch the unlock sensor built into the backside of the front door outside handle assembly of the driver side door while carrying the electrical key transmitter and check that all the doors unlock.

HINT
To perform a wireless lock operation, press the lock switch of the electrical key transmitter while standing near the front door outside handle assembly.

(2) Inspect the entry unlock detection area. Hold the electrical key transmitter at the same height as the front door outside handle assembly (approximately 0.8 m (2.62 ft.) from the ground) and approximately 0.7 m (2.30 ft.) from the vehicle as shown in the illustration and check that the LED (red) of the electrical key transmitter blinks.

Text in Illustration

HINT
The outside mirror illumination turns on.

(3) With the system in unlock standby mode, hold the front door outside handle assembly and check that all the doors unlock.

HINT
* The system is in unlock standby mode when the electrical key transmitter is in the detection area and the key ID code sent by the electrical key transmitter matches the key ID code stored by the certification ECU (smart key ECU assembly).
* Communication may not be possible if the electrical key transmitter is within 0.2 m (0.66 ft.) of the front door outside handle assembly.
* Inspect the front passenger side door using the same procedure.

(4) Check the unlock response sensitivity. With the system in unlock standby mode, touch the area shown in the illustration and check that the door unlocks.

NOTICE:
If the sensor is touched too quickly or released too slowly, the sensor may not react and the door will not unlock.

Text in Illustration

(b) Check the entry lock function (driver side door, front passenger side door).

NOTICE:
If the electrical key transmitter is in the vehicle but outside the detection area (on the instrument panel, in the glove box, on the floor) and a door lock operation is performed, the key lock-in prevention function will not operate and the electrical key transmitter will be locked inside the vehicle.

(1) With all the doors closed and unlocked, touch the lock sensor of the front door outside handle assembly of the driver side door while carrying the electrical key transmitter and check that all the doors lock.

Text in Illustration

(2) Inspect the entry lock operating range. Hold the electrical key transmitter approximately 0.1 m (0.33 ft.) below the bottom edge of the door glass (approximately 0.8 m (2.62 ft.) from the ground) and approximately 0.3 m (0.98 ft.) from the vehicle as shown in the illustration, touch the lock sensor and check that all the doors lock.

Text in Illustration

HINT
* As communication may not be possible if the electrical key transmitter is within 0.2 m (0.66 ft.) of the front door outside handle assembly, the door may not lock if the lock sensor is touched with the same hand that is holding the electrical key transmitter, etc.
* If the key lock-in prevention function buzzer sounds, electric waves from the indoor electrical key antenna may be leaking from the vehicle.
* Inspect the front passenger side door using the same procedure.
* The door lock operation cannot be performed more than 2 times consecutively.

(3) After the system enters unlock standby mode, touch the unlock sensor on the outside handle within 3 seconds. Check that the door unlocks.

NOTICE:
The electrical key transmitter may not be able to communicate with the system within a 0.2 m (0.656 ft.) radius of each outside handle.

(c) Check the entry back door unlock function.

(1) Perform a wireless lock operation to lock all the doors, operate the unlock switch of the back door opener switch assembly while carrying the electrical key transmitter and check that all the doors unlock.

Text in Illustration

(2) Inspect the entry back door unlock operating range. While standing at the rear of the vehicle, hold the electrical key transmitter so that it is facing the direction shown in the illustration at the same height as the back door opener switch assembly and approximately 0.7 m (2.30 ft.) from the vehicle, press the unlock switch of the back door opener switch assembly and check that all the doors unlock.

(d) Check the entry back door lock function.

NOTICE:
If the electrical key transmitter is inside the vehicle and a door lock operation is performed, it is possible that the electrical key transmitter may be locked inside the vehicle.

(1) With all the doors closed and unlocked, press the lock switch of the back door opener switch assembly while carrying the electrical key transmitter outside of the vehicle and check that all the doors lock.

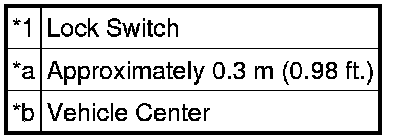

(2) Inspect the entry back door lock operating range. Hold the electrical key transmitter so that it is facing the direction shown in the illustration at the same height as the top edge of the rear bumper and approximately 0.3 m (0.98 ft.) from the vehicle, press the lock of the back door opener switch assembly and check that all the doors lock.

Text in Illustration

HINT
* Communication may not be possible if the electrical key transmitter is within 0.2 m (0.66 ft.) of the rear bumper.
* If the key lock-in prevention function buzzer sounds, electric waves from the indoor electrical key antenna assembly may be leaking from the vehicle.

(e) Check the entry ignition function.

* *1: for Automatic Transaxle

* *2: for Manual Transaxle

(1) With the engine switch off, move the shift lever to P*1, depress the brake pedal*1 or clutch pedal*2 while carrying the electrical key transmitter and check that the engine switch indicator illuminates in green. Then, with the engine switch indicator illuminated in green, press the engine switch and check that the engine starts.

(2) With the brake pedal*1 or clutch pedal*2 released and the engine switch off, press the engine switch while carrying the electrical key transmitter and check that the power source mode changes as follows: off -> on (ACC) -> on (IG) -> off. However, if the shift lever is in any position other than P while the engine switch is on (IG), the power source mode will not change to off, but to on (ACC)*1.

(3) Stop the vehicle, press the engine switch and check that the power source mode changes to off (the engine stops and all electrical systems are off). However, if the shift lever is in any position other than P, even if the engine switch is pressed while the vehicle is stationary, the power source mode will not change to off, but to on (ACC). Move the shift lever to P, open the door and check that the steering lock operates*1.

(4) Inspect the entry ignition operating range (front). Place the electrical key transmitter on the front seat at either inspection point so that it is facing in the direction shown in the illustration and check that the engine can be started.

Text in Illustration

NOTICE:
* Even if the electrical key transmitter is within the vehicle interior detection area, the electrical key transmitter may not be properly detected if it is on the instrument panel, in the glove box, in the rear seat cup holder or on the floor.
* Communication may not be possible if the electrical key transmitter is within 0.2 m (0.66 ft.) of the center of the luggage compartment.

HINT
Perform the inspection for both inspection points.

(f) Check the key lock-in prevention function (vehicle interior).

NOTICE:
In order to prevent the electrical key transmitter from being locked inside the vehicle, perform this inspection with the window of a door open.

(1) Turn the engine switch off.

(2) Place the electrical key transmitter on a front or rear seat.

(3) Close all the doors, but make sure all the doors are unlocked.

(4) Touch a front door lock sensor and check that the doors do not lock and that the key lock-in prevention function buzzer (external) sounds for approximately 10 seconds.

(g) Check the entry cancel function.

(1) Cancel the smart key system (for Entry Function) and check that all the functions of the smart key system (for Entry Function) no longer operate.

HINT
* Refer to the following procedures to cancel the smart key system (for Entry Function) Smart Key System (for Entry Function).
* While the smart key system (for Entry Function) is canceled, it is possible to lock and unlock the doors with the wireless operation, and the start system can be operated by holding the electrical key transmitter against the engine switch.

(2) While the key cancel function (entry cancel function) is on, check that all functions of the smart key system (for Entry Function) cannot be operated.

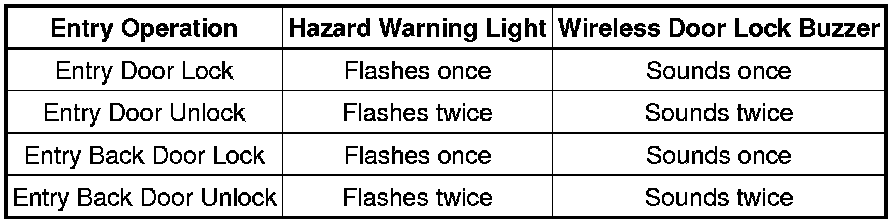

(h) Check the answer-back function (hazard warning light and wireless door lock buzzer function operation).

2. KEY DIAGNOSTIC MODE (Using Techstream)

HINT
With key diagnostic mode, it is possible to check if the electrical key transmitter is operating properly with the selected electrical key antenna and within the selected detection area by the sounding of the wireless buzzer.

(a) Enter the following menus: Body Electrical / Smart Key / Utility / Key Communication Check.

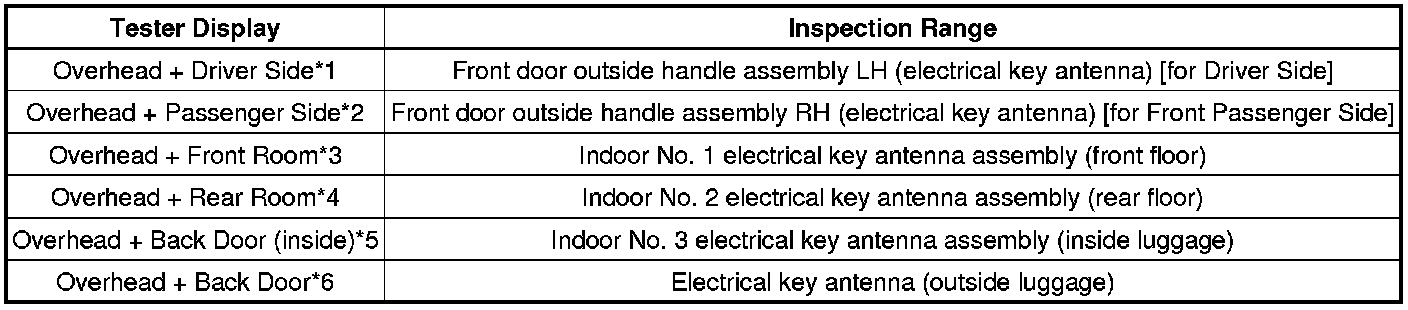

(b) Select a part to inspect from the following table.

(c) Bring the key near the selected electrical key antenna and check that the wireless door lock buzzer sounds.

HINT
The buzzer sounds in short, repeated beeps for all items except "Overhead + Rear Room"*4. For "Overhead + Rear Room"*4, the buzzer sounds in one long, continuous beep.

(1) *1: Front door outside handle assembly LH (electrical key antenna) [for Driver Side]

Text in Illustration

HINT
* Hold the electrical key transmitter at the same height as the front door outside handle assembly (approximately 0.8 m (2.62 ft.) from the ground) in the position shown in the illustration.
* *2: Perform the same inspection for the front passenger side.

(d) *3: Indoor No. 1 electrical key antenna assembly (front floor)

Text in Illustration

HINT
Place the electrical key transmitter on the front seat cushion of the driver seat or front passenger seat.

(e) *4: Indoor No. 2 electrical key antenna assembly (rear floor)

Text in Illustration

HINT
Place the electrical key transmitter on the rear seat cushion.

(f) *5: Indoor No. 3 electrical key antenna assembly (inside luggage)

Text in Illustration

HINT
Place the electrical key transmitter in the luggage compartment. Even if the electrical key transmitter is in the luggage compartment, the buzzer may not sound.

(g) *6: Electrical key antenna (outside luggage)

Text in Illustration

HINT
While standing at the rear of the vehicle, hold the electrical key transmitter in the position shown in the illustration at the same height as the top edge of the rear bumper.
