Meter / Gauge System

METER / GAUGE / DISPLAY: METER / GAUGE SYSTEM: U0100, U0129, U0131, U0151: Lost Communication with ECM / PCM "A"
U0151 - Lost Communication with Airbag ECU

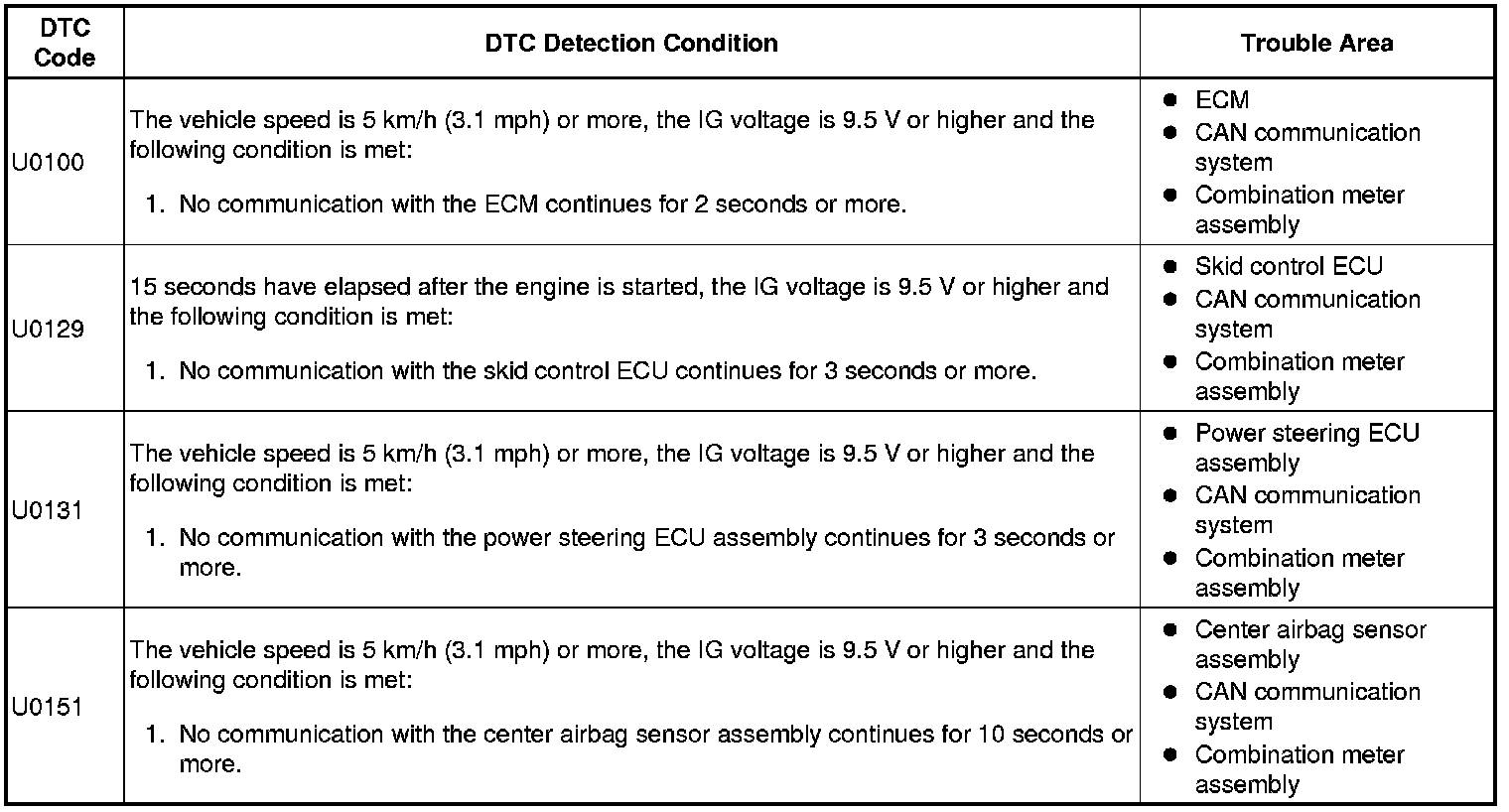

DESCRIPTION

The combination meter assembly communicates with the ECM via the CAN communication system.





INSPECTION PROCEDURE

PROCEDURE

1. CONFIRM DTC OUTPUT

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / Trouble Codes.

(e) Clear the stored DTCs.

(f) Drive the vehicle at more than 5 km/h (3.1 mph) for at least 60 seconds.

(g) Stop the vehicle.

(h) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

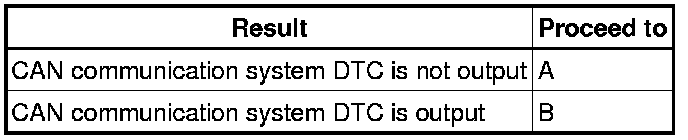

Result





HINT
If CAN communication system DTC U0100, U0129, U0131 or U0151 and another DTC are output at the same time, perform troubleshooting for CAN communication system DTC U0100, U0129, U0131 or U0151 first.

B -- GO TO CAN COMMUNICATION SYSTEM How to Proceed With Troubleshooting

A -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
