U760E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: P2759: Torque Converter Clutch Pressure Control Solenoid Control Circuit Electrical (Shift Solenoid Valve SLU)
P2759 - Torque Converter Clutch Pressure Control Solenoid Control Circuit Electrical (Shift Solenoid Valve SLU)

DESCRIPTION

The amount of current flow to shift solenoid valve SLU is controlled by the TCM. The higher the current becomes, the higher the lock-up hydraulic pressure becomes during the lock-up operation.









MONITOR DESCRIPTION

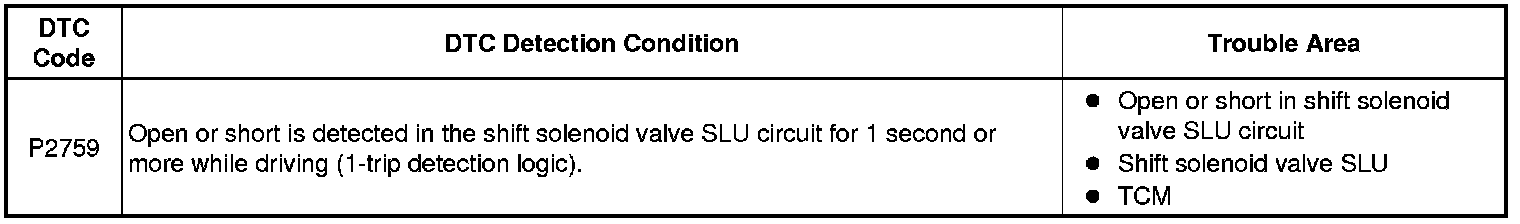

When an open or short in the shift solenoid valve SLU circuit is detected, the TCM determines there is a malfunction. The TCM will turn on the MIL and store the DTC.

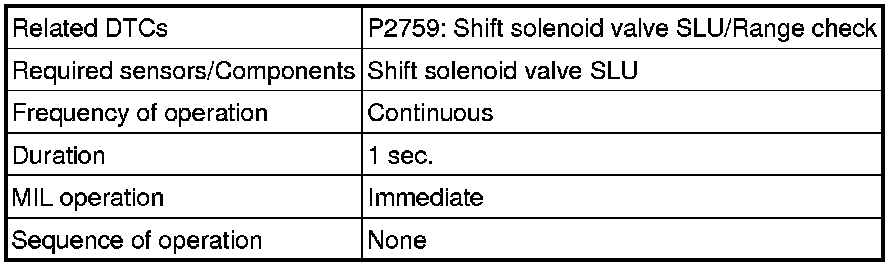

MONITOR STRATEGY

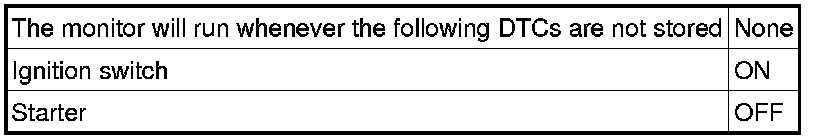

TYPICAL ENABLING CONDITIONS

All





Condition (A)





Condition (B)





TYPICAL MALFUNCTION THRESHOLDS

Condition (A) and (B)





COMPONENT OPERATING RANGE

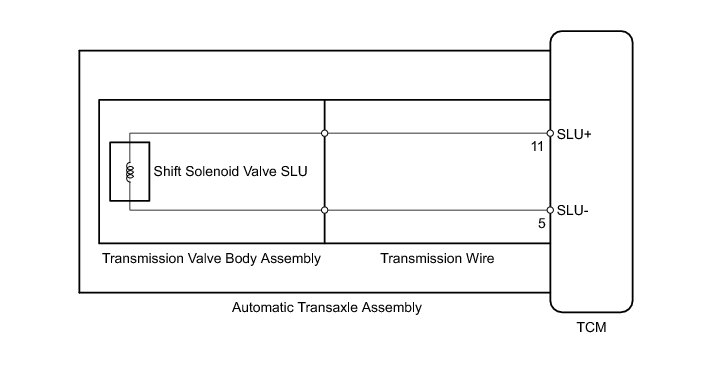

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Perform the universal trip to clear permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

PROCEDURE

1. INSPECT TRANSMISSION WIRE (SHIFT SOLENOID VALVE SLU)

(a) Remove the TCM.





(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

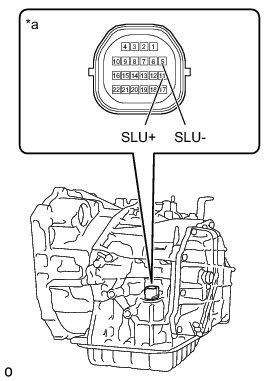

Text in Illustration





NG -- INSPECT SHIFT SOLENOID VALVE SLU

OK -- REPLACE TCM Removal

2. INSPECT SHIFT SOLENOID VALVE SLU P2757

NG -- REPLACE SHIFT SOLENOID VALVE SLU Disassembly

OK -- REPLACE TRANSMISSION WIRE Removal
