2AR-FE ENGINE CONTROL: SFI SYSTEM: P0630: VIN not Programmed or Mismatch - ECM / PCM
P0630 - VIN not Programmed or Mismatch - ECM / PCM

DESCRIPTION

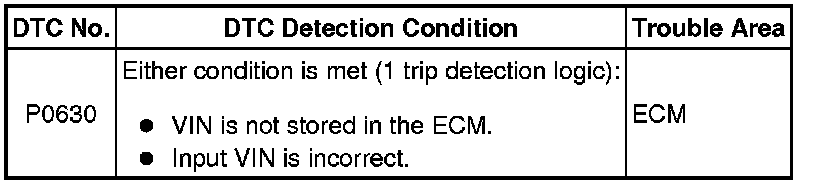

DTC P0630 is stored when the Vehicle Identification Number (VIN) is not stored in the ECM or the input VIN is incorrect. The VIN is input with the Techstream.

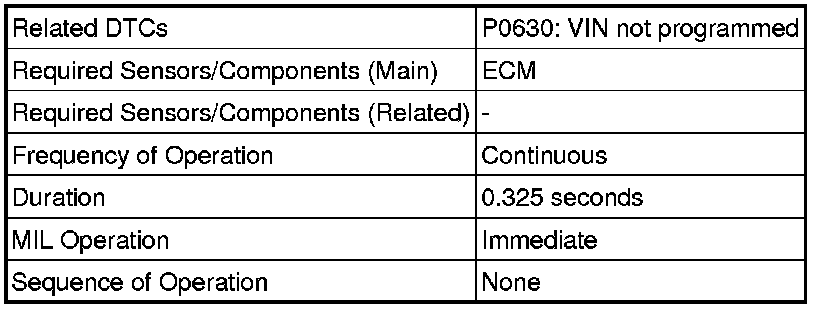

MONITOR STRATEGY

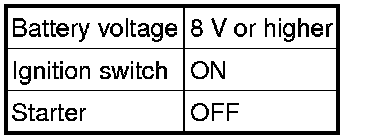

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE





CONFIRMATION DRIVING PATTERN

1. Connect the Techstream to the DLC3.

2. Turn the ignition switch to ON and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC operation).

4. Turn the ignition switch off and wait for at least 30 seconds.

5. Turn the ignition switch to ON and turn the Techstream on.

6. Wait 5 seconds or more.

7. Enter the following menus: Powertrain / Engine / Trouble Codes.

8. Read the pending DTCs.

HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.

9. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

10. Input the DTC: P0630.

11. Check the DTC judgment result.





HINT
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows ABNORMAL, the system has a malfunction.

12. If the judgment result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs DTC Check / Clear.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

INSPECTION PROCEDURE

PROCEDURE

1. READ CURRENT DTC

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Trouble Codes.

(e) Read the DTCs.

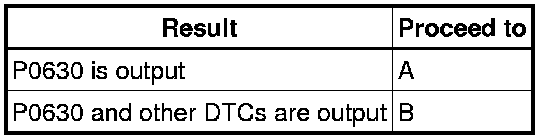

Result





HINT
If any DTCs other than P0630 are output, troubleshoot those DTCs first.

NOTICE:
If P0630 is stored, the VIN must be input to the ECM using the Techstream. However, all DTCs are cleared automatically by the Techstream when the VIN is input. If DTCs other than P0630 are output, troubleshoot them first.

B -- GO TO DTC CHART Engine Control - SFI System
A -- Continue to next step.

2. INPUT VIN WITH TECHSTREAM

(a) Refer to Registration Programming and Relearning.

NEXT -- END
