U760E Automatic Transaxle

U760E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: P062F: Internal Control Module EEPROM Error
P062F - Internal Control Module EEPROM Error

DESCRIPTION

The TCM monitors its internal operation and it stores this DTC when it detects an internal malfunction.





MONITOR DESCRIPTION

The TCM monitors its internal operation. If there is a problem in its internal operation, the TCM illuminates the MIL and stores a DTC.

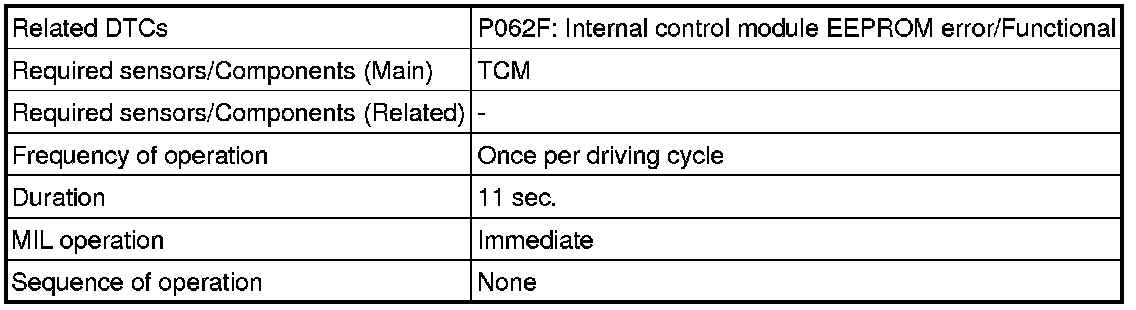

MONITOR STRATEGY

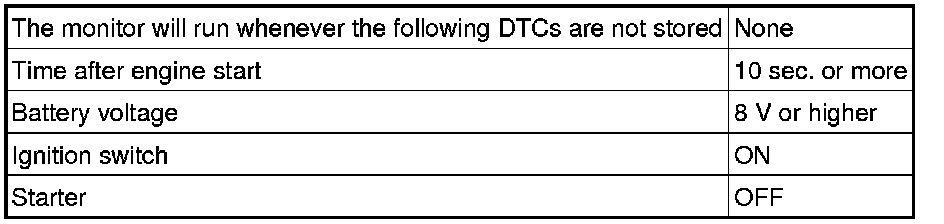

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





INSPECTION PROCEDURE

NOTICE:
Perform the universal trip to clear permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

PROCEDURE

1. CHECK DTC OUTPUT (IN ADDITION TO DTC P062F)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Clear DTCs Reading and Clearing Diagnostic Trouble Codes.

(e) Turn the engine switch off and turn the Techstream off.

(f) Disconnect the Techstream.

(g) Disconnect the cable from the negative (-) battery terminal and wait for 1 minute.

(h) Connect the cable to the negative (-) battery terminal.

(i) Connect the Techstream to the DLC3.

(j) Turn the engine switch on (IG).

(k) Turn the Techstream on.

(l) Enter the following menus: Powertrain / ECT / Trouble Codes.

(m) Read the DTCs using the Techstream.

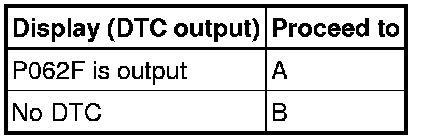

Result:





B -- CHECK FOR INTERMITTENT PROBLEMS How To Proceed With Troubleshooting

A -- REPLACE TCM Removal
