2AR-FE ENGINE CONTROL: SFI SYSTEM: P060D: Internal Control Module Accelerator Pedal Position Performance
P060D - Internal Control Module Accelerator Pedal Position Performance

DESCRIPTION

The ECM monitors the input signals of the accelerator pedal position sensor No. 1. When the input signals and control signals deviate, a DTC is stored.

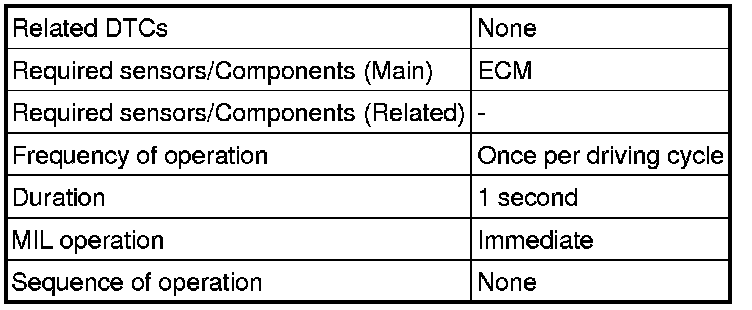

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS

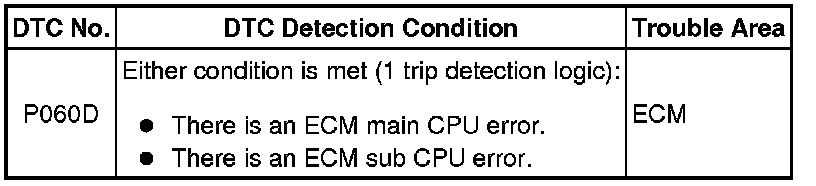

TYPICAL MALFUNCTION THRESHOLDS





CONFIRMATION DRIVING PATTERN

1. Connect the Techstream to the DLC3.

2. Turn the ignition switch to ON and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC operation).

4. Turn the Techstream off.

5. Turn the ignition switch off.

6. Disconnect the Techstream.

7. Disconnect the cable from the negative (-) battery terminal and wait for 1 minute.

8. Connect the cable to the negative (-) battery terminal.

9. Connect the Techstream to the DLC3.

10. Turn the ignition switch to ON and turn the Techstream on.

11. Wait 16 seconds or more.

12. Enter the following menus: Powertrain / Engine / Trouble Codes.

13. Read the pending DTCs.

HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.

14. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

15. Input the DTC: P060D.

16. Check the DTC judgment result.





HINT
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows ABNORMAL, the system has a malfunction.

17. If the judgment result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs DTC Check / Clear.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Clear the DTCs DTC Check / Clear.

(e) Turn the Techstream off.

(f) Turn the ignition switch off.

(g) Disconnect the Techstream.

(h) Disconnect the cable from the negative (-) battery terminal and wait for 1 minute.

(i) Connect the cable to the negative (-) battery terminal.

(j) Connect the Techstream to the DLC3.

(k) Turn the ignition switch to ON and turn the Techstream on.

(l) Wait 16 seconds or more.

(m) Enter the following menus: Powertrain / Engine / Trouble Codes.

(n) Check for DTCs.

OK:

P060D is not output.

NG -- REPLACE ECM Removal

OK -- CHECK FOR INTERMITTENT PROBLEMS Check for Intermittent Problems
