P060A

2AR-FE ENGINE CONTROL: SFI SYSTEM: P060A: Internal Control Module Monitoring Processor Performance
P060A - Internal Control Module Monitoring Processor Performance

DESCRIPTION

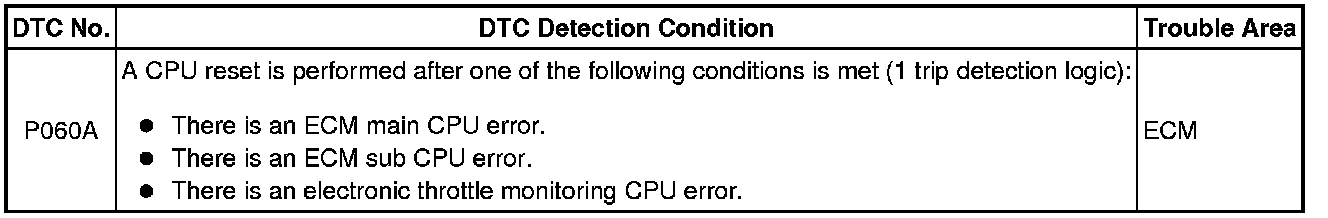

The main CPU and sub CPU of the ECM perform data communication between each other. The main CPU monitors the communications and WDC pulses from the sub CPU. When the signal malfunctions below are detected, a DTC is stored.





MONITOR STRATEGY

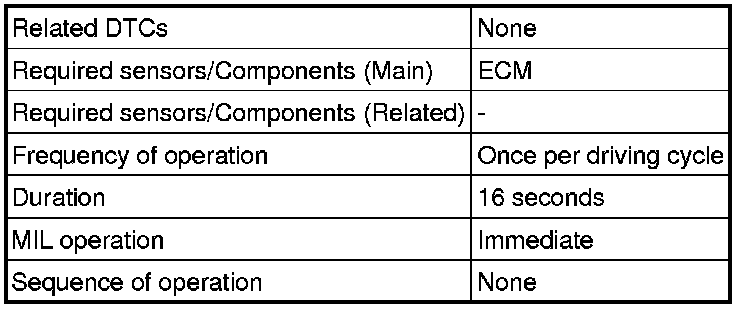

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





CONFIRMATION DRIVING PATTERN

1. Connect the Techstream to the DLC3.

2. Turn the ignition switch to ON and turn the Techstream on.

3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC operation).

4. Turn the Techstream off.

5. Turn the ignition switch off.

6. Disconnect the Techstream.

7. Disconnect the cable from the negative (-) battery terminal and wait for 1 minute.

8. Connect the cable to the negative (-) battery terminal.

9. Connect the Techstream to the DLC3.

10. Turn the ignition switch to ON and turn the Techstream on.

11. Wait 16 seconds or more.

12. Enter the following menus: Powertrain / Engine / Trouble Codes.

13. Read the pending DTCs.

HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.

14. Enter the following menus: Powertrain / Engine / Utility / All Readiness.

15. Input the DTC: P060A.

16. Check the DTC judgment result.





HINT
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows ABNORMAL, the system has a malfunction.

17. If the judgment result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs DTC Check / Clear.

HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

INSPECTION PROCEDURE

PROCEDURE

1. CHECK FOR DTC

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Turn the Techstream on.

(d) Clear the DTCs DTC Check / Clear.

(e) Turn the Techstream off.

(f) Turn the ignition switch off.

(g) Disconnect the Techstream.

(h) Disconnect the cable from the negative (-) battery terminal and wait for 1 minute.

(i) Connect the cable to the negative (-) battery terminal.

(j) Connect the Techstream to the DLC3.

(k) Turn the ignition switch to ON and turn the Techstream on.

(l) Wait 16 seconds or more.

(m) Enter the following menus: Powertrain / Engine / Trouble Codes.

(n) Check for DTCs.

OK:

P060A is not output.

NG -- REPLACE ECM Removal

OK -- CHECK FOR INTERMITTENT PROBLEMS Check for Intermittent Problems
