U760E Automatic Transaxle

U760E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: P0500: Vehicle Speed Sensor "A"

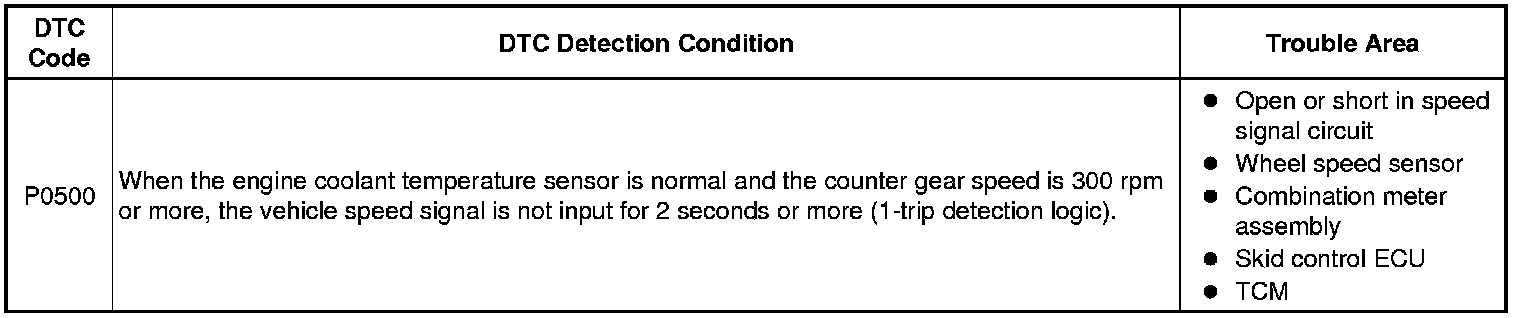

P0500 - Vehicle Speed Sensor "A"

DESCRIPTION

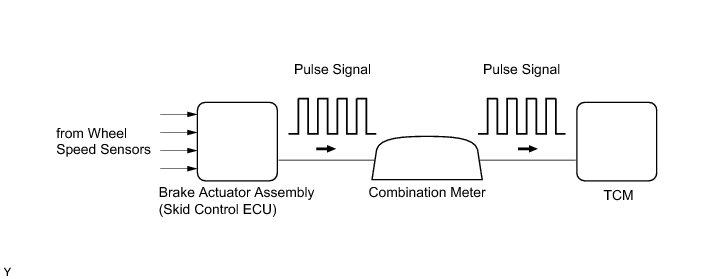

The speed sensors detect the wheel speed and send the appropriate signals to the skid control ECU. The skid control ECU converts these wheel speed signals into a pulse signal and outputs it to the TCM via the combination meter. The TCM determines the vehicle speed based on the frequency of this pulse signal.









MONITOR DESCRIPTION

The TCM assumes that the vehicle is being driven when the transmission counter gear speed is more than 300 rpm and over 30 seconds have passed since the park/neutral position switch was turned off. If there is no vehicle speed signal with these conditions satisfied, the TCM concludes that there is a vehicle speed signal malfunction. The TCM will turn on the MIL and store the DTC.

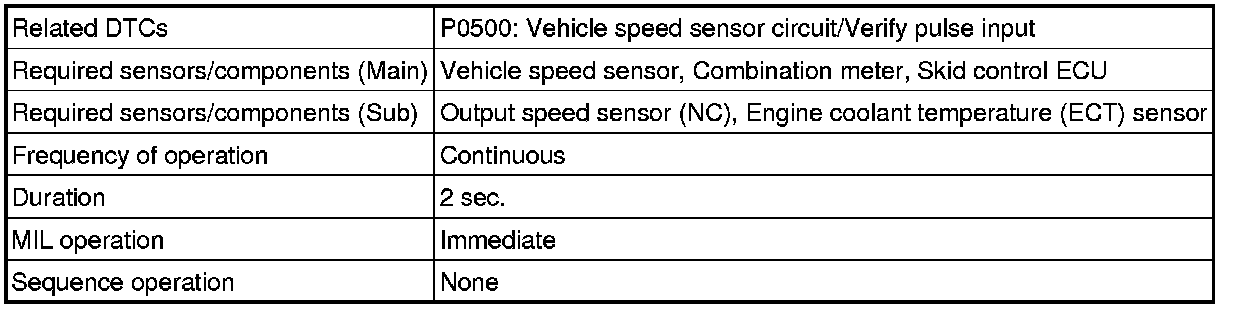

MONITOR STRATEGY

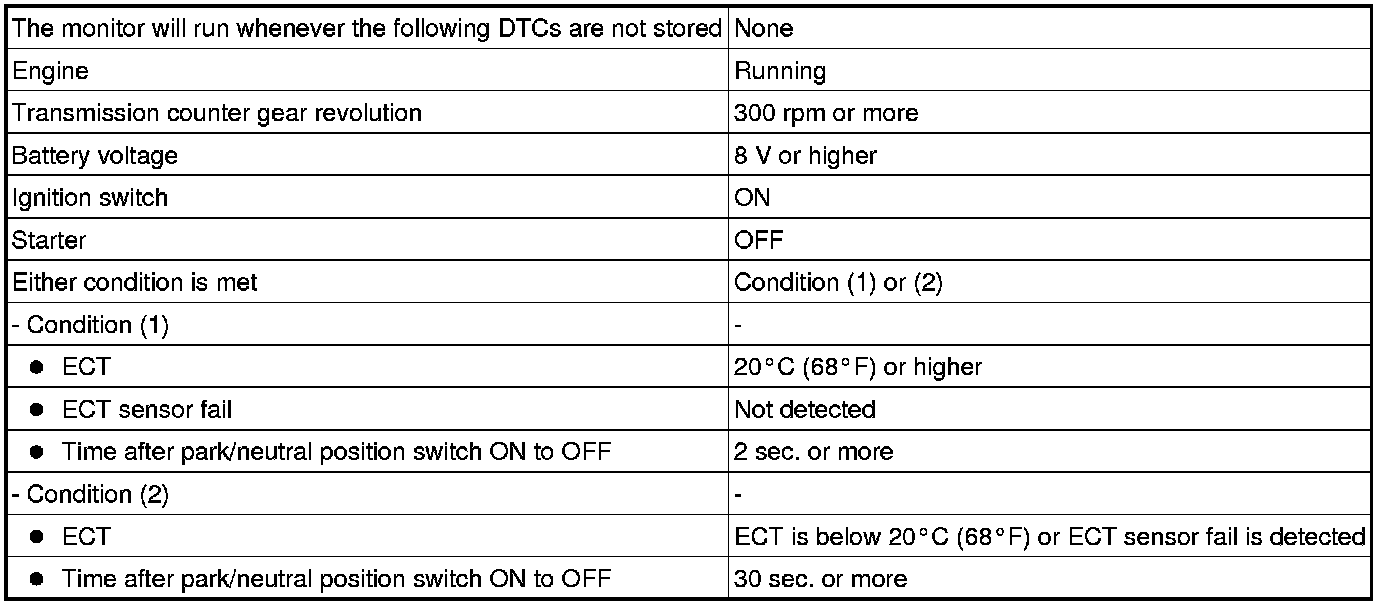

TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS

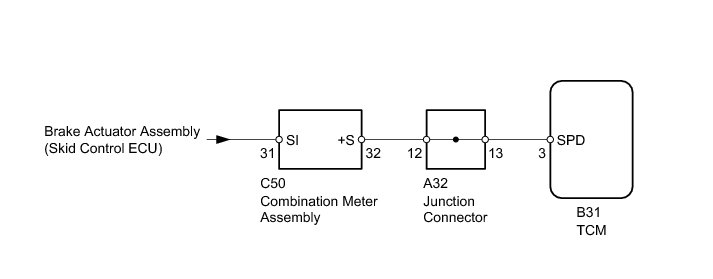

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Perform the universal trip to clear permanent DTCs Reading and Clearing Diagnostic Trouble Codes.

PROCEDURE

1. READ VALUE USING TECHSTREAM (VEHICLE SPEED)

(a) Drive the vehicle and check whether the operation of the speedometer in the combination meter assembly is normal.

HINT
- The vehicle speed sensor is operating normally if the speedometer reading is normal.
- If the speedometer does not operate, check it by following the procedure described for a speedometer malfunction.

(b) Connect the Techstream to the DLC3.

(c) Turn the ignition switch to ON.

(d) Turn the Techstream on.

(e) Enter the following menus: Powertrain / ECT / Data List.

(f) Drive the vehicle.

(g) Read the value displayed on the Techstream.

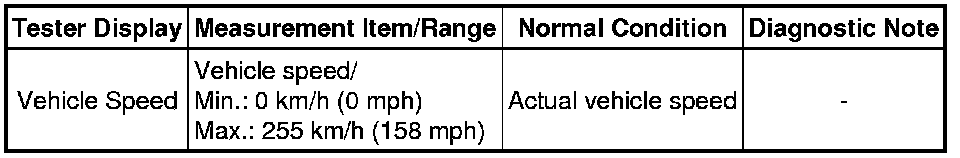

ECT





OK:

Vehicle speed displayed on Techstream and speedometer display are equal.

NG -- CHECK COMBINATION METER SYSTEM

OK -- CHECK FOR INTERMITTENT PROBLEMS How To Proceed With Troubleshooting

2. CHECK COMBINATION METER SYSTEM

(a) Inspect the circuits that send vehicle speed signals to this system in the meter system Component Tests and General Diagnostics.

(b) During inspection for the meter section, if there is an instruction that indicates to go back to inspections for each system, proceed to the next step.

NEXT -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - TCM)

(a) Disconnect the combination meter assembly connector.

(b) Disconnect the TCM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- CHECK HARNESS AND CONNECTOR (JUNCTION CONNECTOR - TCM)

OK -- REPLACE TCM Removal

4. CHECK HARNESS AND CONNECTOR (JUNCTION CONNECTOR - TCM)

(a) Disconnect the junction connector.

(b) Disconnect the TCM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPAIR OR REPLACE JUNCTION CONNECTOR
