Engine Control - SFI System
2AR-FE ENGINE CONTROL: SFI SYSTEM: P0500: Vehicle Speed Sensor "A"
P0500 - Vehicle Speed Sensor "A"

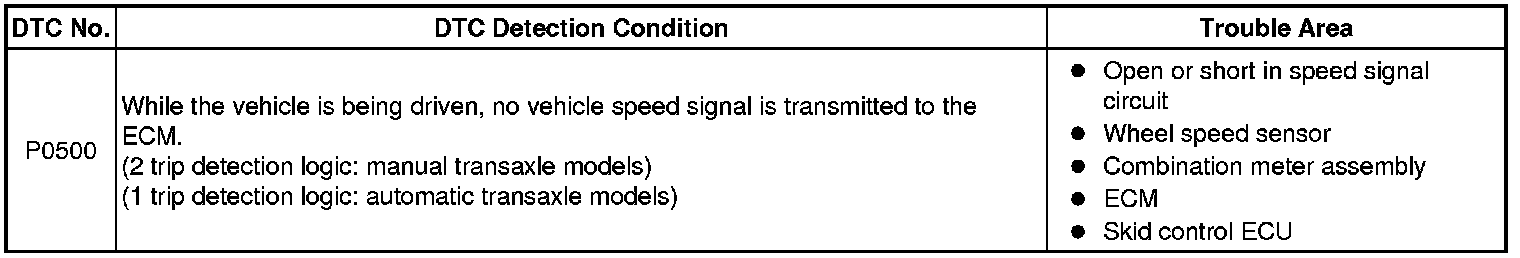

DESCRIPTION

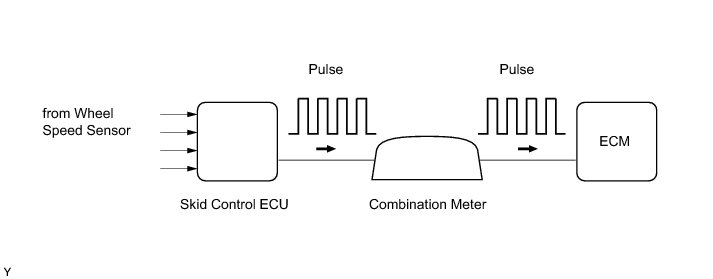

The speed sensor detects the wheel speed and sends the appropriate signals to the skid control ECU. The skid control ECU converts these wheel speed signals into a pulse signal and outputs it to the ECM via the combination meter. The ECM determines the vehicle speed based on the frequency of this pulse signal.
MONITOR DESCRIPTION
Automatic Transaxle Models:
- The ECM assumes that the vehicle is being driven when the vehicle speed sensor signal is being transmitted by the combination meter. If there is no signal from the combination meter despite the ECM detecting the speed signal from the speed sensor NC, the ECM interprets this as a malfunction in the speed signal circuit. The ECM then illuminates the MIL and stores the DTC.
Manual Transaxle Models:
- The ECM assumes that the vehicle is being driven when the idle fuel-cut operation* is being executed. If there is no signal from the vehicle speed sensor despite this condition being met, the ECM interprets this as a malfunction in the speed signal circuit. The ECM then illuminates the MIL and stores the DTC.
*: Idle fuel-cut is executed when the throttle valve is fully closed and engine speed is over 2800 rpm.

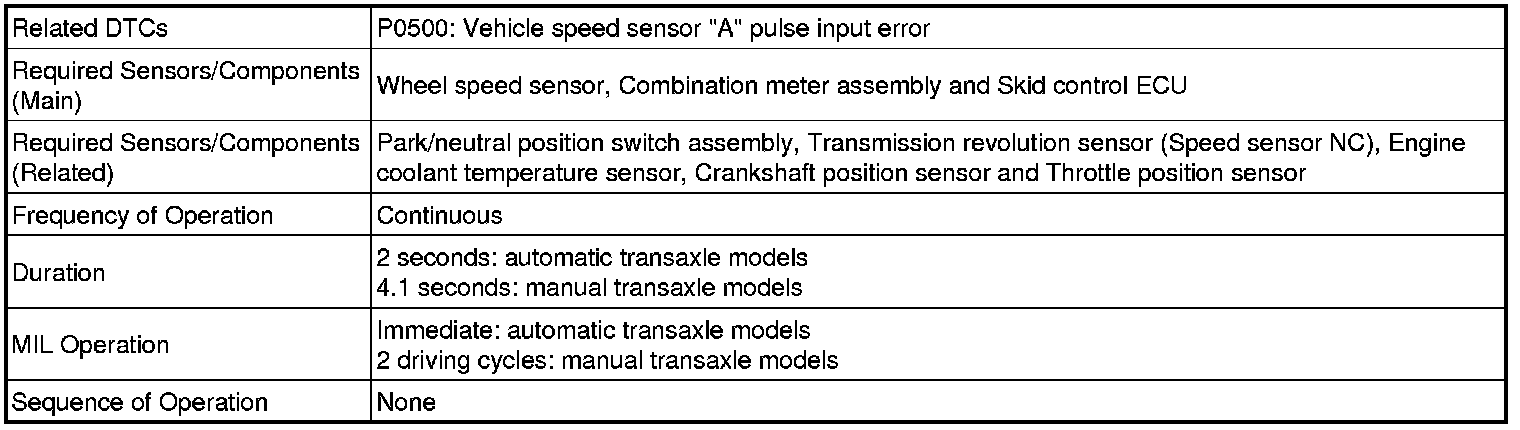

MONITOR STRATEGY
TYPICAL ENABLING CONDITIONS

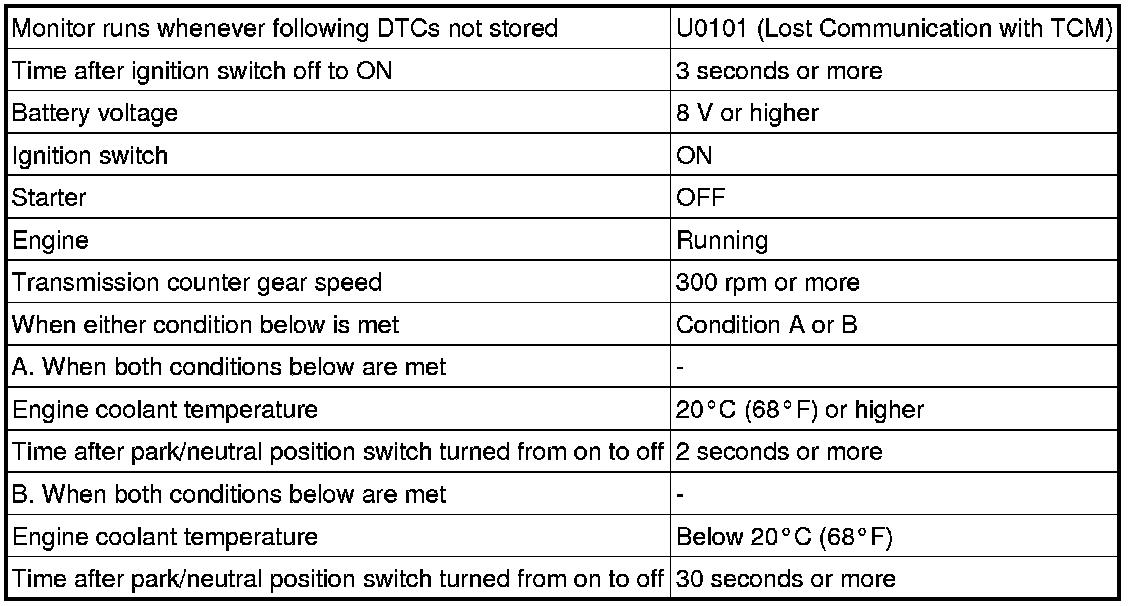

Automatic Transaxle Models

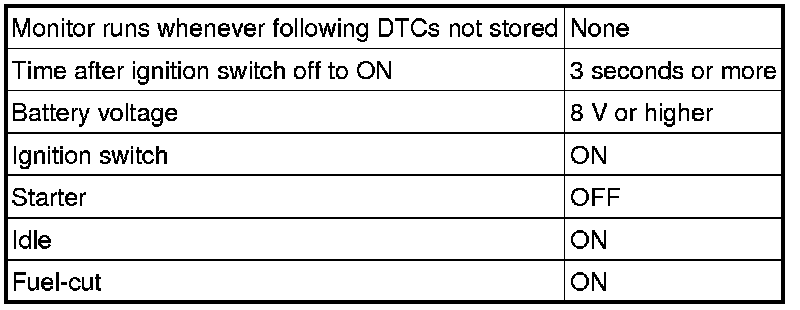

Manual Transaxle Models
TYPICAL MALFUNCTION THRESHOLDS

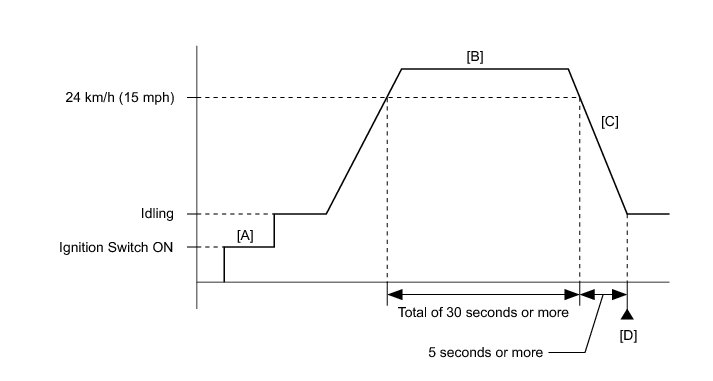

CONFIRMATION DRIVING PATTERN
1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON and turn the Techstream on.
3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC operation).
4. Turn the ignition switch off and wait for at least 30 seconds.
5. Turn the ignition switch to ON and turn the Techstream on [A].
6. Start the engine.
7. On the Techstream, enter the following menus to check the fuel-cut status: Powertrain / Engine / Data List / Idle Fuel Cut.
8. Drive the vehicle at 24 km/h (15 mph) or more for a total of 30 seconds or more [B].
9. Decelerate the vehicle by releasing the accelerator pedal for 5 seconds or more to perform the fuel-cut [C].
10. Stop the vehicle.
11. Enter the following menus: Powertrain / Engine / Trouble Codes [D].
12. Read the pending DTCs.
HINT
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
13. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
14. Input the DTC: P0500.
15. Check the DTC judgment result.
HINT
- If the judgment result shows NORMAL, the system is normal.
- If the judgment result shows ABNORMAL, the system has a malfunction.
16. If the judgment result is INCOMPLETE or UNKNOWN and no pending DTC is output, perform a universal trip and check for permanent DTCs DTC Check / Clear.
HINT
- If a permanent DTC is output, the system is malfunctioning.
- If no permanent DTC is output, the system is normal.

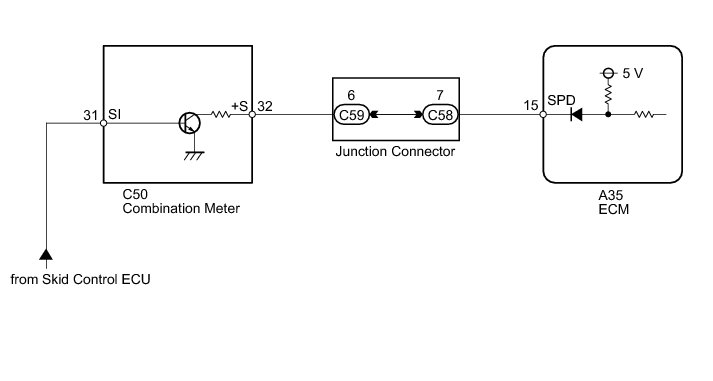

WIRING DIAGRAM
INSPECTION PROCEDURE
HINT
Read freeze frame data using the Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE
1. READ VALUE USING TECHSTREAM (VEHICLE SPEED)
(a) Connect the Techstream to the DLC3.
(b) Turn the ignition switch to ON.
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Engine / Data List / Vehicle Speed.
(e) Drive the vehicle.
(f) Read the value displayed on the Techstream.
OK:
Vehicle speeds displayed on Techstream and speedometer display are equal.
NG -- CHECK COMBINATION METER SYSTEM
OK -- CHECK FOR INTERMITTENT PROBLEMS Check for Intermittent Problems
2. CHECK COMBINATION METER SYSTEM
(a) Inspect the circuits that send vehicle speed signals to this system in the meter system Component Tests and General Diagnostics.
(b) During inspection for the meter section, if there is an instruction that indicates to go back to inspections for each system, proceed to the next step.
NEXT -- Continue to next step.
3. CHECK HARNESS AND CONNECTOR (ECM - COMBINATION METER)
(a) Disconnect the ECM connector.
(b) Disconnect the combination meter connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance (Check for Open):
NG -- CHECK HARNESS AND CONNECTOR (ECM - JUNCTION CONNECTOR)
OK -- REPLACE ECM Removal
4. CHECK HARNESS AND CONNECTOR (ECM - JUNCTION CONNECTOR)
(a) Disconnect the ECM connector.
(b) Disconnect the junction connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance (Check for Open):
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (ECM - JUNCTION CONNECTOR)
OK -- REPAIR OR REPLACE HARNESS OR CONNECTOR (JUNCTION CONNECTOR IS DEFECTIVE)
