Sliding Roof System

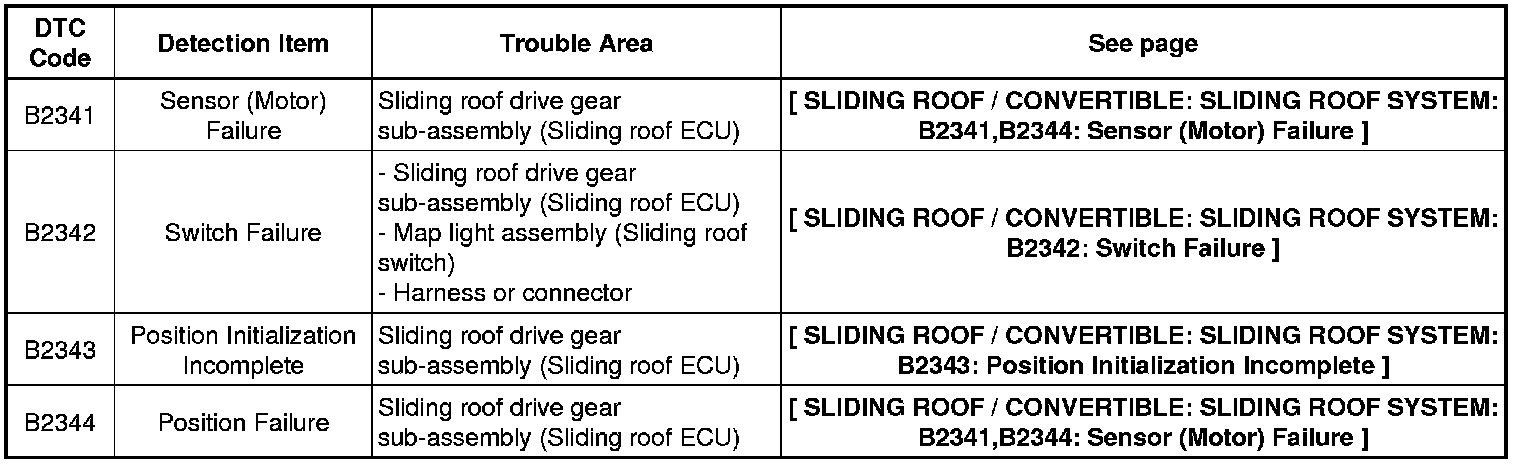

SLIDING ROOF / CONVERTIBLE: SLIDING ROOF SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

HINT
If a trouble code is output during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "See page" below.

Sliding Roof System
