LIN Communication System
NETWORKING: LIN COMMUNICATION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
HINT

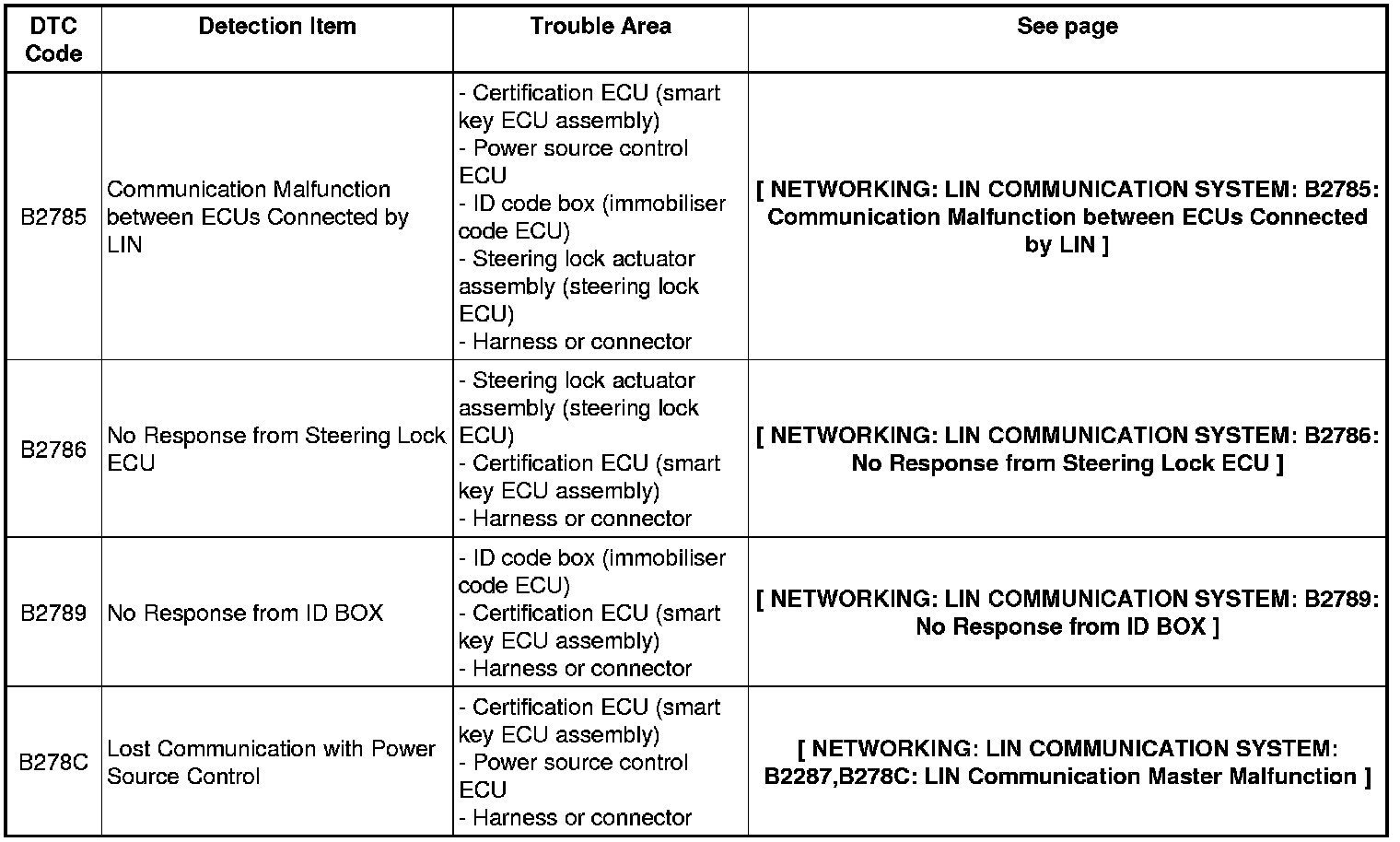

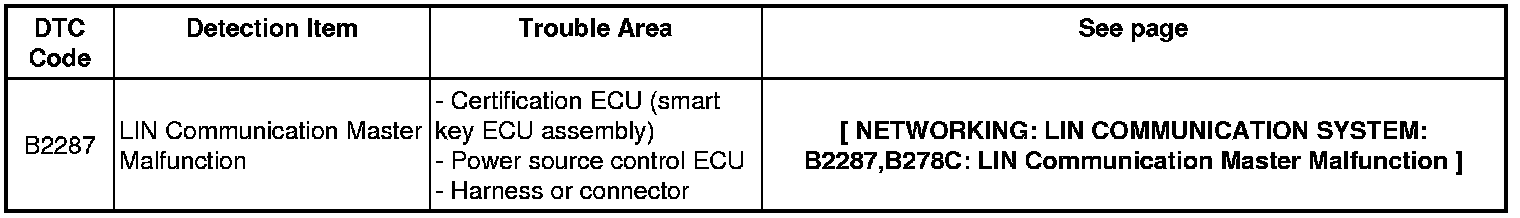

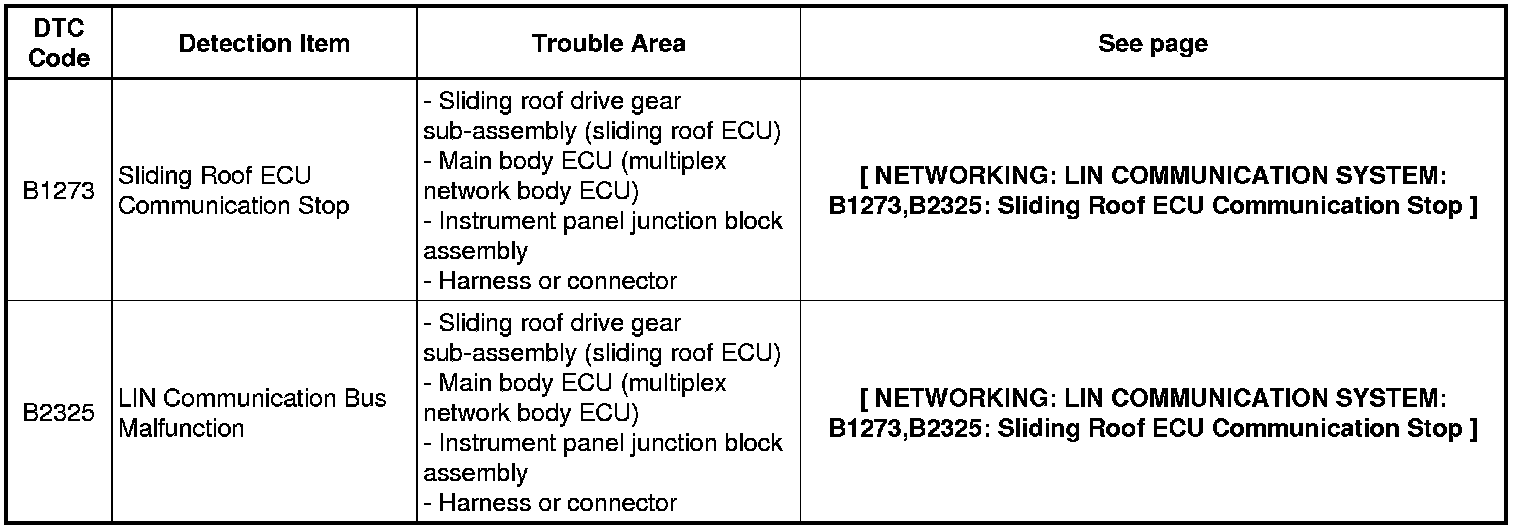

If a trouble code is output during the DTC check, inspect the trouble areas listed for that code. For details of the code, refer to the "See page" below.
Main Body ECU
Power Source Control ECU
Certification ECU (Smart Key ECU Assembly)
