Engine Control - SFI System

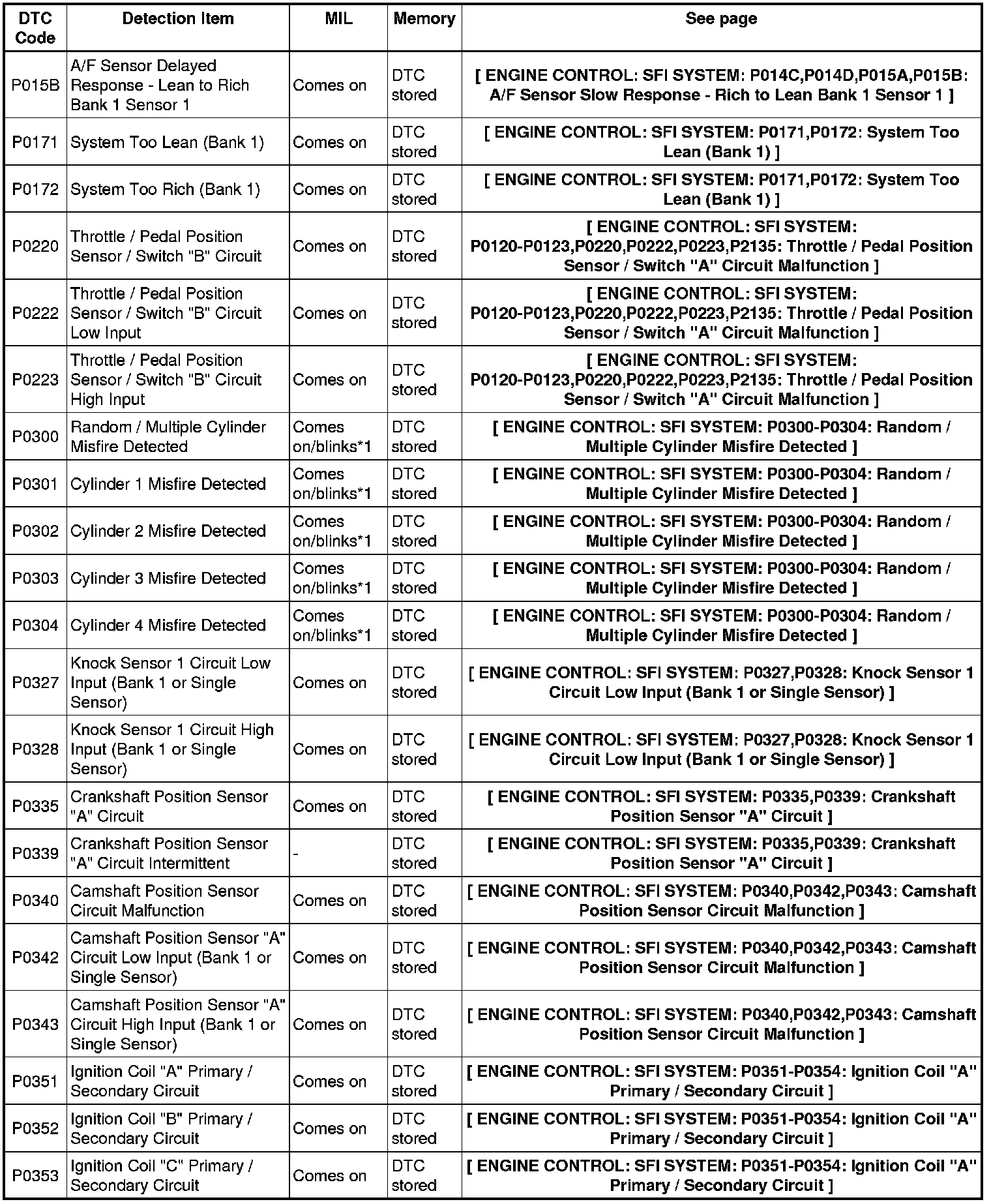

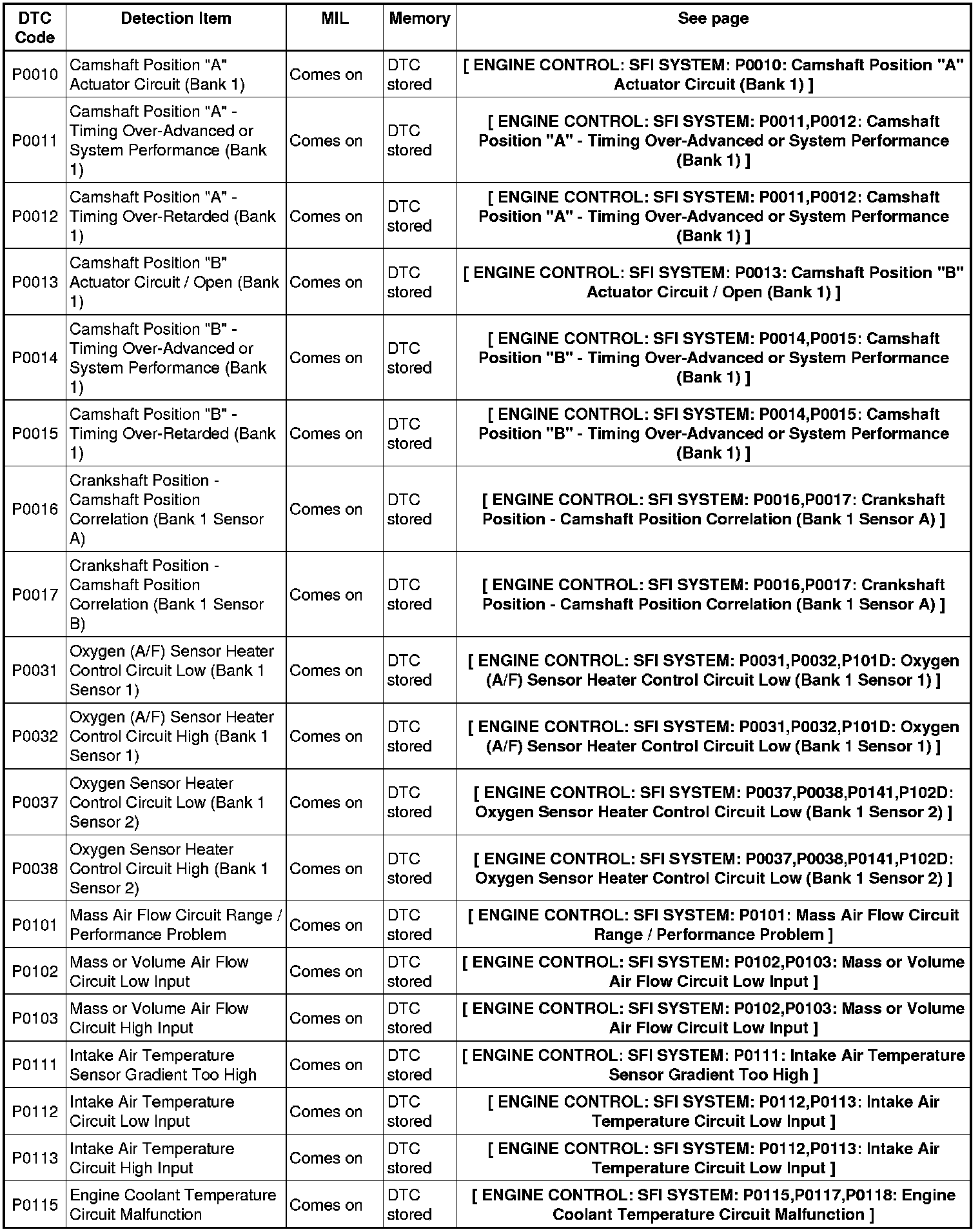

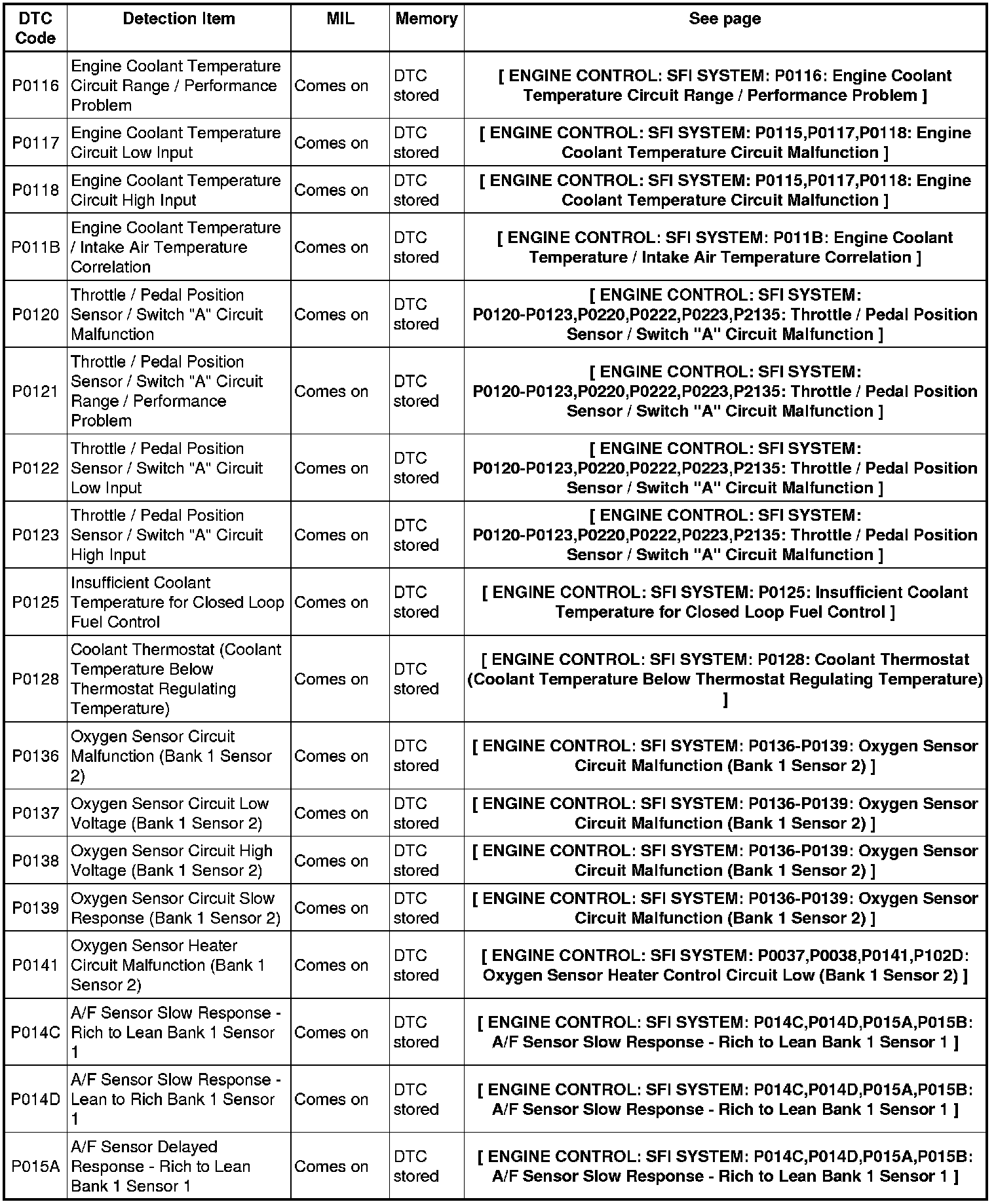

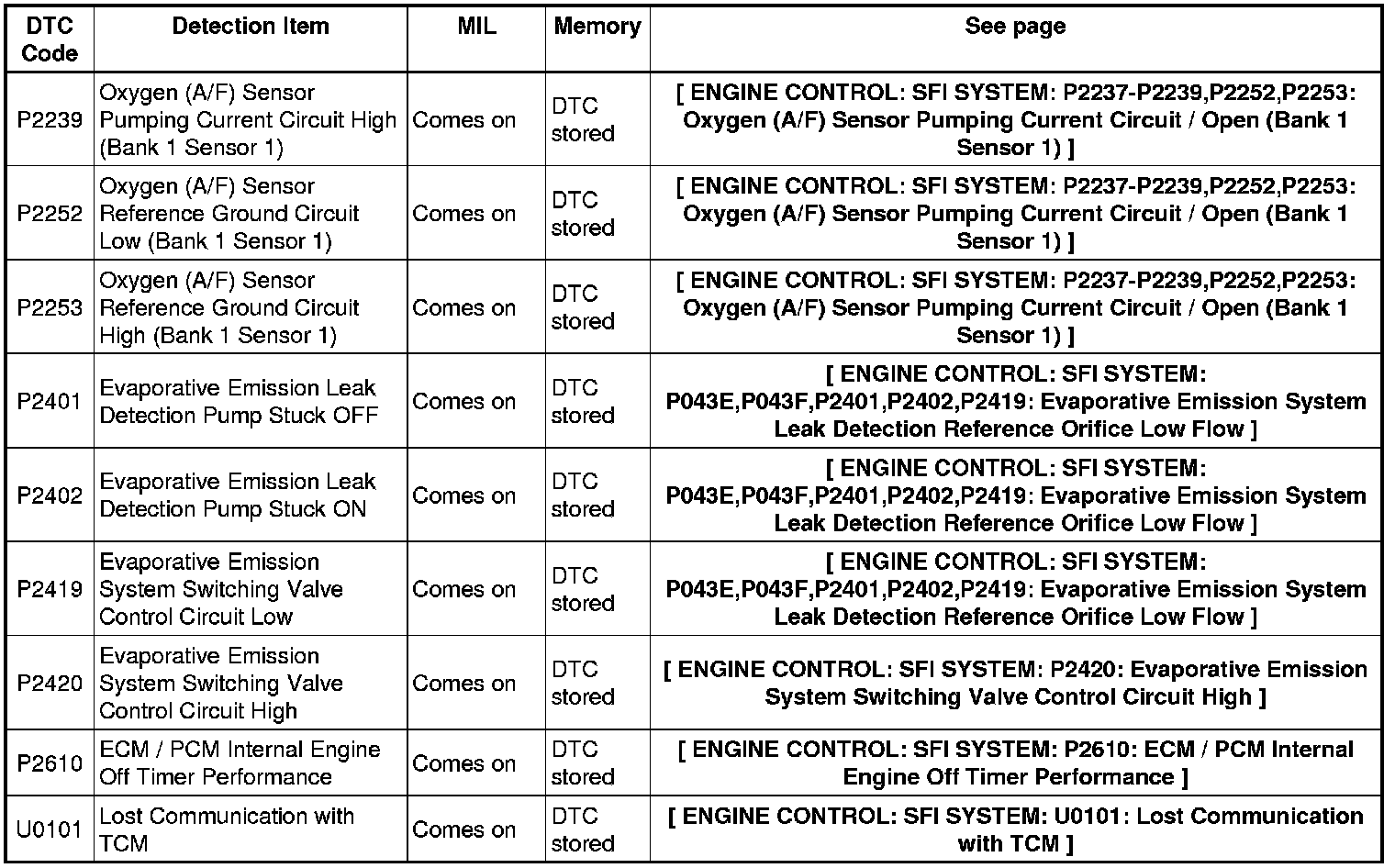

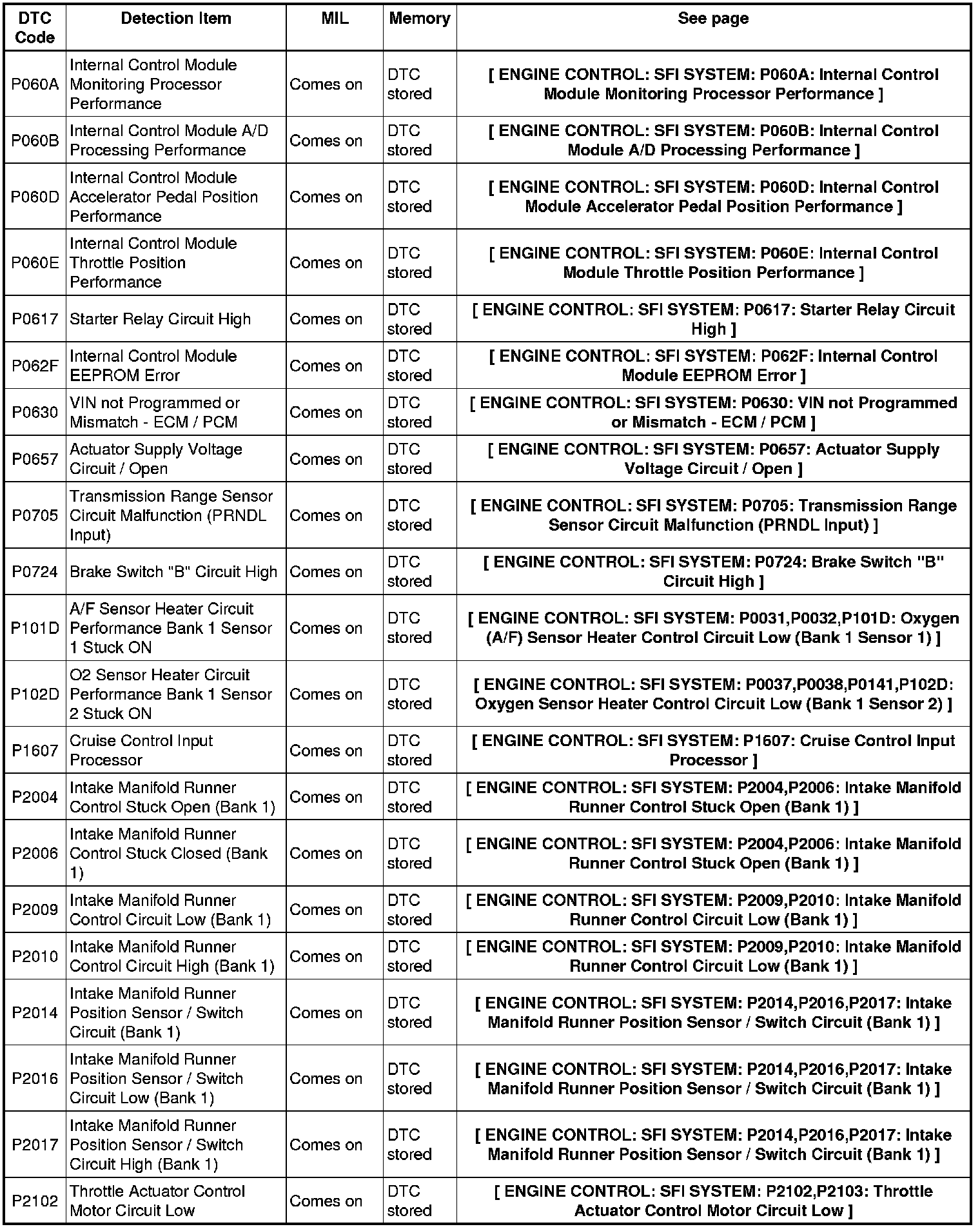

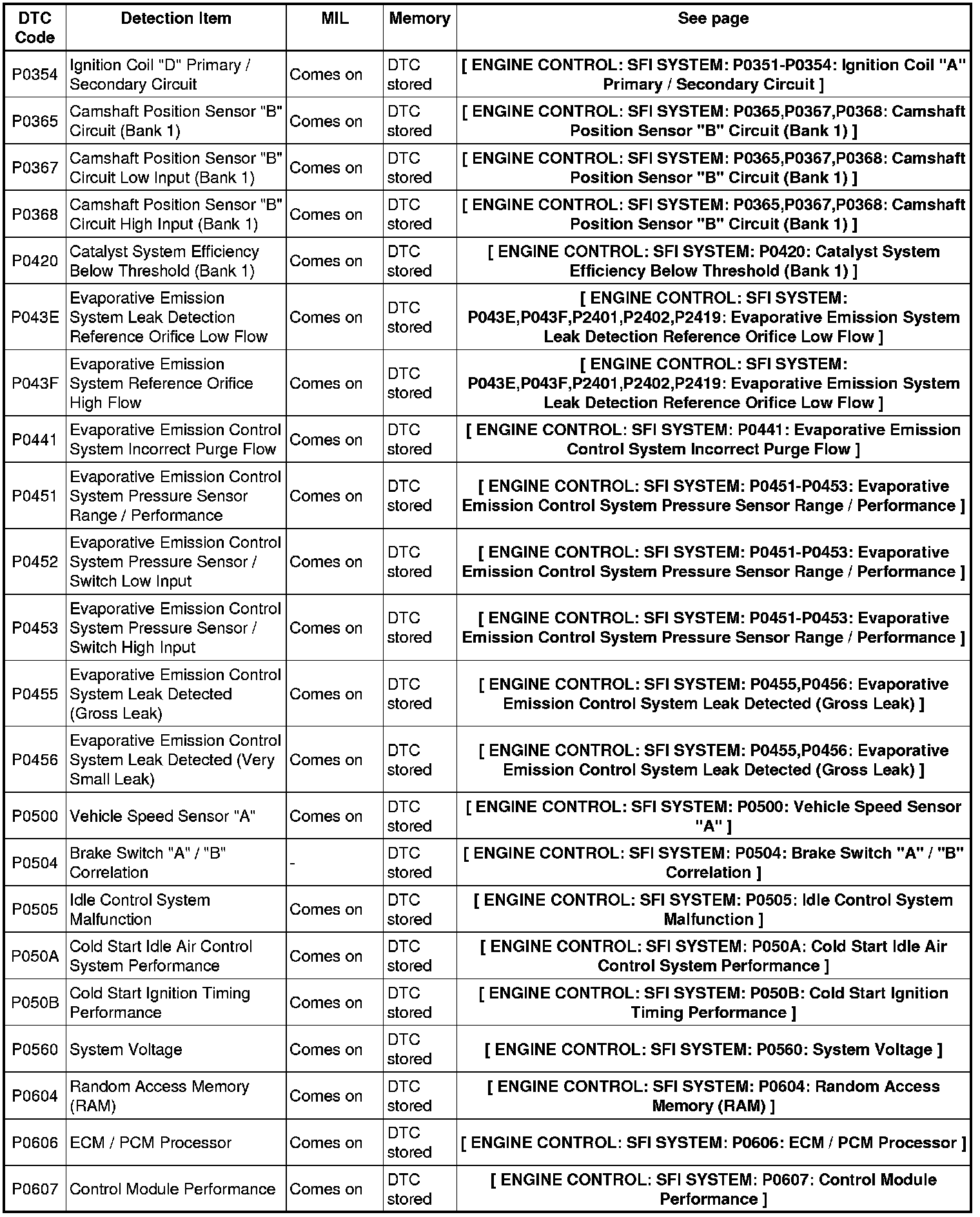

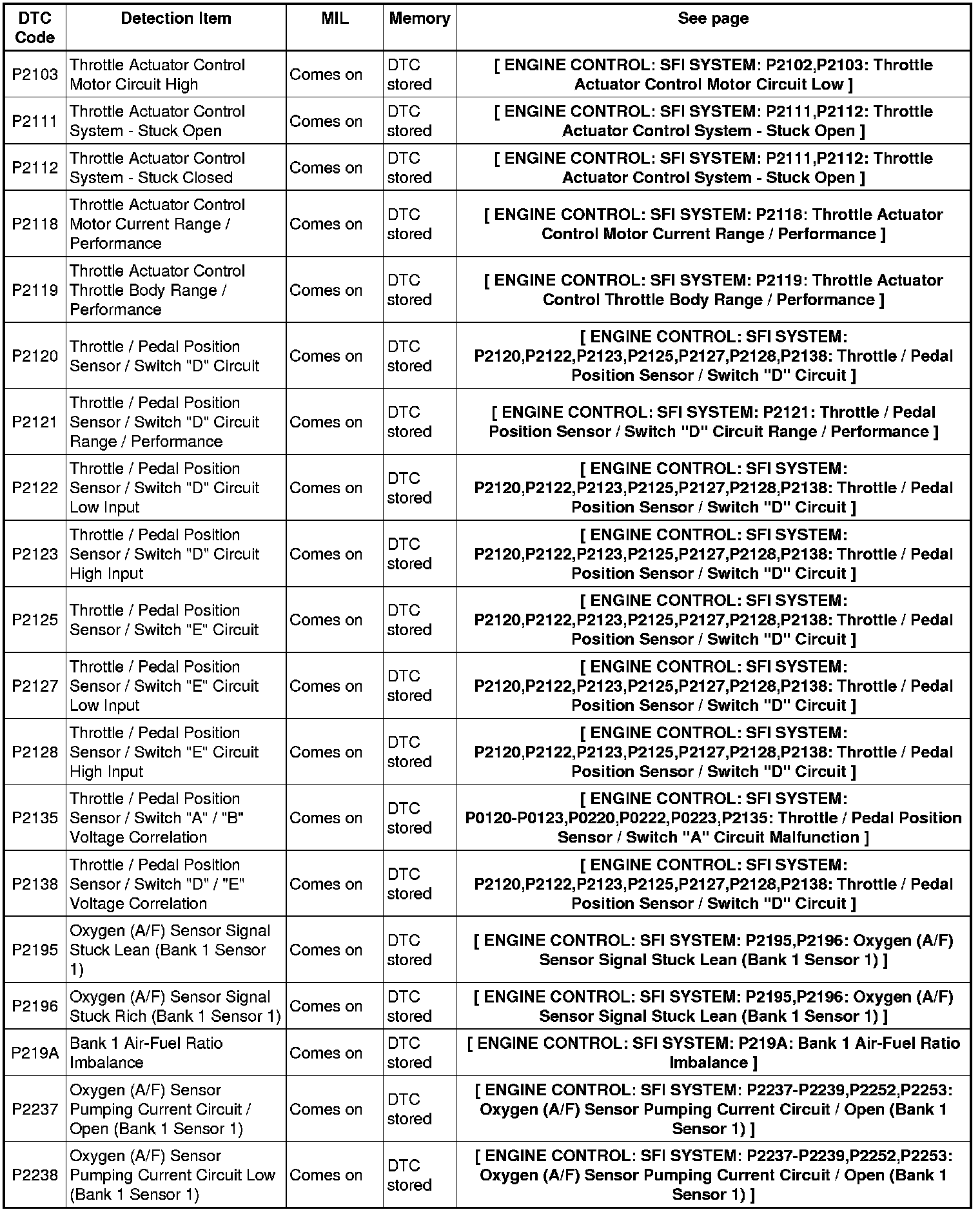

2AR-FE ENGINE CONTROL: SFI SYSTEM: DIAGNOSTIC TROUBLE CODE CHART
HINT
Factors such as instrument type may cause readings to differ slightly from the stated values. If any DTCs are output during a check mode DTC check, check the trouble area for the DTCs listed in the table below. For details of each DTC, refer to the "See page" indicated.
*1: The MIL flashes when catalyst-damaging misfire is detected.
SFI System
