Automatic Transaxle System - U760E

U760E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

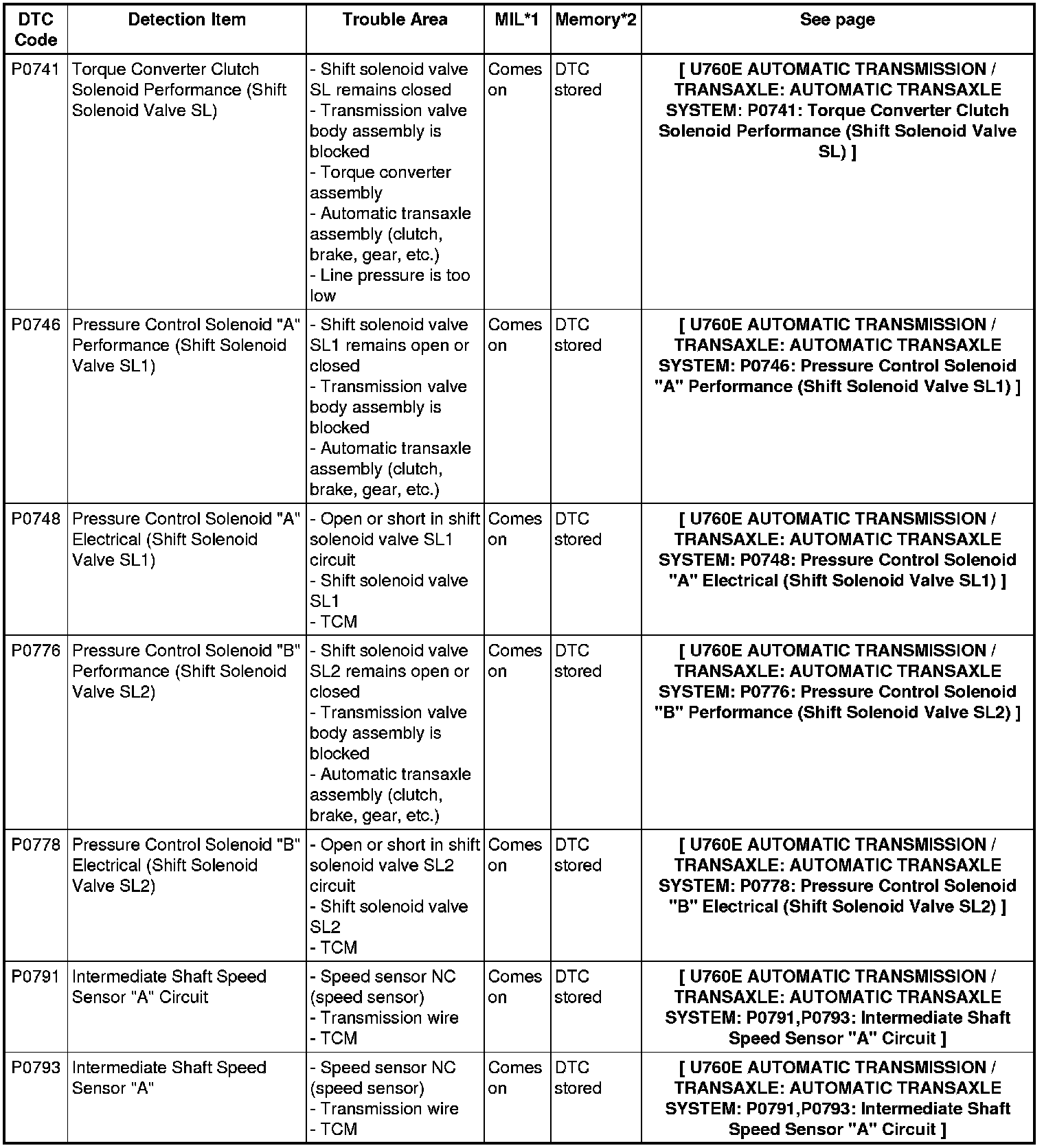

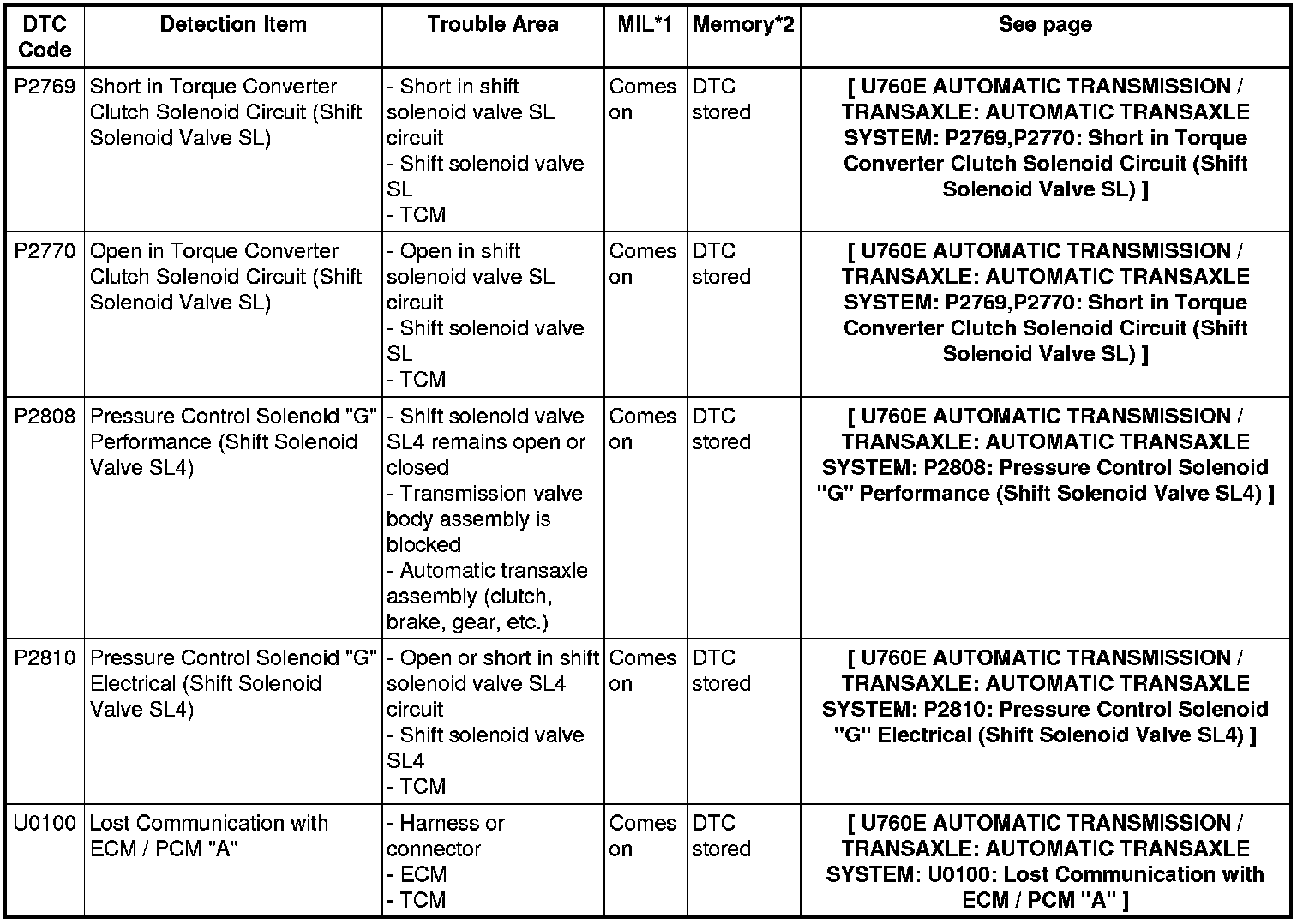

* If a DTC is output during the DTC check, check the parts listed in the table below and proceed to the "See page" given.

* If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Trouble Area" column of the table.

* *1: "Comes on" means the Malfunction Indicator Lamp (MIL) illuminates.

* *2: "DTC stored" means the TCM memorizes the trouble code if the TCM detects the DTC detection condition.

* These DTCs may be output when clutches, brakes, gear components, etc. inside the automatic transaxle are damaged.

Automatic Transaxle System
