C1201

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: C1201: Engine Control System Malfunction
C1201 - Engine Control System Malfunction

DESCRIPTION

If a malfunction is detected in the engine control system, the ECM sends a malfunction signal to the skid control ECU. The skid control ECU stores this DTC and prohibits the following controls:

* VSC

* TRAC





INSPECTION PROCEDURE

PROCEDURE

1. CHECK ENGINE CONTROL SYSTEM

(a) Check if an engine control system DTC is output DTC Check / Clear.

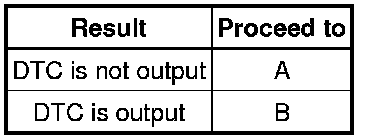

Result





B -- GO TO ENGINE CONTROL (DIAGNOSTIC TROUBLE CODE CHART) Engine Control - SFI System

A -- REPLACE ECM Removal
