Engine Immobilizer System (w/o Smart Key System)

THEFT DETERRENT / KEYLESS ENTRY: ENGINE IMMOBILISER SYSTEM (w/o Smart Key System): B279C: Theft Deterrent System Presence Detection
B279C - Theft Deterrent System Presence Detection

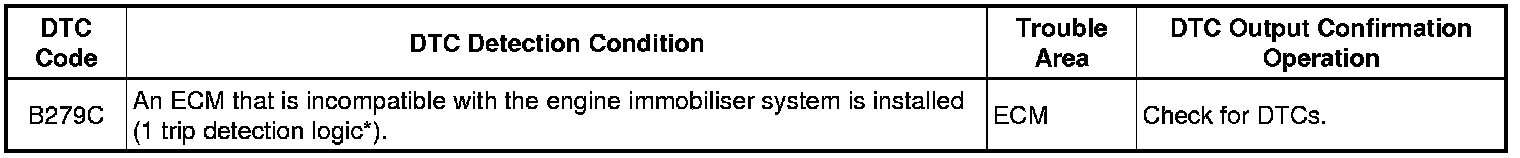

DESCRIPTION

This code is stored when an ECM that is incompatible with the engine immobiliser system is installed to the vehicle.





* *: Only output while a malfunction is present.

Vehicle Condition and Fail-safe Operation when Malfunction Detected





Related Data List and Active Test





INSPECTION PROCEDURE

PROCEDURE

1. REPLACE CURRENT ECM WITH PROPER ECM

(a) Replace the current ECM with a proper ECM Removal.

NEXT -- Continue to next step.

2. REGISTER ECU - ECM COMMUNICATION ID

(a) Register the ECU - ECM communication ID Engine Immobilizer System (w/o Smart Key System).

NEXT -- END
