B278A

THEFT DETERRENT / KEYLESS ENTRY: ENGINE IMMOBILISER SYSTEM (w/ Smart Key System): B278A: Short to GND in Immobiliser System Power Source Circuit
B278A - Short to GND in Immobiliser System Power Source Circuit

DESCRIPTION

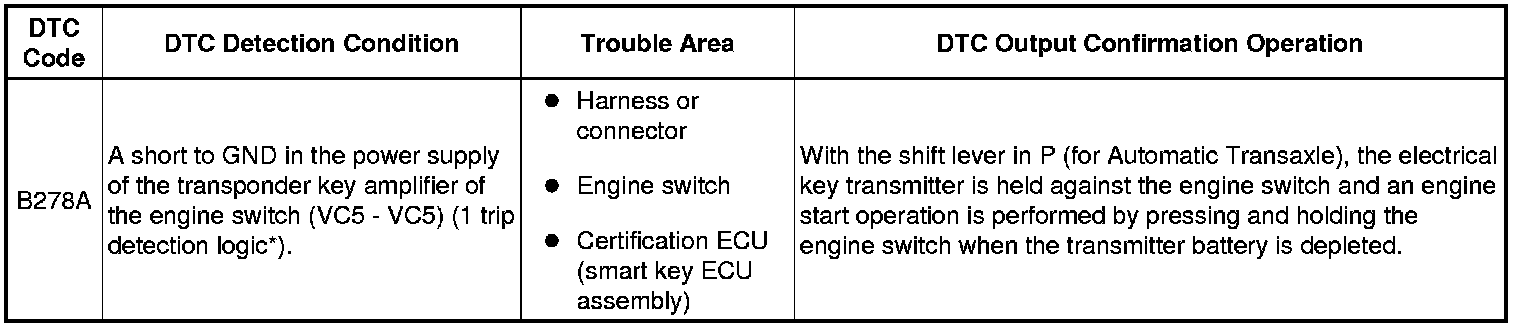

When there is a short to GND in the power supply for the transponder key amplifier of the engine switch, the certification ECU (smart key ECU assembly) stores this DTC.





* *: Only output while a malfunction is present.

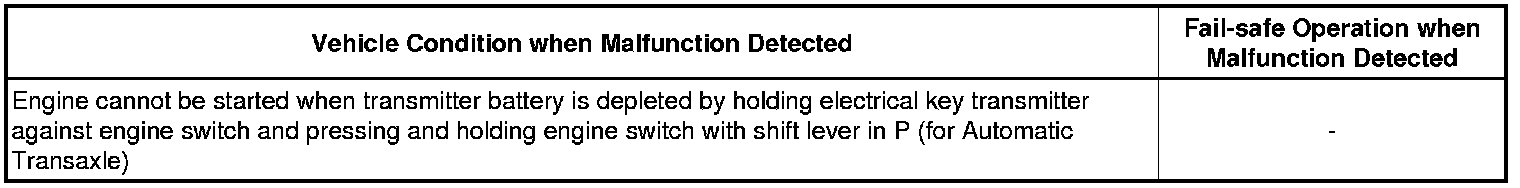

Vehicle Condition and Fail-safe Operation when Malfunction Detected





Related Data List and Active Test

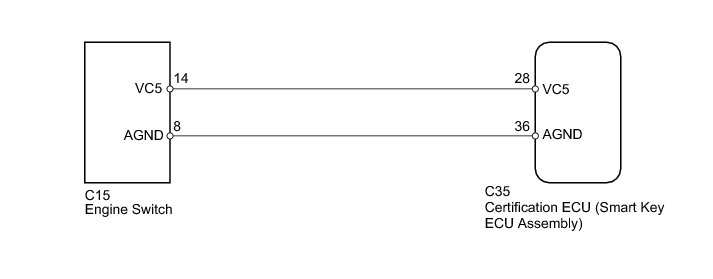

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
* Before replacing the certification ECU (smart key ECU assembly), refer to Registration Engine Immobilizer System (w/ Smart Key System).
* The fixed 5 V power source voltage in the engine switch is output through a resistance from terminal VC5.
* Terminal AGND is grounded through both the engine switch and certification ECU (smart key ECU assembly).
* After performing repairs, perform the operation that fulfills the DTC output confirmation operation, and then confirm that no DTCs are output again.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - ENGINE SWITCH)

(a) Disconnect the C35 certification ECU (smart key ECU assembly) connector.

(b) Disconnect the C15 engine switch connector.

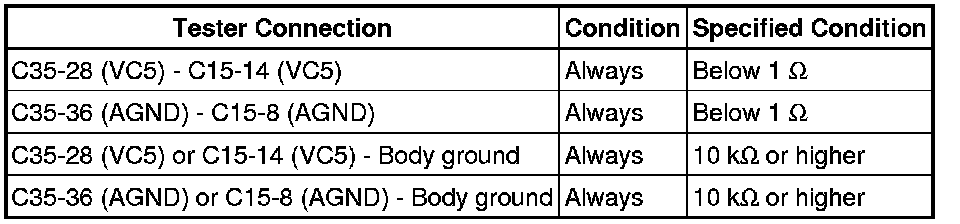

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

2. CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

(a) Using an oscilloscope, check the waveform.





HINT
Perform this inspection on the engine switch side.

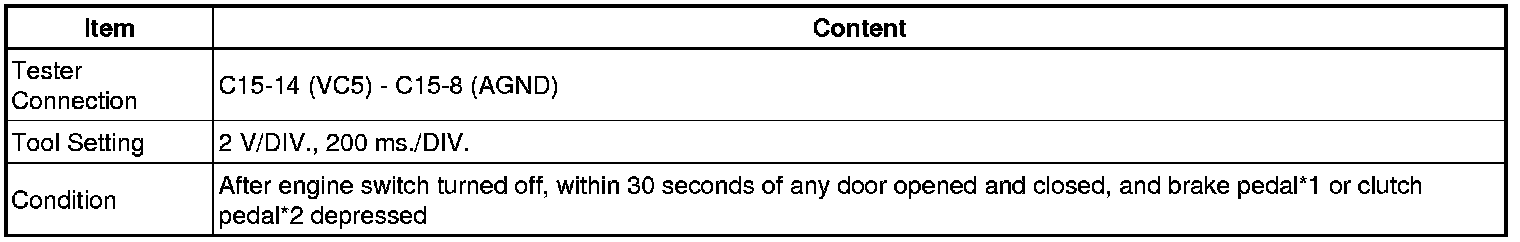

Measurement Condition





*1: for Automatic Transaxle

*2: for Manual Transaxle

OK:

Waveform is output normally (refer to illustration).

Text in Illustration





NG -- REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) Removal

OK -- REPLACE ENGINE SWITCH Removal
