B2342

SLIDING ROOF / CONVERTIBLE: SLIDING ROOF SYSTEM: B2342: Switch Failure
B2342 - Switch Failure

DESCRIPTION

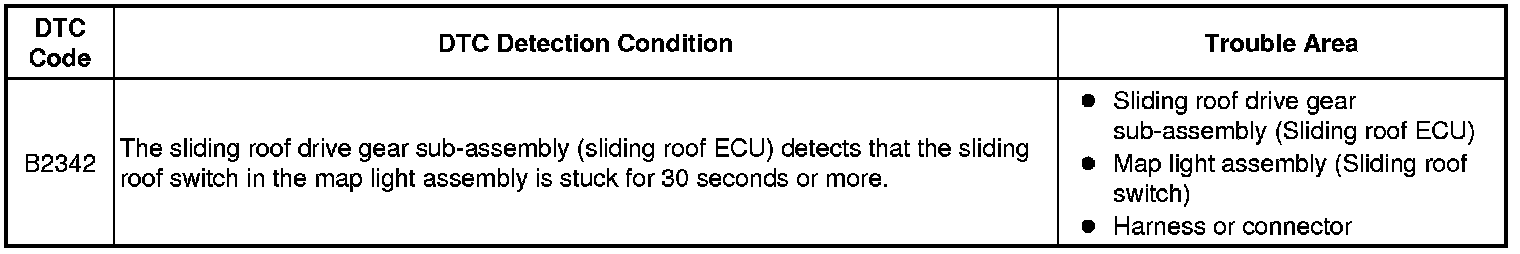

This DTC is stored when the sliding roof drive gear sub-assembly (sliding roof ECU) detects that the sliding roof switch in the map light assembly is stuck for 30 seconds or more.





WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
When the sliding roof drive gear sub-assembly (sliding roof ECU) is removed and reinstalled or replaced, the sliding roof drive gear sub-assembly (sliding roof ECU) must be initialized Programming and Relearning.

PROCEDURE

1. CHECK FOR DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

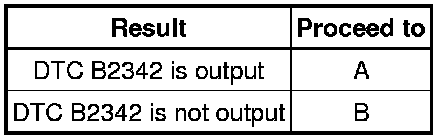

Result





B -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
A -- Continue to next step.

2. READ VALUE USING TECHSTREAM (SLIDING ROOF)

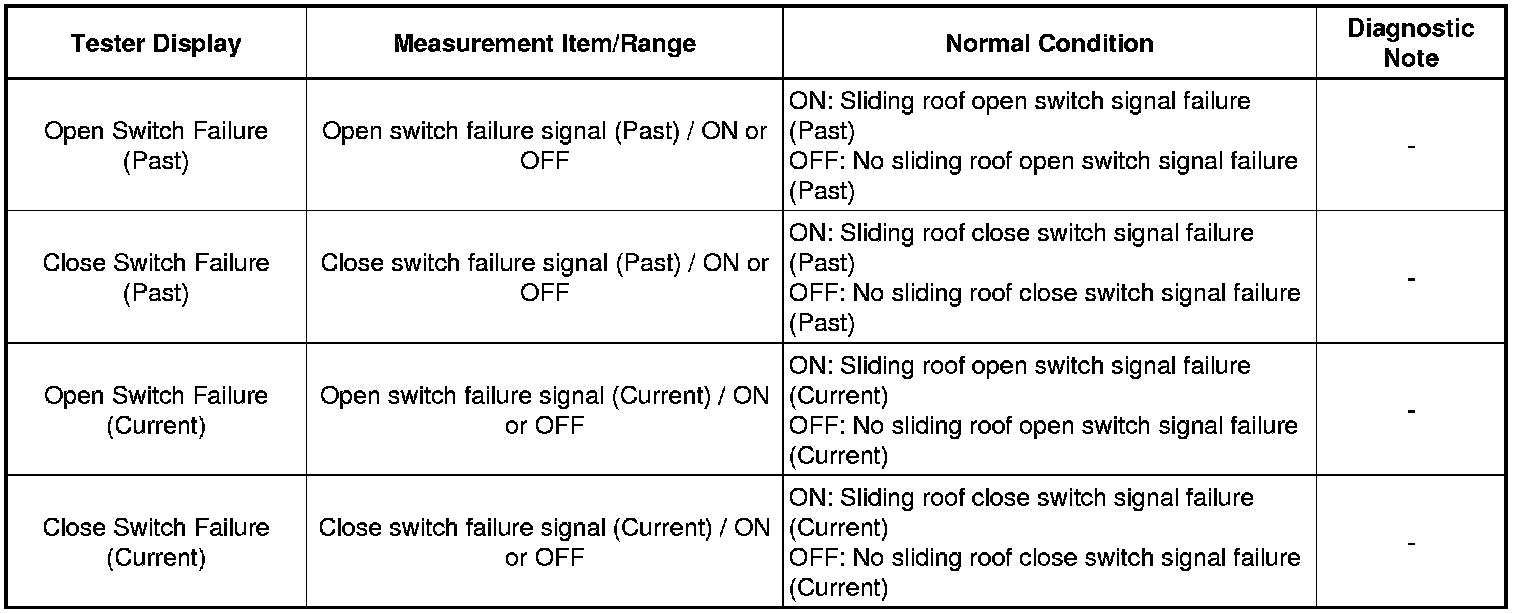

(a) Using the Techstream, read the Data List Scan Tool Testing and Procedures.

Sliding Roof





OK:

"OFF" appears on the Techstream screen.

NG -- INSPECT MAP LIGHT ASSEMBLY (SLIDING ROOF SWITCH)

OK -- REPLACE SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY (SLIDING ROOF ECU) Removal

3. INSPECT MAP LIGHT ASSEMBLY (SLIDING ROOF SWITCH)

(a) Remove the map light assembly Removal.

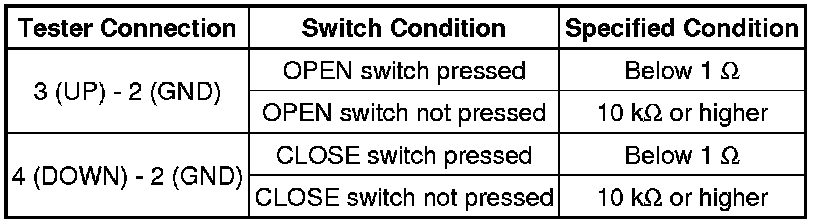

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPLACE MAP LIGHT ASSEMBLY (SLIDING ROOF SWITCH) Removal
OK -- Continue to next step.

4. CHECK HARNESS AND CONNECTOR (SLIDING ROOF ECU - SLIDING ROOF SWITCH AND BODY GROUND)

(a) Disconnect the K3 ECU connector.

(b) Disconnect the K2 switch connector.

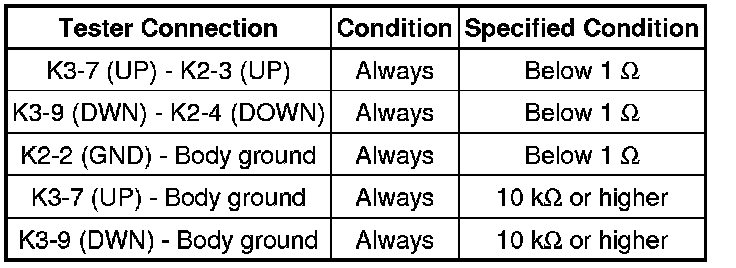

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY (SLIDING ROOF ECU) Removal
