Electrical Specifications

SERVICE SPECIFICATIONS: U341E AUTOMATIC TRANSAXLE: SERVICE DATA

Speed Sensor:

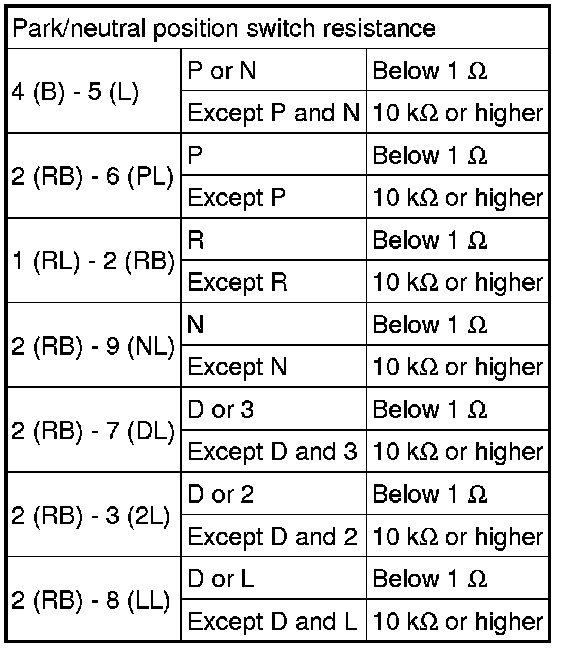

Park/Neutral Position Switch:

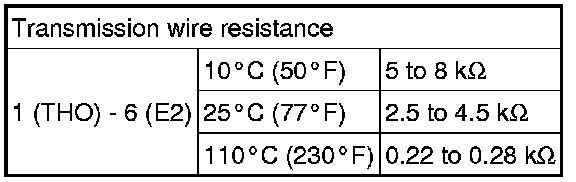

Transmission Wire:

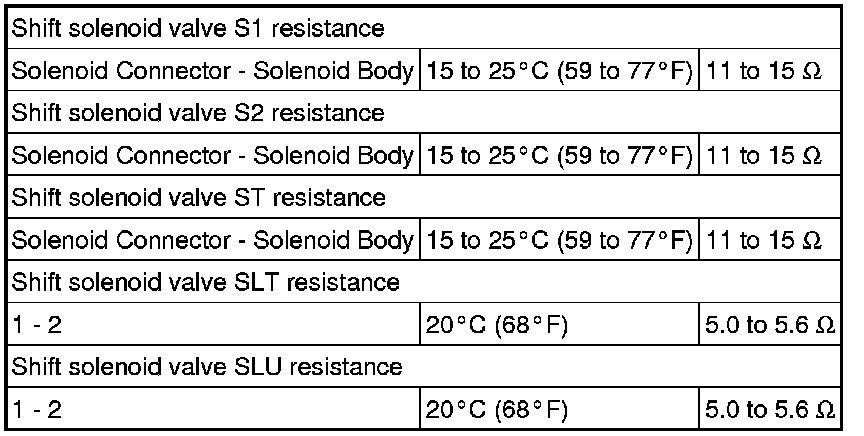

Valve Body Assembly:

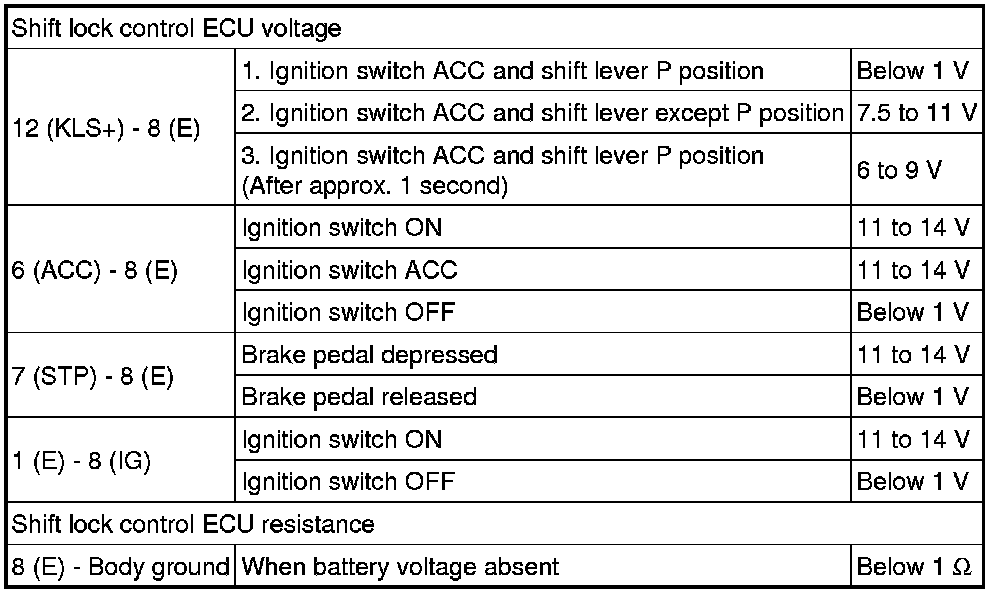

Shift Lever:
