SERVICE SPECIFICATIONS:
POWER STEERING

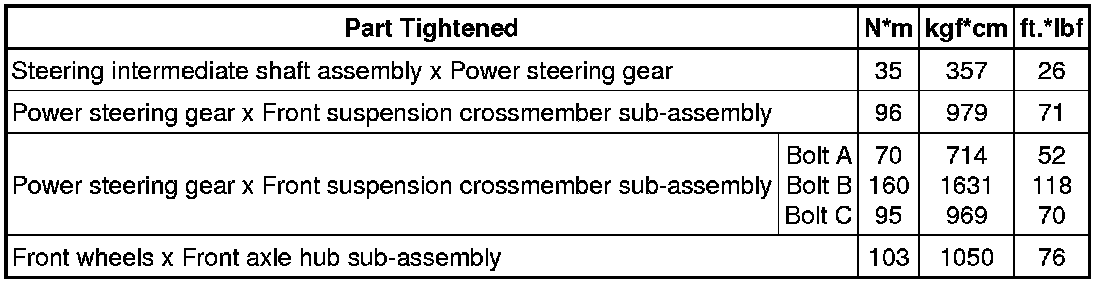

: TORQUE SPECIFICATIONS
Power Steering Gear::
Power Steering ECU::
