SERVICE SPECIFICATIONS: ENGINE
HOOD
/ DOOR: TORQUE SPECIFICATIONS

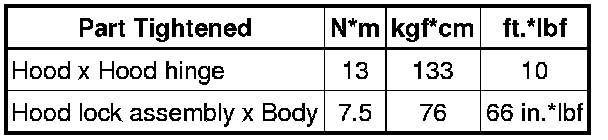

HOOD:
HOOD LOCK CONTROL CABLE ASSEMBLY:

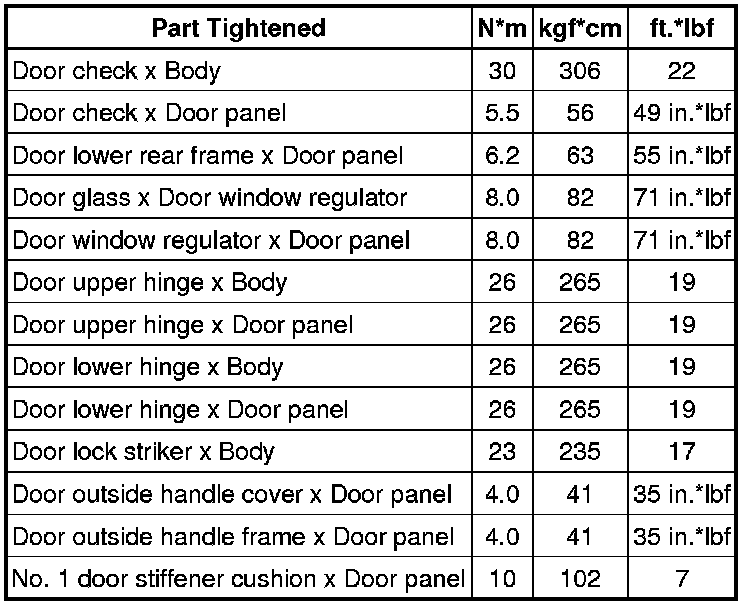

FRONT DOOR:

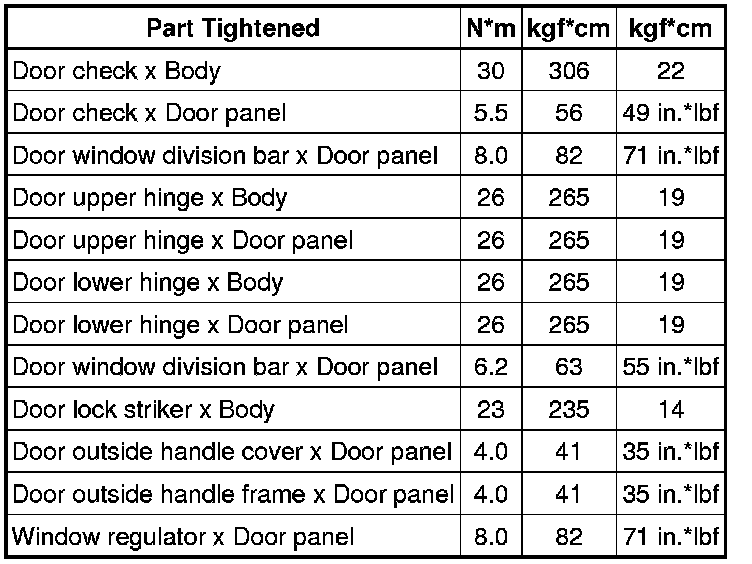

REAR DOOR:

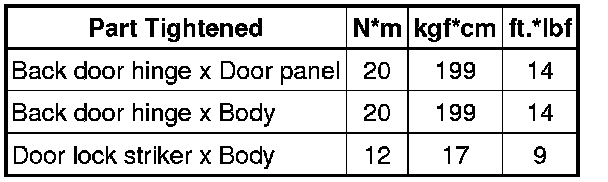

BACK DOOR:
BACK DOOR SUPPORT:
