Specifications
>>
Fluid Type Specifications
>>
Engine Lubrication
>>
System Specifications
System Specifications
PREPARATION: 2ZR-FE LUBRICATION: LUBRICANT

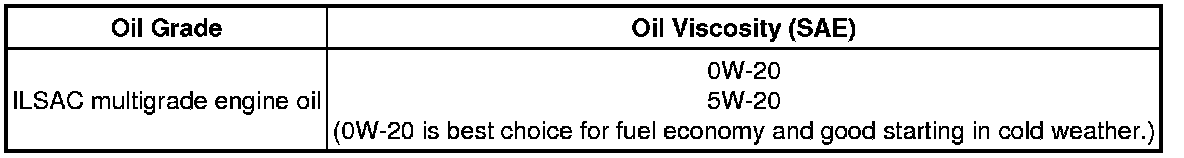

Standard Oil Grade (for USA):
Standard Oil Grade (for Canada):

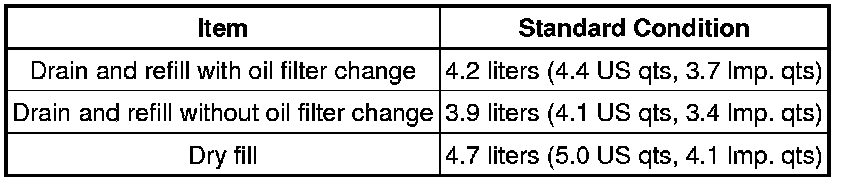

Standard Oil Capacity:
