Home >> Scion >> 2010 >> xD L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Heating and Air Conditioning

Heating and Air Conditioning

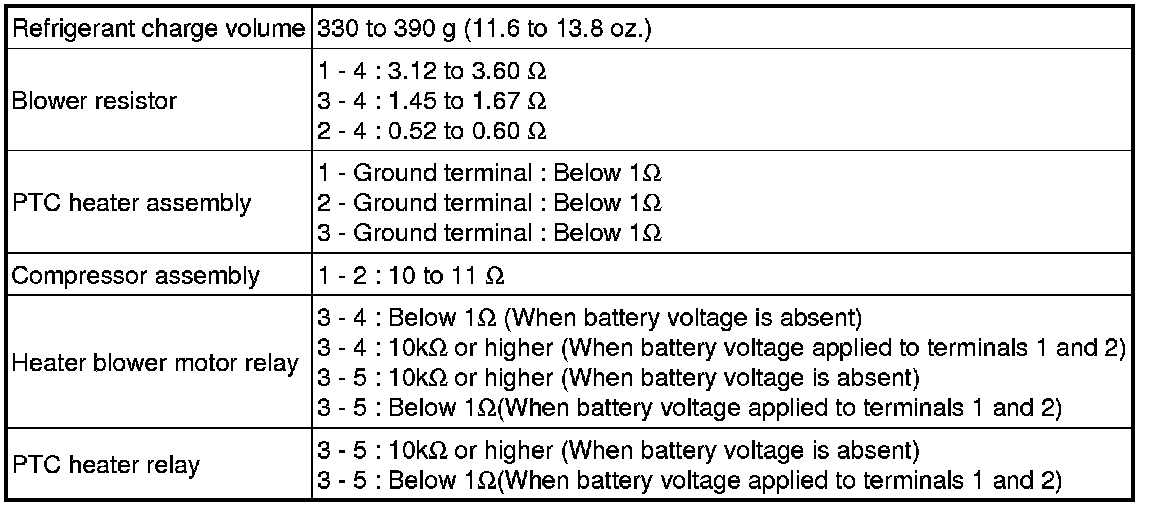

SERVICE SPECIFICATIONS: AIR CONDITIONING: SERVICE DATA
