Oil Pressure Sender: Testing and Inspection

2ZR-FE LUBRICATION: OIL PRESSURE SWITCH: INSPECTION

1. INSPECT ENGINE OIL PRESSURE SWITCH ASSEMBLY

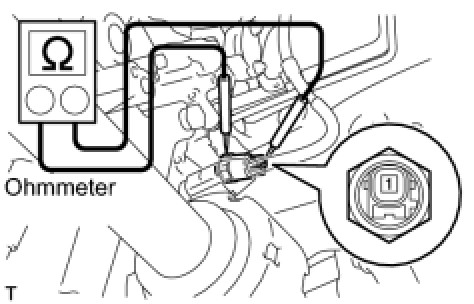

(a) Check the resistance.

(1) Disconnect the engine oil pressure switch connector.

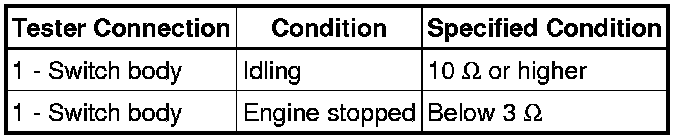

(2) Measure the resistance according to the value(s) in the table below.





Standard resistance:





HINT
If the value is not as specified, replace the engine oil pressure switch assembly.
