Removal

SEAT BELT: REAR CENTER SEAT INNER BELT ASSEMBLY (for RH Side): REMOVAL

NOTICE:
Always use "TORX" socket wrench E10 when removing the rear seat.

1. REMOVE NO. 1 REAR SEAT LEG COVER Removal

2. REMOVE NO. 2 REAR SEAT LEG COVER Removal

3. REMOVE REAR SEAT ASSEMBLY Removal

4. REMOVE REAR CENTER SEAT INNER BELT ASSEMBLY

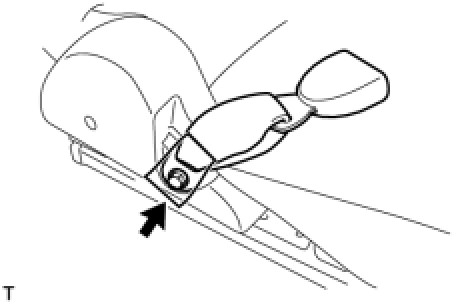

(a) Remove the bolt and the rear center seat inner belt.
