SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: PROBLEM SYMPTOMS TABLE
HINT
Proceed to the troubleshooting for each circuit in the table below.

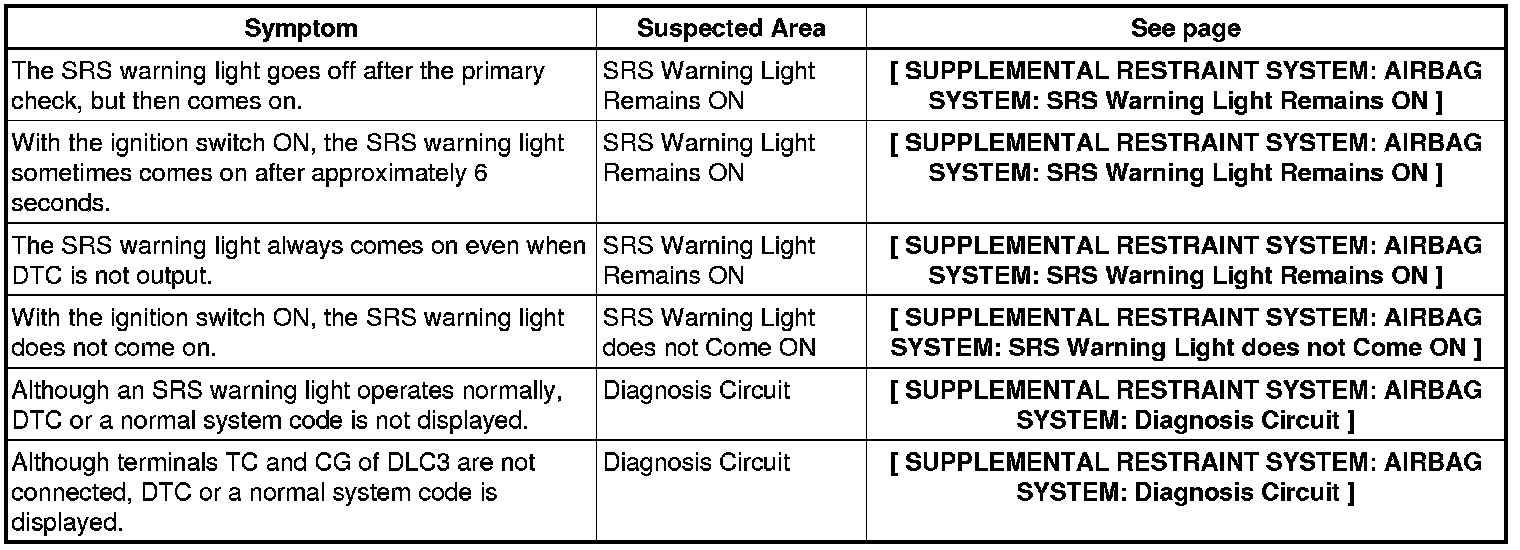

Airbag system::
