Installation

SUPPLEMENTAL RESTRAINT SYSTEM: REAR AIRBAG SENSOR: INSTALLATION

CAUTION:
Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing Service Precautions.

NOTICE:
Always use "TORX" socket wrench E10 when installing the rear seat.

HINT
The procedure described below is for the RH side. Use the same procedure for both the LH and RH sides, unless otherwise specified.

1. INSTALL REAR AIRBAG SENSOR

(a) Confirm that the ignition switch is turned to OFF.

(b) Confirm that the negative battery terminal is detached.

CAUTION:
* Confirm that the negative battery terminal is disconnected before performing the operation. Even an impact to only the airbag sensor will cause the airbag to deploy.
(c) Insert the hook into the body hole and install the airbag sensor with the bolt.

Torque : 9.0 Nm (90 kgf-cm, 80 in-lbf)

NOTICE:
* Do not use a rear airbag sensor that has been dropped.
* Do not subject the rear airbag sensor to any impact or force.
(d) Confirm that there is no looseness by shaking the rear airbag sensor.

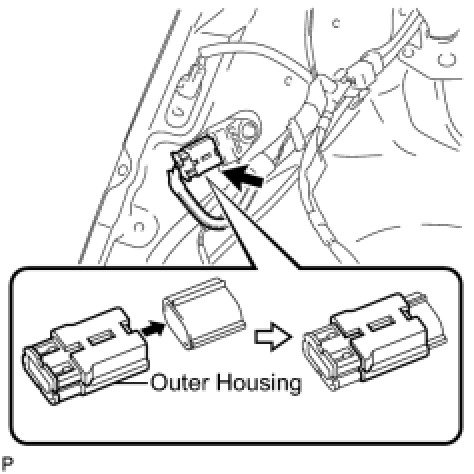

(e) Connect the airbag connector.





2. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH

(a) Engage the 3 clips and the 6 claws and install the deck trim side panel.





(b) Tighten the screw.

HINT
When installing the rear seat outer belt assembly RH, connect the room light connector and install the deck trim side panel assembly RH.

3. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY Installation

4. INSTALL REAR SEAT OUTER BELT ASSEMBLY RH Installation

5. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH





(a) Install the rear door opening trim weatherstrip.

6. INSTALL REAR DOOR SCUFF PLATE RH Installation

7. INSTALL REAR DECK TRIM COVER Installation

8. INSTALL REAR SEAT ASSEMBLY LH Installation

9. INSTALL REAR SEAT ASSEMBLY RH Installation

10. INSTALL NO. 1 REAR SEAT LEG COVER RH Installation

11. INSTALL NO. 1 REAR SEAT LEG COVER LH Installation

12. INSTALL NO. 2 REAR SEAT LEG COVER LH Installation

13. INSTALL DECK BOARD ASSEMBLY Installation

14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

15. INSPECT SRS WARNING LIGHT

Diagnosis System
