Removal

2ZR-FE ENGINE CONTROL SYSTEM: INTEGRATION RELAY: REMOVAL

1. REMOVE NO. 1 RELAY BLOCK COVER

2. REMOVE INTEGRATION NO.1 RELAY

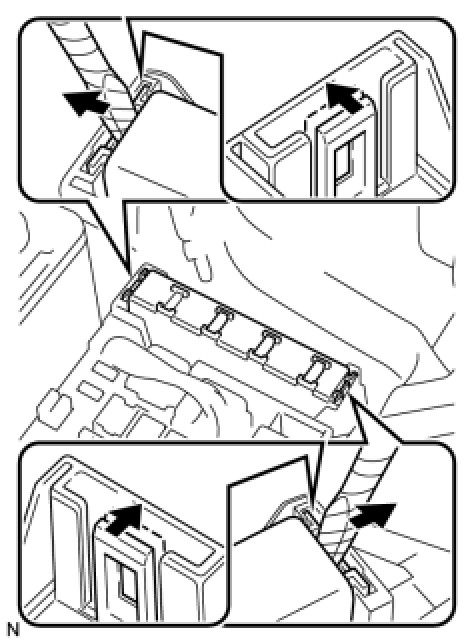

(a) Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and disconnect the integration relay.

(b) Disconnect the 3 connectors.
