Scion
>>
2010
>>
xD L4-1.8L (2ZR-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Specifications
>>
Mechanical Specifications
>>
Intake
Intake

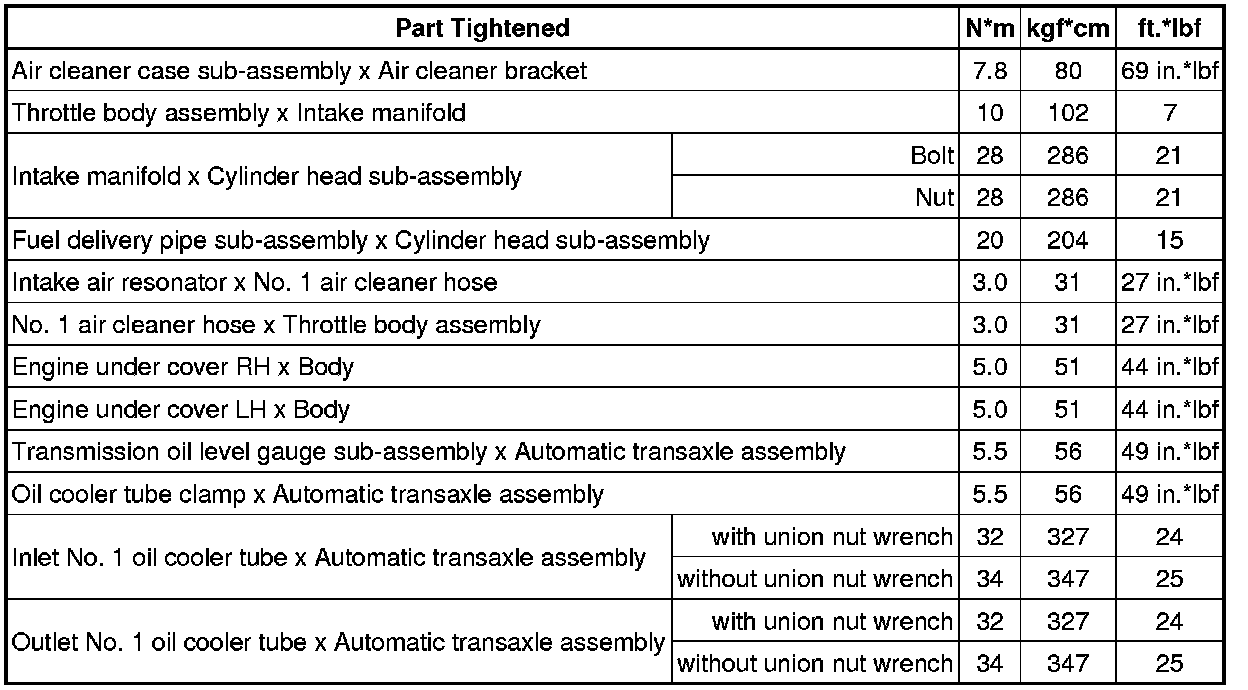

SERVICE SPECIFICATIONS: 2ZR-FE INTAKE: TORQUE SPECIFICATIONS
