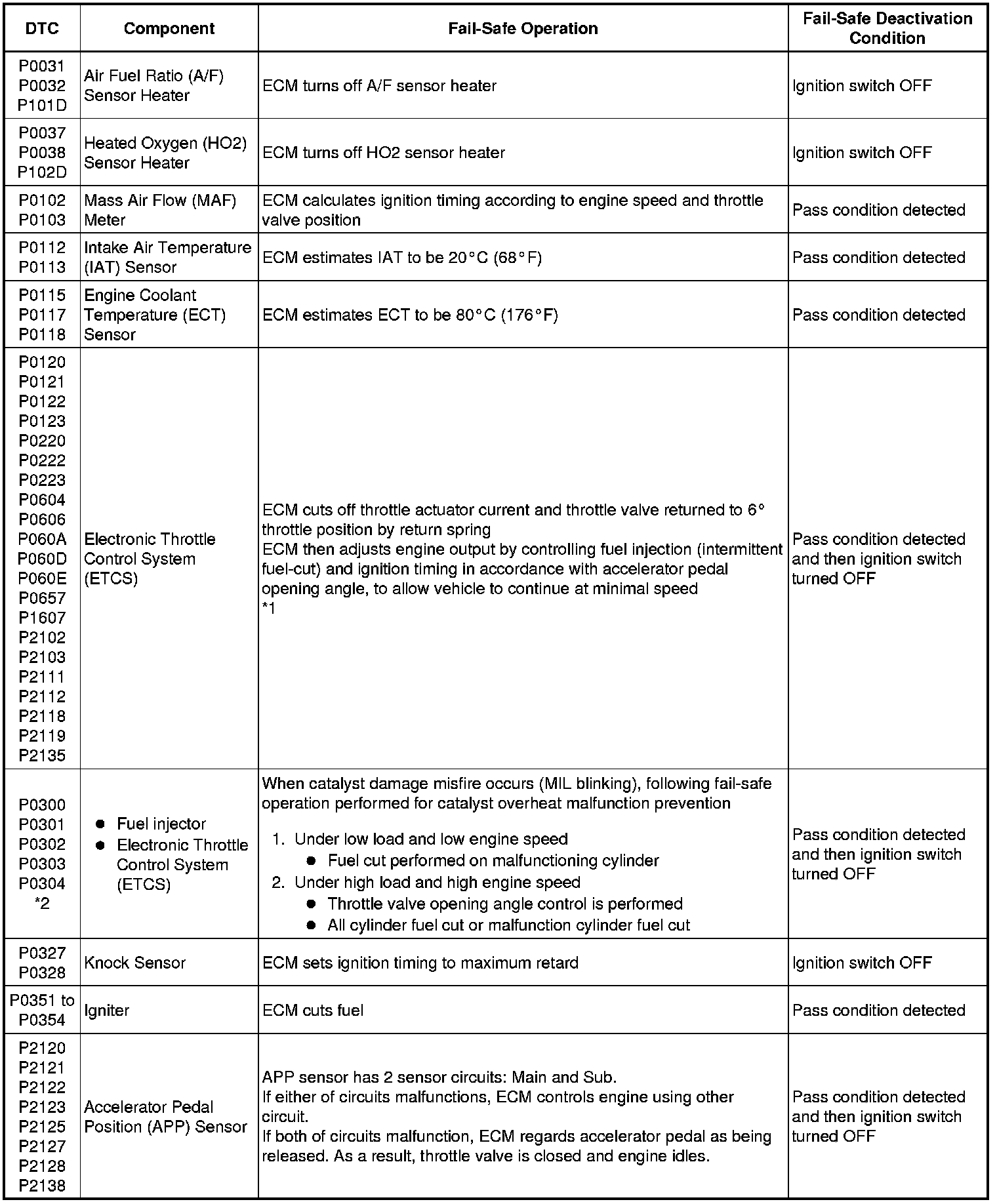

Fail-Safe Chart

2ZR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: FAIL-SAFE CHART

If any of the following DTCs are set, the ECM enters fail-safe mode to allow the vehicle to be driven temporarily or stops fuel injection.





HINT
* *1: The vehicle can be driven slowly when the accelerator pedal is depressed firmly and slowly. If the accelerator pedal is depressed quickly, the vehicle may speed up and slow down erratically.
* *2: Misfire related fail-safe operations occur when catalyst overheat malfunctions occur.
