Center Airbag Sensor Communication Stop Mode

CAN COMMUNICATION: CAN COMMUNICATION SYSTEM: Center Airbag Sensor Communication Stop Mode
- Center Airbag Sensor Communication Stop Mode

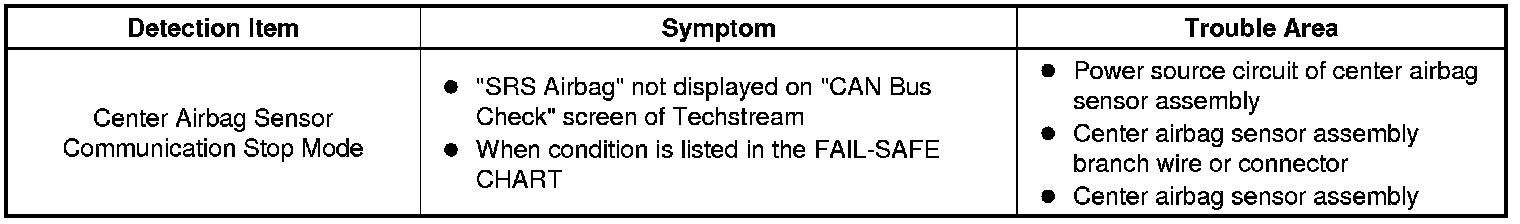

DESCRIPTION

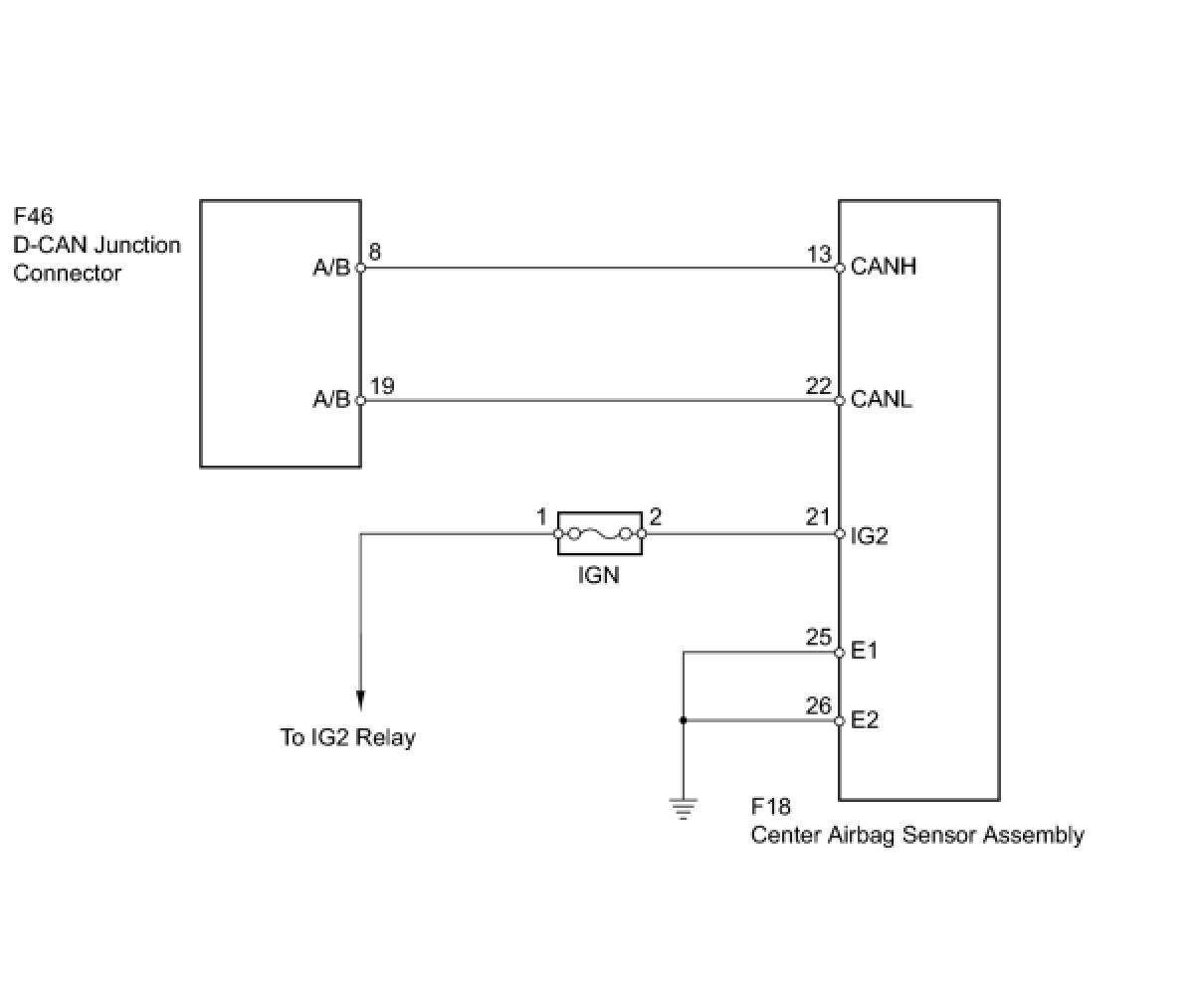

WIRING DIAGRAM

INSPECTION PROCEDURE

NOTICE:
* Turn the ignition switch off before measuring the resistances of the CAN main wire and the CAN branch wire.
* After the ignition switch is turned off, check that the key reminder warning system and light reminder warning system are not in operation.
* Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, any other switches or the doors. If doors need to be opened in order to check connectors, open the doors and leave them open.
HINT
Operating the ignition switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.

PROCEDURE

1. CHECK CAN BUS LINE FOR DISCONNECTION (CENTER AIRBAG SENSOR ASSEMBLY BRANCH WIRE)

(a) Turn the ignition switch off.

(b) Disconnect the F18 center airbag sensor assembly connector.

(c) Measure the resistance according to the value in the table below.

Standard resistance:

(d) Reconnect the center airbag sensor assembly connector.

NG -- REPAIR OR REPLACE CAN BRANCH WIRE CONNECTED TO CENTER AIRBAG SENSOR ASSEMBLY (CAN-H, CAN-L)
OK -- Continue to next step.

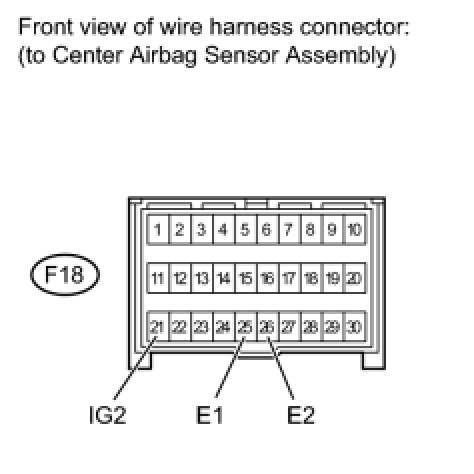

2. CHECK HARNESS AND CONNECTOR (IG2, E1, E2)

(a) Disconnect the F18 center airbag sensor assembly connector.

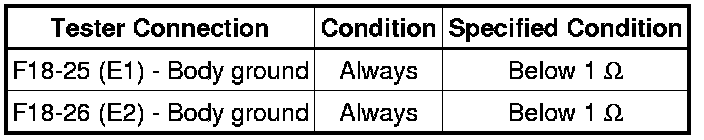

(b) Measure the resistance according to the values in the table below.

Standard resistance:

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY Removal
