Computers and Control Systems: Description and Operation

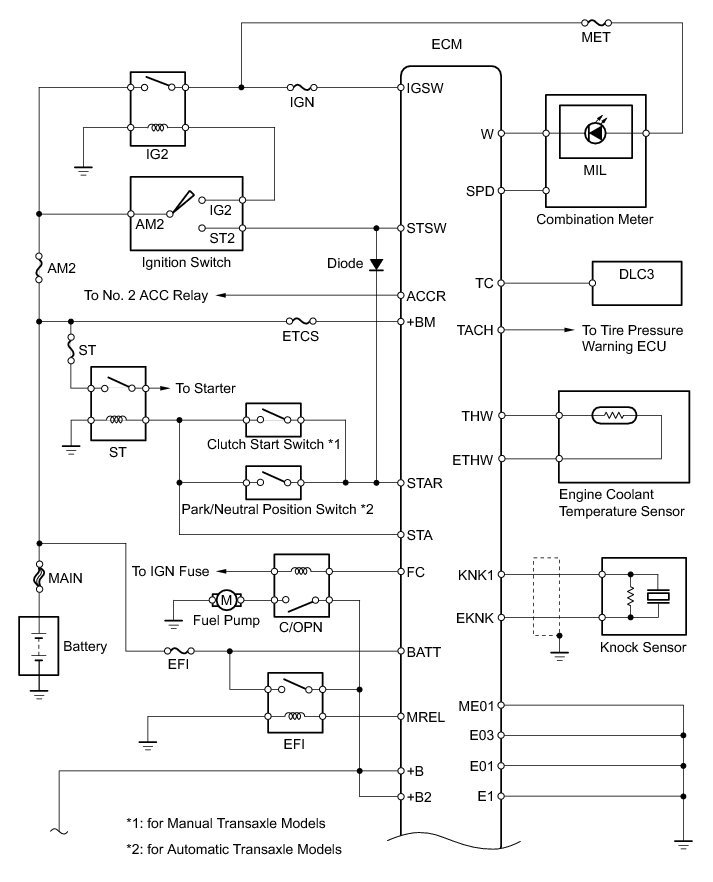

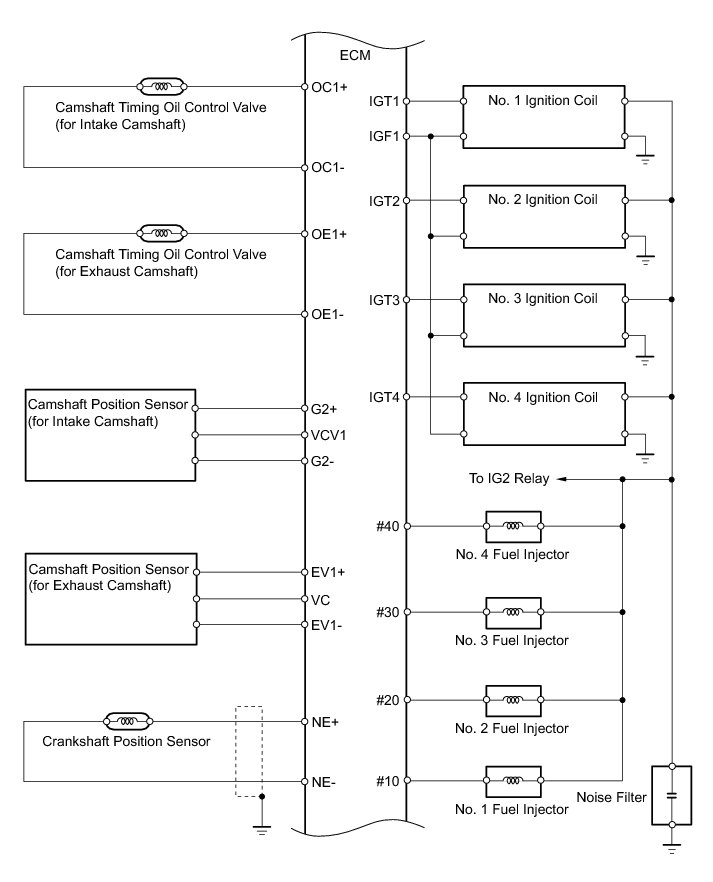

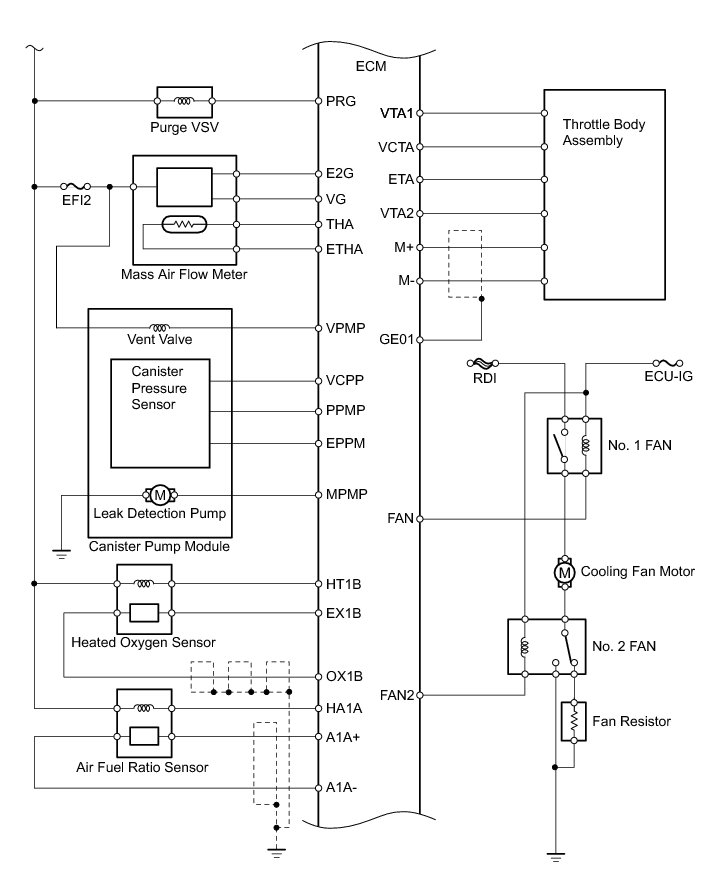

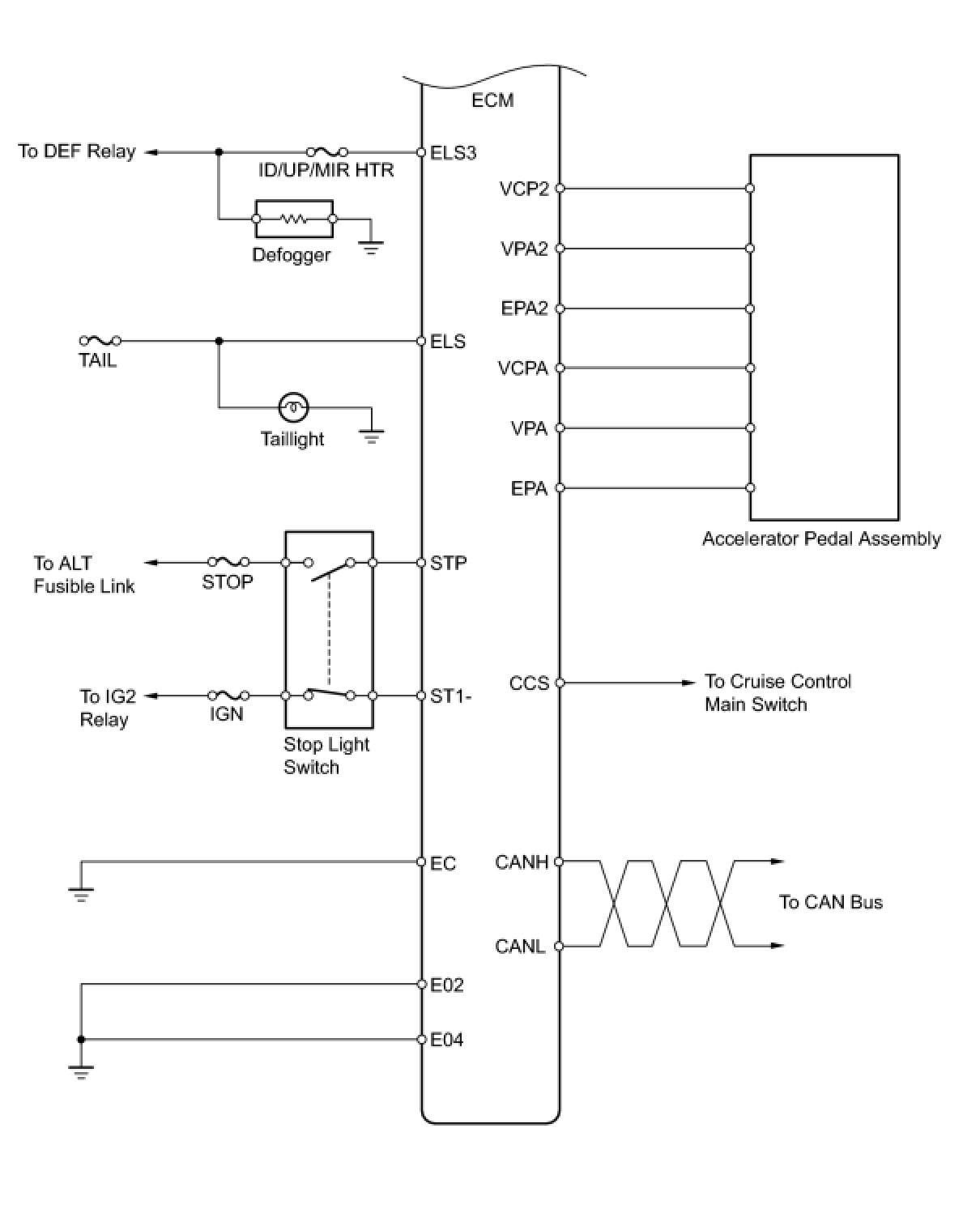

2ZR-FE ENGINE CONTROL SYSTEM: SFI SYSTEM: SYSTEM DIAGRAM
