Replacement

AXLE: REAR AXLE HUB BOLT: REPLACEMENT

1. REMOVE REAR WHEEL

2. REMOVE REAR BRAKE DRUM SUB-ASSEMBLY Removal

3. REMOVE REAR AXLE HUB BOLT

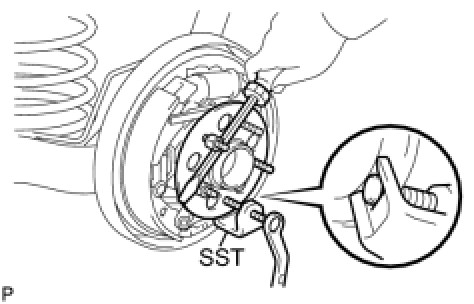

(a) Using SST and a screwdriver or the equivalent, remove the hub bolt.

SST : 09628-10011

4. INSTALL REAR AXLE HUB BOLT

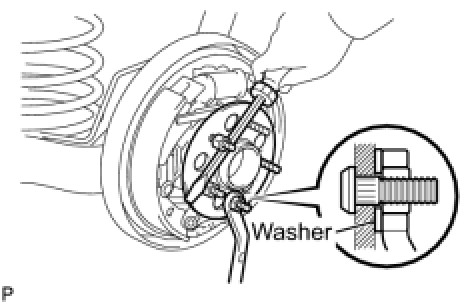

(a) Install the washer and the nut onto a new hub bolt as shown in the illustration.

(b) Using a screwdriver or the equivalent to hold the hub and bearing, install the hub bolt by tightening the nut.

5. INSTALL REAR BRAKE DRUM SUB-ASSEMBLY

6. ADJUST REAR DRUM BRAKE SHOE CLEARANCE Installation

7. INSTALL REAR WHEEL

Torque : 103 Nm (1050 kgf-cm, 76 ft-lbf)
