Replacement

AXLE: FRONT AXLE HUB BOLT: REPLACEMENT

1. REMOVE FRONT WHEEL

2. SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY Removal

3. REMOVE FRONT DISC

4. REMOVE FRONT AXLE HUB BOLT

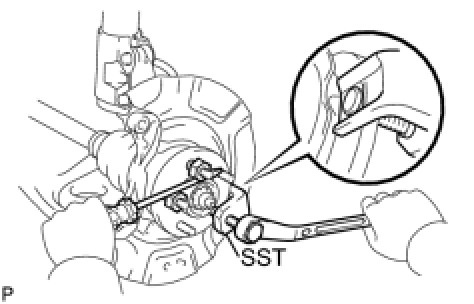

(a) Using SST and a screwdriver or the equivalent to hold the axle hub, remove the hub bolt.

SST : 09628-10011

5. INSTALL FRONT AXLE HUB BOLT

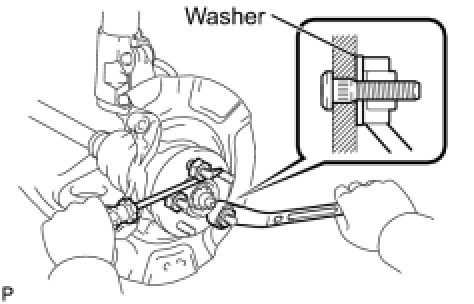

(a) Install the washer and the nut onto a new hub bolt, as shown in the illustration.

(b) Using a screwdriver or the equivalent to hold the axle hub, install the hub bolt by tightening the nut.

6. INSTALL FRONT DISC

7. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY Installation

8. INSTALL FRONT WHEEL

Torque : 103 Nm (1050 kgf-cm, 76 ft-lbf)
