xD L4-1.8L (2ZR-FE)
>>
Repair and Diagnosis
>>
Locations
>>
Ground Locations
>>

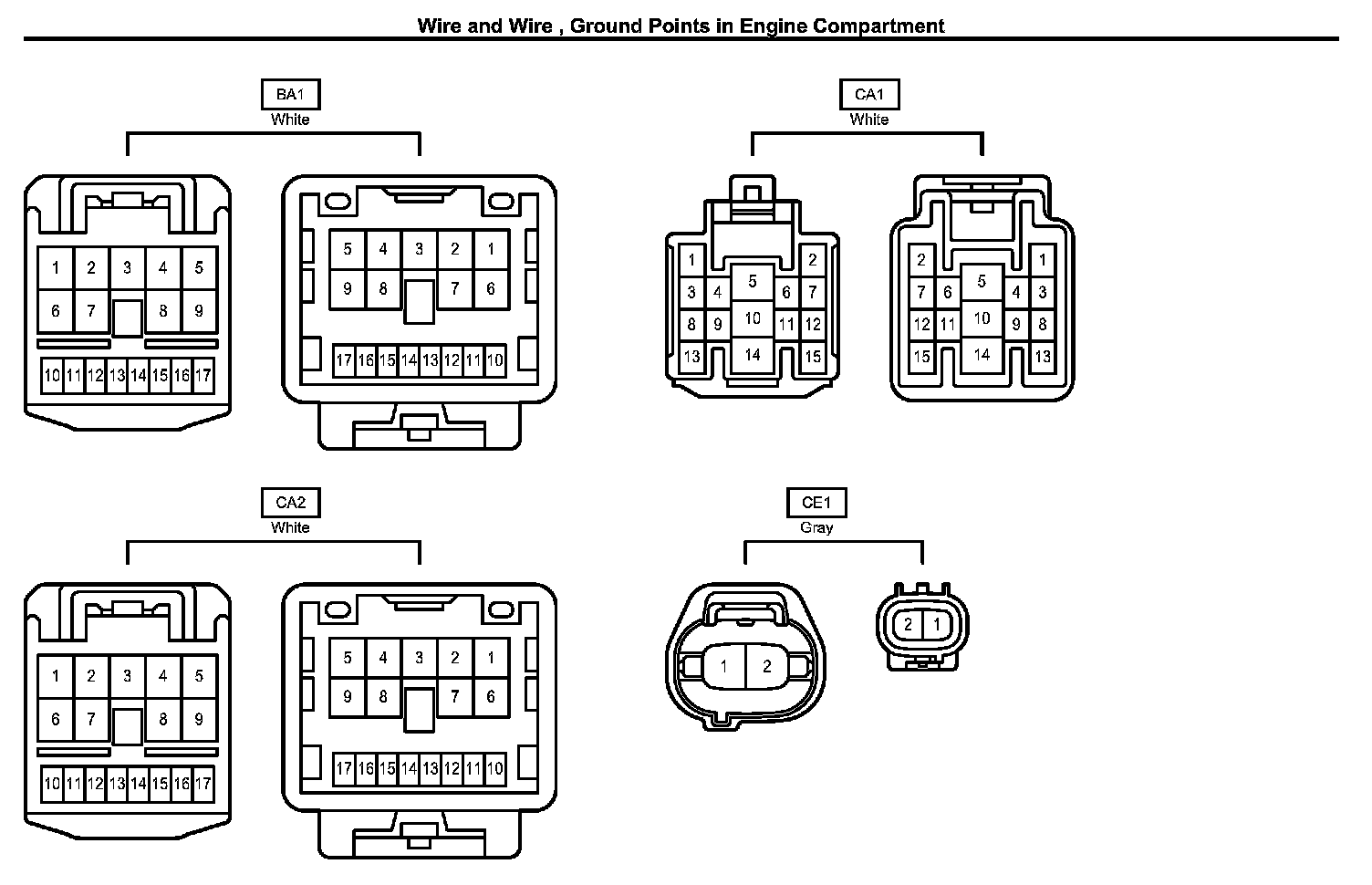

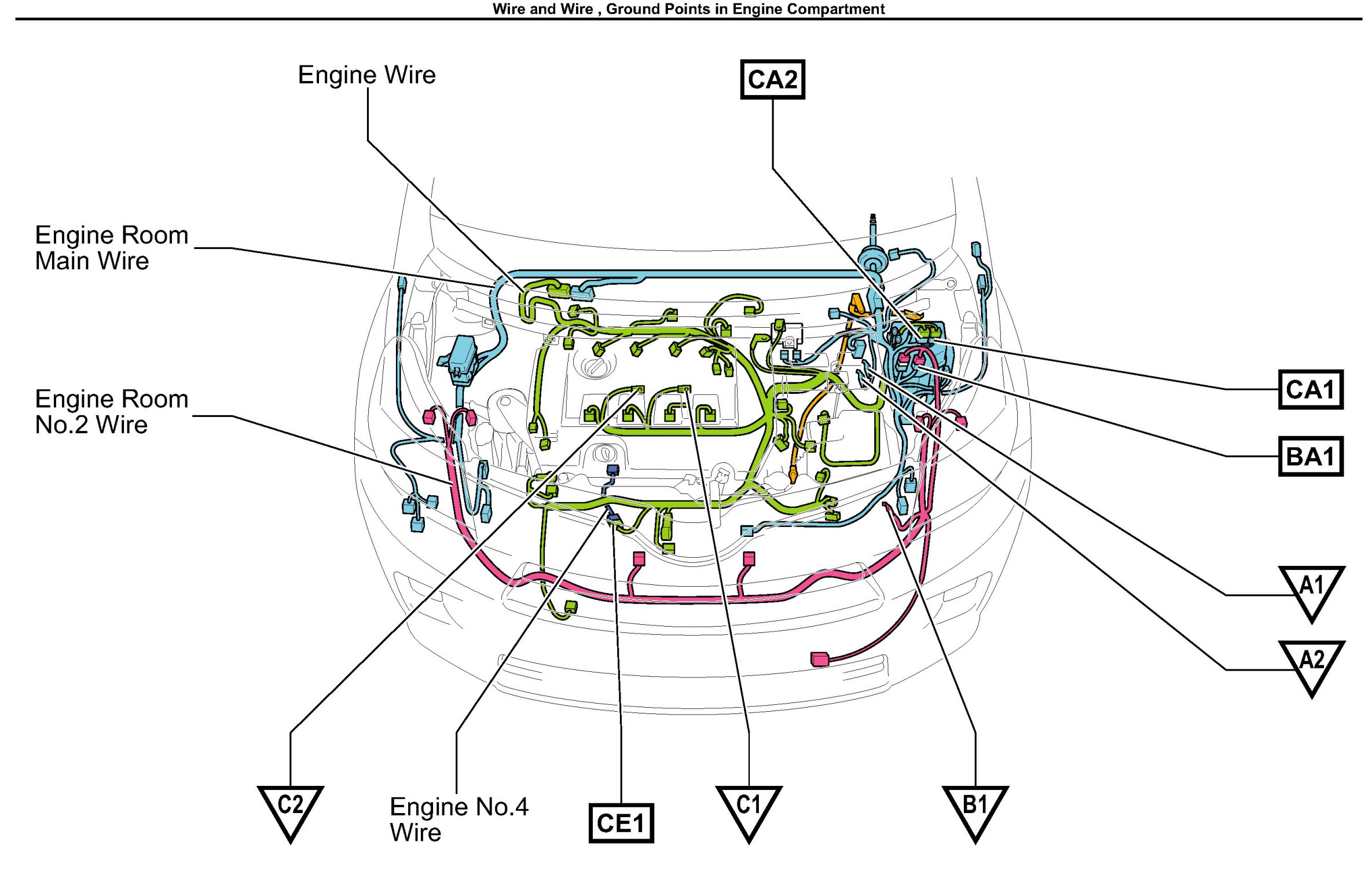

Wire and Wire, Ground Points In Engine Compartment
Wire and Wire, Ground Points In Engine Compartment
A1-C2, BA1-CE1:
BA1-CE1:
