High Pitched Horn

HORN: HIGH PITCHED HORN: INSPECTION

1. INSPECT HIGH PITCHED HORN ASSEMBLY

(a) Check the operation.

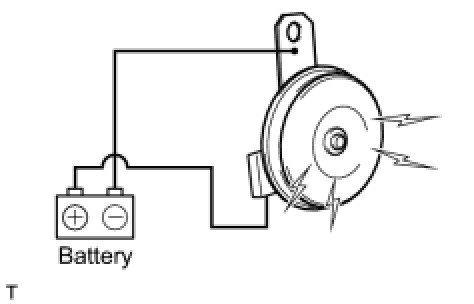

(1) Apply battery voltage to the horn, and check that the horn sounds.

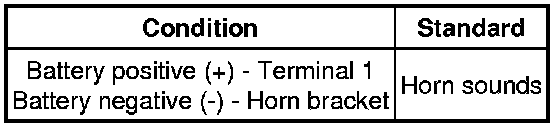

OK:





(2) If the result is not as specified, replace the low pitched horn.
