Lighting and Horns: Description and Operation

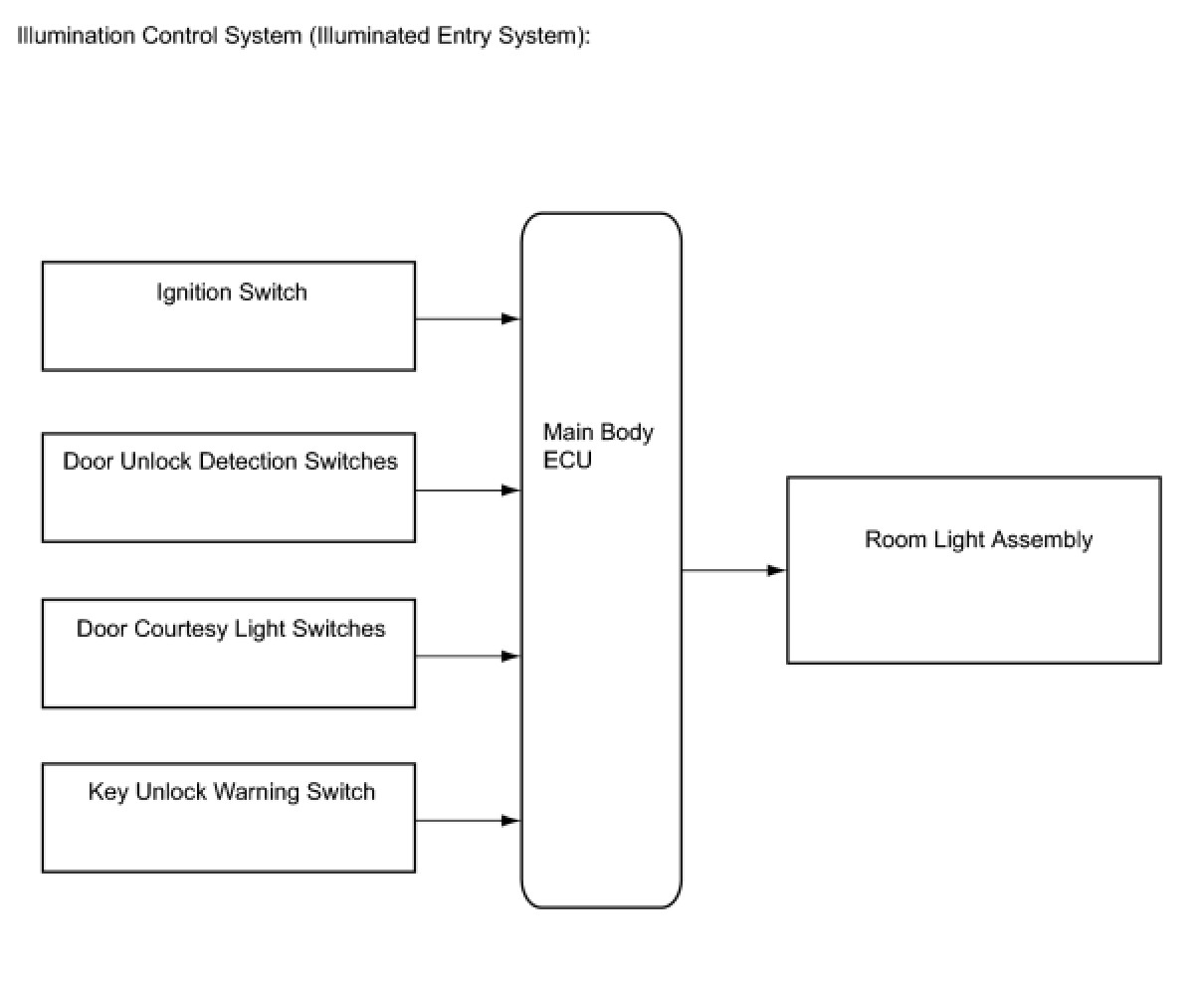

LIGHTING: LIGHTING SYSTEM: SYSTEM DIAGRAM










LIGHTING: LIGHTING SYSTEM: SYSTEM DESCRIPTION

1. ILLUMINATION CONTROL SYSTEM (Illuminated entry system):

* The illuminated entry system provides convenience when getting in or out of the vehicle at night. This system controls the room light.

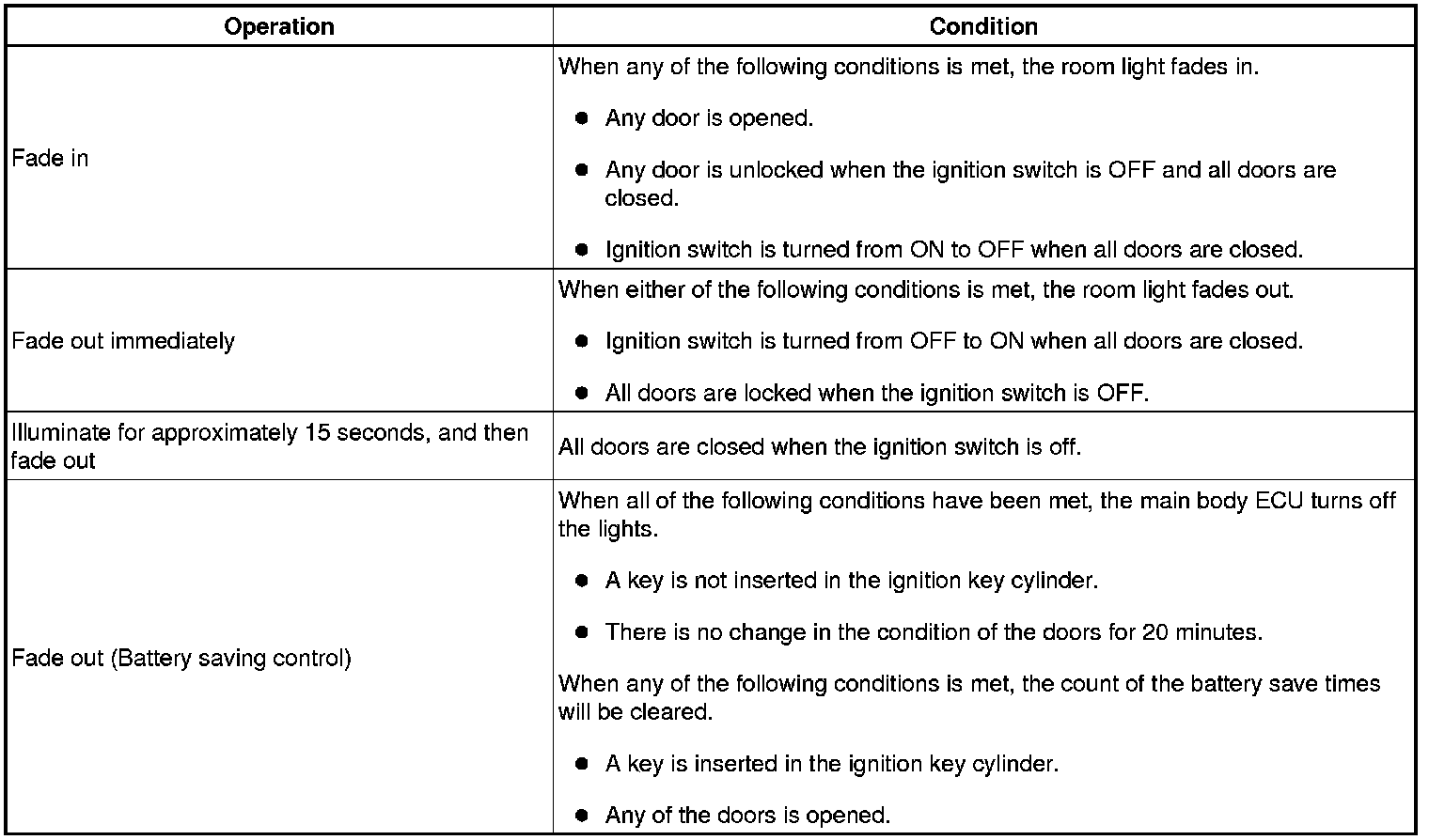

* This function is controlled by the main body ECU. The operation and condition of this control are described below.
