How To Proceed With Troubleshooting

METER: METER / GAUGE SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* Use these procedures to troubleshoot the meter / gauge system.
* *: Use a Techstream.
1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. INSPECT BATTERY VOLTAGE

Standard voltage:

11 to 14 V

HINT
If the voltage is below 11 V, recharge or replace the battery before proceeding.

NEXT -- Continue to next step.

3. CHECK COMMUNICATION FUNCTION OF CAN COMMUNICATION SYSTEM (CAN)*

(a) Use a Techstream to check if the CAN communication system is functioning normally.

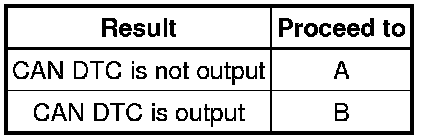

Result:





B -- GO TO CAN COMMUNICATION SYSTEM
A -- Continue to next step.

4. PROBLEM SYMPTOMS TABLE

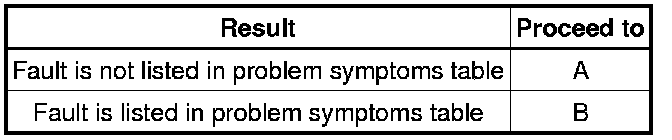

Result:





B -- Go to step 6
A -- Continue to next step.

5. OVERALL ANALYSIS AND TROUBLESHOOTING*

(a) DATA LIST / ACTIVE TEST Meter / Gauge System

(b) Terminals of ECU Meter / Gauge System

(c) On-vehicle Inspection On-Vehicle Inspection

NEXT -- Continue to next step.

6. REPAIR OR REPLACE

NEXT -- Continue to next step.

7. CONFIRMATION TEST

NEXT -- END
