Fail-Safe Chart

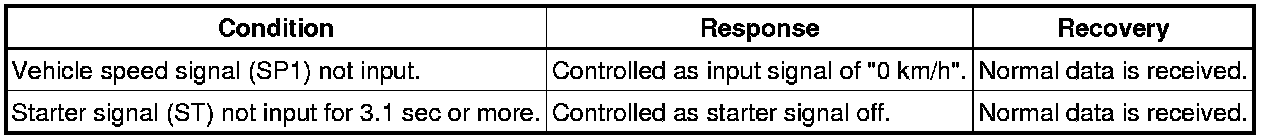

Speedometer:

Tachometer:

Fuel Gauge:

Shift Indicator:

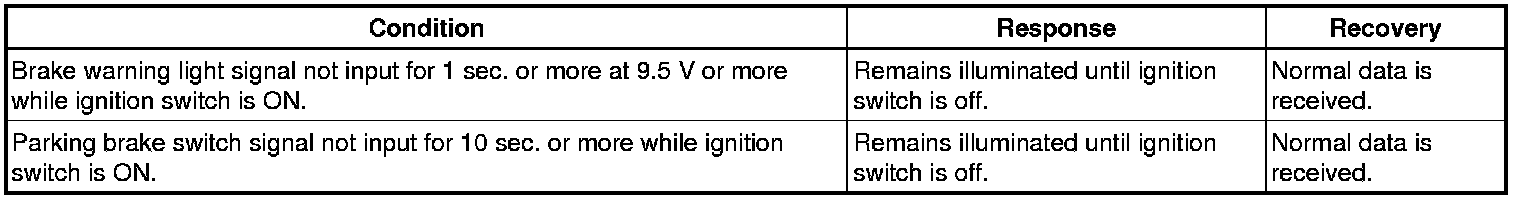

BRAKE:

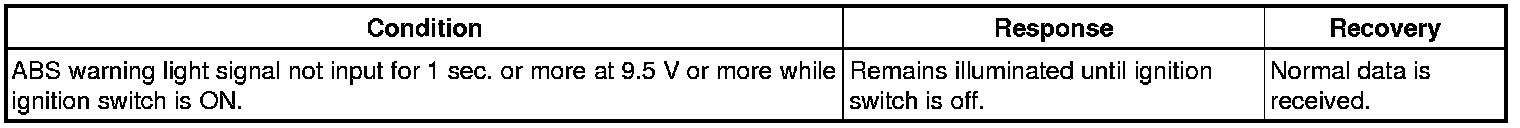

ABS:

OIL PRESSURE:

CHECK E/G:

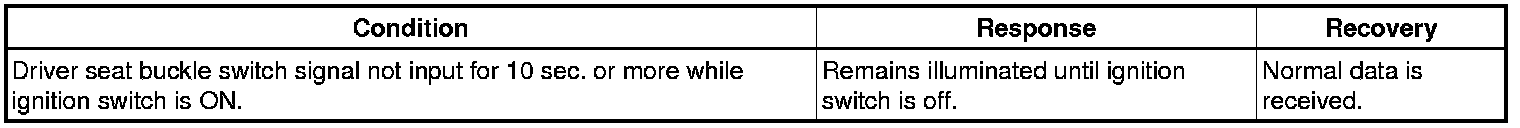

DRIVER SIDE SEAT BELT:

AIRBAG:

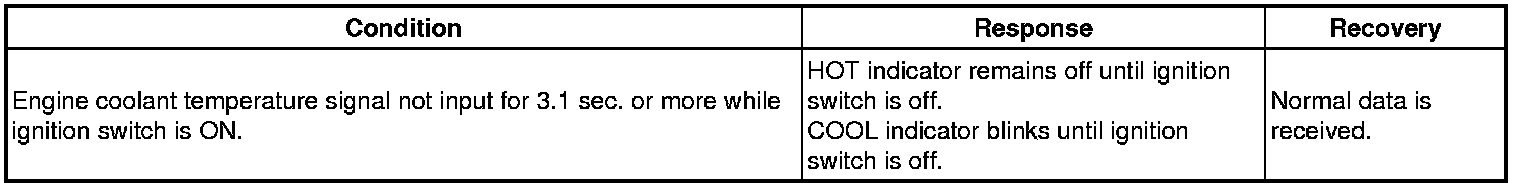

COOL, HOT:

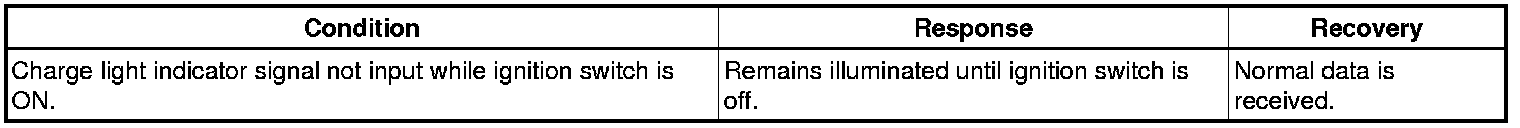

CHARGE:

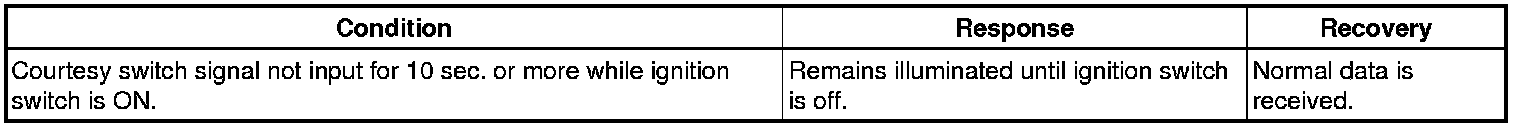

DOOR:

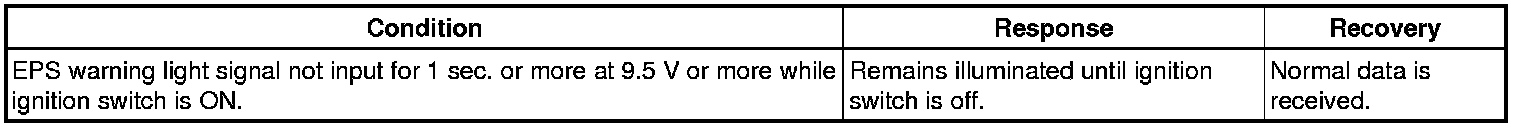

EPS:

VSC OFF:

SLIP:

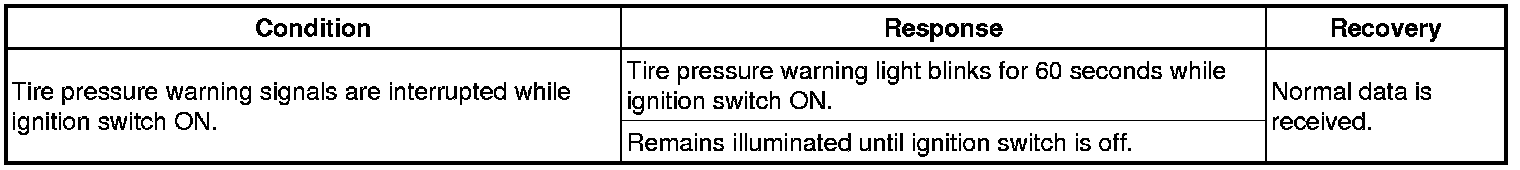

TIRE PRESSURE:

WASHER:

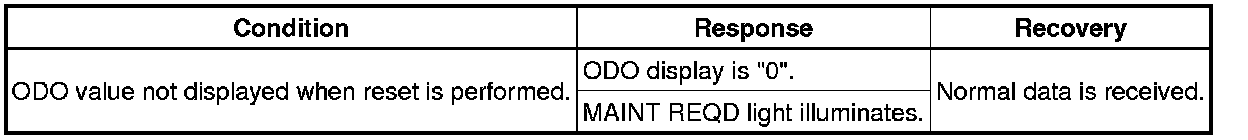

MAINT REQD:

CRUISE:

TRAC OFF:
